136X3162

Part Number: 136X3162
136X3162
Manufacturer
Danfoss
Part number
136X3162
Category

Product Information

Extended Description

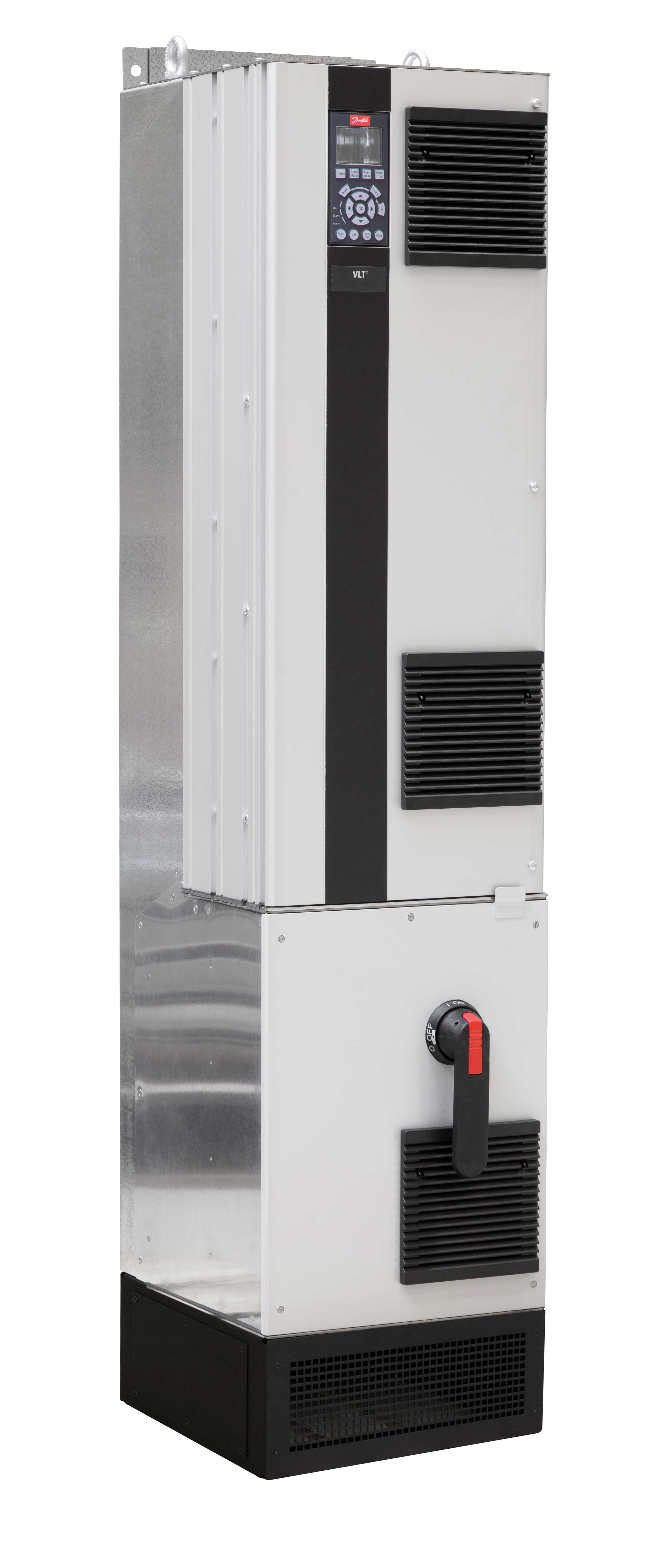

136X3162 Danfoss: Frequency converterFC-302N160T5E54H4RXC3XXSXXXXAXBXCXXXXDXVLT=C2=AE AutomationDrive FC-302(N160) 160 KW / 250 HP, Three phase380 - 500 VAC, (E54) IP54 / Type 12RFI class A1 (C2)Regen TerminalsNo Loc. Cont. PanelCoated PCB, Mains Disconnect + FuseLatest release std. SW.Frame: D7HNo C1 option, No D optionNo A Option, No B OptionOther options according to Model code
Gross weight
225.3 kg
Net weight
225 kg
Volume
0 l
EAN
5714853112555
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE AutomationDrive FC-
Series
302 : 302
Power Rating
N160 : (N160) 160 KW / 250 HP
Phase
T : Three phase
Mains Voltage
5 : 380 - 500 VAC
Enclosure
E54 : (E54) IP54 / Type 12
RFI Filter
H4 : RFI class A1 (C2)
Brake - Safe Stop
R : Regen Terminals
LCP
X : No Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
3 : Mains Disconnect + Fuse
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
D7H : D7H
Typecode Part 1
FC-302N160T5E54H4RXC
Typecode Part 2
3XXSXXXXAXBXCXXXXDX
Product Catalog
NO_VIEW : NO VIEW
Power 150% (HO) [KW]
160
Power 110% (NO) [KW]
200
Height [mm]
1978,0
Width w/ no C options [mm]
420,0
Depth [mm]
386,0
Depth with Option A/B [mm]
386,0
kVA
218
Continuous Current (NO) [A]
395
Intermittent Current (NO) [A]
435
Continuous Current (HO) [A]
315
Intermittent Current (HO) [A]
472
Calculated Gross Weight [kg]
200.3
Calculated Net Weight [kg]
200
ECCN EU
Y901
ECCN US
3A999.a
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-302N160T5E54H4RXC
Modelcode02
3XXSXXXXAXBXCXXXXDX
Recommended Plant
ERR01
176F3539
kit,pedestal,200mm,d7h d8h
176F6343
VLT=C2=AE Mains Shield Kit D7H Framesize
130B7635
VLT=C2=AE Lift Controller MCO 361
130B7145
VLT=C2=AE SALT Controller MCO 360
130B5646
VLT=C2=AE EtherCAT MCA 124, coated
130B1235
VLT=C2=AE PROFINET MCA 120, coated
130B1234
VLT=C2=AE Motion Control MCO 305, coated
130B1245
VLT=C2=AE PROFIBUS Converter MCA 113, ctd
130B1227
VLT=C2=AE Resolver Input MCB 103, coated
130B1220
VLT=C2=AE Safe PLC I/O MCB 108, coated
130R1153
DrivePro ExWarr Work Shop PG06 42 Month
130R1156
DrivePro ExWarr Work Shop PG06 60 Month
130R1152
DrivePro ExWarr Work Shop PG06 36 Month
130R1154
DrivePro ExWarr Work Shop PG06 48 Month
130R1155
DrivePro ExWarr Work Shop PG06 54 Month
130R1151
DrivePro ExWarr Work Shop PG06 30 Month
130R1150
DrivePro ExWarr Work Shop PG06 24 Month
130R1157
DrivePro ExWarr Work Shop PG06 66 Month
130R1158
DrivePro ExWarr Work Shop PG06 72 Month
130R1057
DrivePro ExWarr Onsite PG06 66 Months
Encoder-less Safety using DOLD Module VLT drives with integrated CBM VLT Integrated Motion Controller Appl G. VLT=C2=AE Drives Motor overload protection VLT AutomationDrive FC 301-302, VLT Decentral Drive FCD 302 SG VLT=C2=AE Advanced Harmonic Filter AHF005-010 VLT=C2=AE AutomationDrive FC 302, 90-710 kW VLT=C2=AE FC Series Output Filter Design G. Control Card VLT=C2=AE FC Series Current Sensor Cylinder Busbar Kit Danfoss MD 00779152 B2 SASO KSA R-205899 UL E236048 UL E70524 KC R-R-Ddk FC302 PSL File Danfoss 24899 PSL-File Danfoss-24800 Danfoss EU-UK 00730217 A10 Danfoss EU-UK 00730264 A5 Danfoss EU-UK 00730297 A6 VLT_D7h_IP21-54_DIS VLT_D7h_IP21-54 130B1107_E-plan MCAD FC D7h 177r0492 Remote_LCP_holder 130B1117_Eplan VLT=C2=AE Drives EtherNet/IP EDS VLT=C2=AE AutomationDrive Support File VLT=C2=AE Motion Control Tool MCT31 VLT=C2=AE AutomationDrive FC 301 Simulator VLT=C2=AE AutomationDrive FC 302 Simulator VLT=C2=AE EtherNet/IP Add-on Instructions VLT=C2=AE Drives DeviceNet EDS VLT=C2=AE MCA101 PROFIBUS GSD VLT=C2=AE MCA120 PROFINET GSDML VLT=C2=AE MCA123 POWERLINK XDD
