Part Number: 136X3295
136X3295
Manufacturer
Danfoss
Part number
136X3295
Category

Product Information

Extended Description

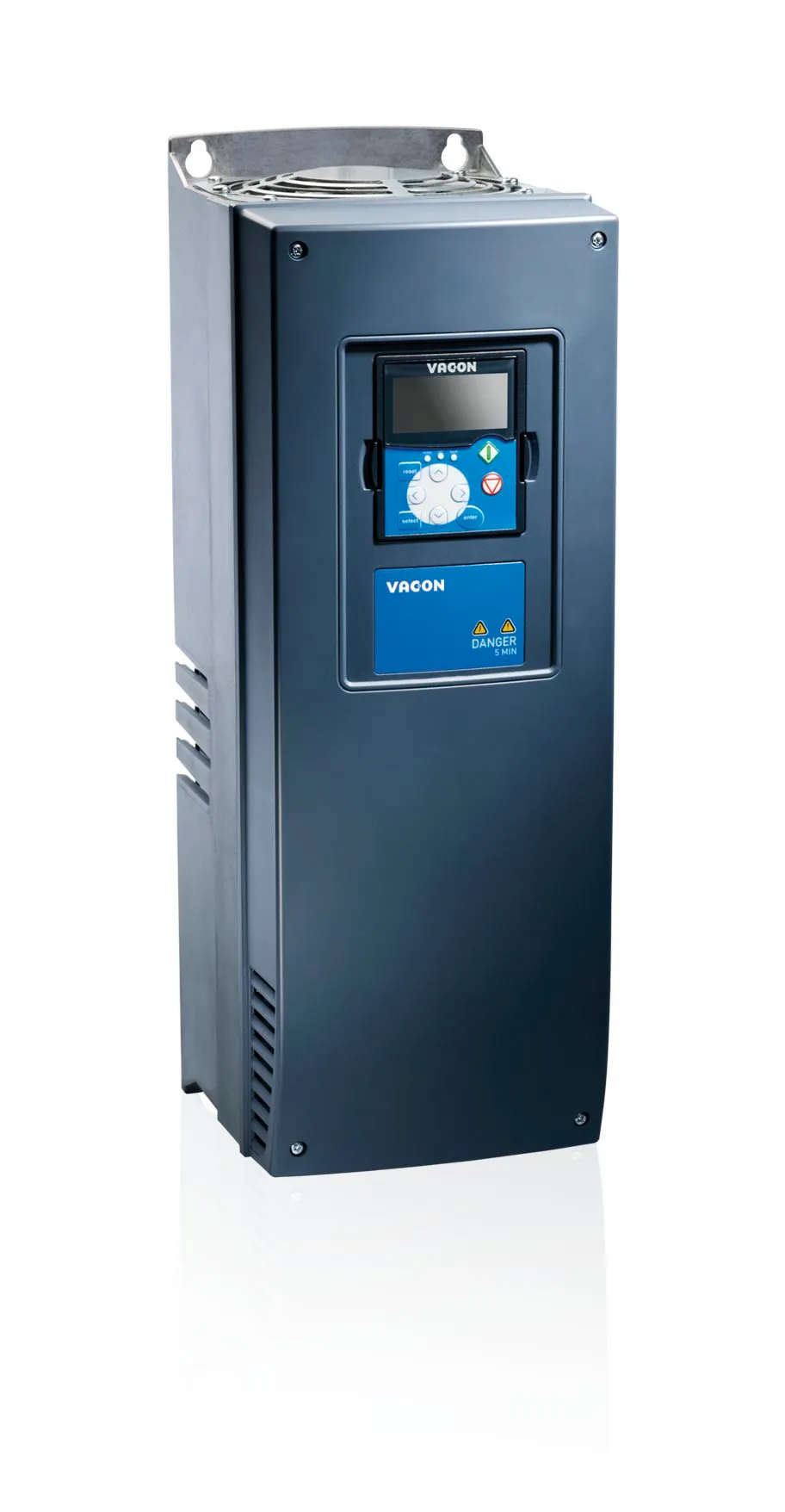

136X3295 Danfoss: NXP00385-A2H1SSV-A1B1B4B4E5Vacon NXP Frequency Converter380 =E2=80=93 500 Vac (465-800 Vdc), 38 Amp,IP21/NEMA1Alpha-numeric displayIEC61800-3Integrated Brake chopperA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 6 programmableDI/DOC Slot: AI,2AO(mA,isol),+24V/EXTD Slot: AI,2AO(mA,isol),+24V/EXTE Slot: PROFIBUS DP with Sub-D9Manual: EnglishFrame 06Other options according to Model code
Gross weight
19.5 kg
Net weight
18.5 kg
Volume
0 l
EAN
5714853114993
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXP : NXP Frequency Converter
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
5- : 380 =E2=80=93 500 Vac (465-800 Vdc)
Current
0038 : 38 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
2 : IP21/NEMA1
EMC emission levels
H : IEC61800-3
Brake Chopper
1 : Integrated Brake chopper
Electrical Modification
S : 6-pulse with choke
Card Modifications
V- : DirectConn. w Varnished Boards
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGLC : Inch conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
B1 : 6 programmableDI/DO
Option Slot C
B4 : AI,2AO(mA,isol),+24V/EXT
Option Slot D
B4 : AI,2AO(mA,isol),+24V/EXT
Option Slot E
E5 : PROFIBUS DP with Sub-D9
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DQCK : Quick guide user manual
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+A000 : No Special Application
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FR06 : Frame 06
Power rating
18K : 18.5 kW/25 HP
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DP-003852
Typecode Part 2
-000015047
Salestext
FR0600385-2H
Modelcode01
NXP00385-A2H1SSV-
Modelcode02
A1B1B4B4E5
Calculated Net Weight [kg]
18.5
Calculated Gross Weight [kg]
19.5
Motor Power Low Overload [kW]
18.5
Motor Power High Overload [kW]
15
Dimensions WxHxD [mm]
195X557X237
Continuous Current (NO) [A]
38
Continuous Current (HO) [A]
31
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stockcode part 1
7DP-003852-1183LM
Stock Code
7DP-003852
check if complete
OK
Calculated Net Weight
18.5
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
Recommended Plant
ERR01
181B1558
Insulator chassis right
181B1557
Insulator PCB left
181B1562
Control box assembly NX light blue
181B1752
Power board insulator
181B1639
"Terminal connector R-, R+"
181B1638
Terminal connector 23-21
181B1636
M6x12 ISO7380 Z4-1 TX ZN
181B1635
M10 Sesko SFS 3738 KP 250
181B1634
M10 Spring washer DIN 679
181B1633
M4x8 DIN 84 PA 1000pcs
181B0325
OPT-E3-V:PROFIBUS DP
181B1930
OPT-A1-V+DNOT:6DI,DO,2AI,1AO,+10Vr,+24V
181B0586
OPT-E7-V:DeviceNet
181B0287
OPT-A1-V:6DI,DO,2AI,1AO,+10Vr,+24V
181B0761
OPT-EC-V:EtherCAT
181B3287
OPT-EA-V:Advanced 2-port ethernet
181B1468
OPT-A2-V+DNOT:2RO(NO/NC)
181B1469
OPT-A4-V+DLES:3DI (Enc.RS422), +5V/+15V
181B1470
OPT-A5-V+DLES:3DI(Enc.10-24V),15/24Vout
181B1471
OPT-AN-V+DNOT:6DI,2AI,2AO,10/-10Vref,24V
130R1131
DrivePro ExWarr Work Shop PG04 30 Month
130R1134
DrivePro ExWarr Work Shop PG04 48 Month
130R1135
DrivePro ExWarr Work Shop PG04 54 Month
130R1137
DrivePro ExWarr Work Shop PG04 66 Month
130R1138
DrivePro ExWarr Work Shop PG04 72 Month
130R1136
DrivePro ExWarr Work Shop PG04 60 Month
130R1130
DrivePro ExWarr Work Shop PG04 24 Month
130R1132
DrivePro ExWarr Work Shop PG04 36 Month
130R1133
DrivePro ExWarr Work Shop PG04 42 Month
130R1034
DrivePro ExWarr Onsite PG04 48 Months
