Part Number: 136X3437
136X3437
Manufacturer
Danfoss
Part number
136X3437
Category

Product Information

Extended Description

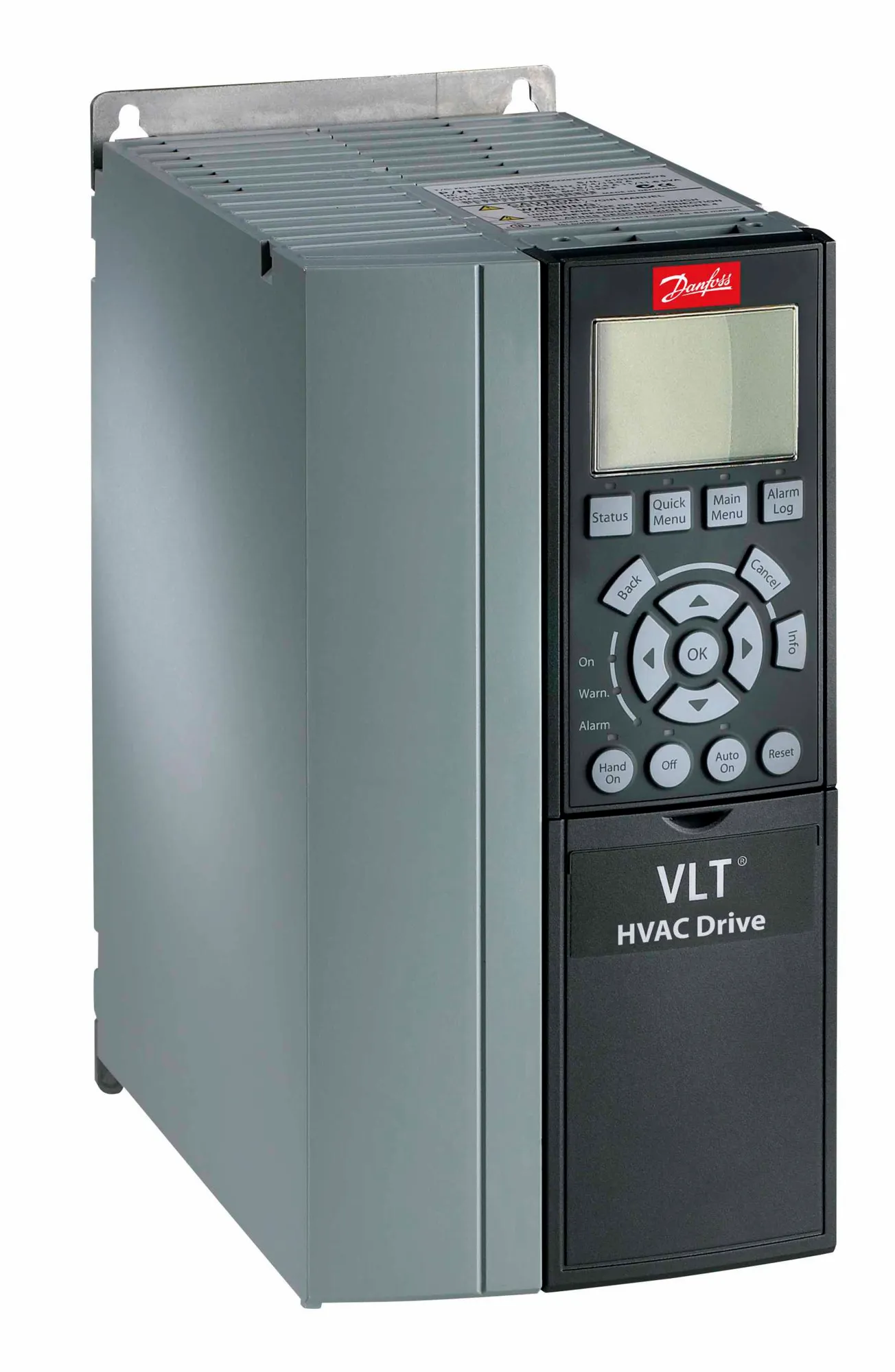

136X3437 Danfoss: Frequency ConverterFC-102P7K5T4E20H2XGCXXXSXXXXAXB4CXXXXDXVLT=C2=AE HVAC Drive FC-102(P7K5) 7.5 KW / 10 HP, Three phase380 - 480 VAC, (E20) IP20 / ChassisRFI FilterNo brake chopperGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: A3No C1 option, No D optionNo A Option, MCB-114 VLT Sensor InputOther options according to Model Code
Gross weight
6.9 kg
Net weight
6.6 kg
Volume
27.246 l
EAN
5714853116515
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
P7K5 : (P7K5) 7.5 KW / 10 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H2 : RFI Filter
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
B4 : MCB-114 VLT Sensor Input
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
A3 : A3
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102P7K5T4E20H2XGC
Typecode Part 2
XXXSXXXXAXB4CXXXXDX
Power 110% (NO) [KW]
7.5
Height [mm]
268,0
Width w/ no C options [mm]
130,0
Width w/ two C options [mm]
190,0
Depth [mm]
205,0
Depth with Option A/B [mm]
220,0
kVA
11.1
Power Loss NO [W]
255
Continuous Current (NO) [A]
16
Intermittent Current (NO) [A]
17.6
Calculated Gross Weight [kg]
7.3
Calculated Net Weight [kg]
7
ECCN EU
Y901
ECCN US
3A999.a
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102P7K5T4E20H2XGC
Modelcode02
XXXSXXXXAXB4CXXXXDX
Recommended Plant
ERR01
130B7531
Mounting Kit f. C Option, 60mm, A2/A3
130B7530
Mounting Kit f. C Option, 40mm, A2/A3
130B7401
NEMA 1 Conversion Kit, Top, 10 pcs, A3
130B5645
Leakage Current Monitor Kit, A2, A3
130B1235
VLT=C2=AE PROFINET MCA 120, coated
130B1219
VLT=C2=AE EtherNet IP MCA 121, coated
130B1170
LCP Panel Mounting Kit
130B1208
1xMCB 107 24V DC coat w. mount. brackets
130B1202
VLT=C2=AE DeviceNet MCA 104, coated
130B1200
VLT=C2=AE Profibus DP V1 MCA 101, coated
131F3239
FC-102P7K5T4E20H1UGCXXXSXXXXAXBXCXXXXDX
130R1121
DrivePro ExWarr Work Shop PG03 30 Month
130R1120
DrivePro ExWarr Work Shop PG03 24 Month
130R1122
DrivePro ExWarr Work Shop PG03 36 Month
130R1123
DrivePro ExWarr Work Shop PG03 42 Month
130R1126
DrivePro ExWarr Work Shop PG03 60 Month
130R1125
DrivePro ExWarr Work Shop PG03 54 Month
130R1124
DrivePro ExWarr Work Shop PG03 48 Month
130R1127
DrivePro ExWarr Work Shop PG03 66 Month
130R1128
DrivePro ExWarr Work Shop PG03 72 Month
