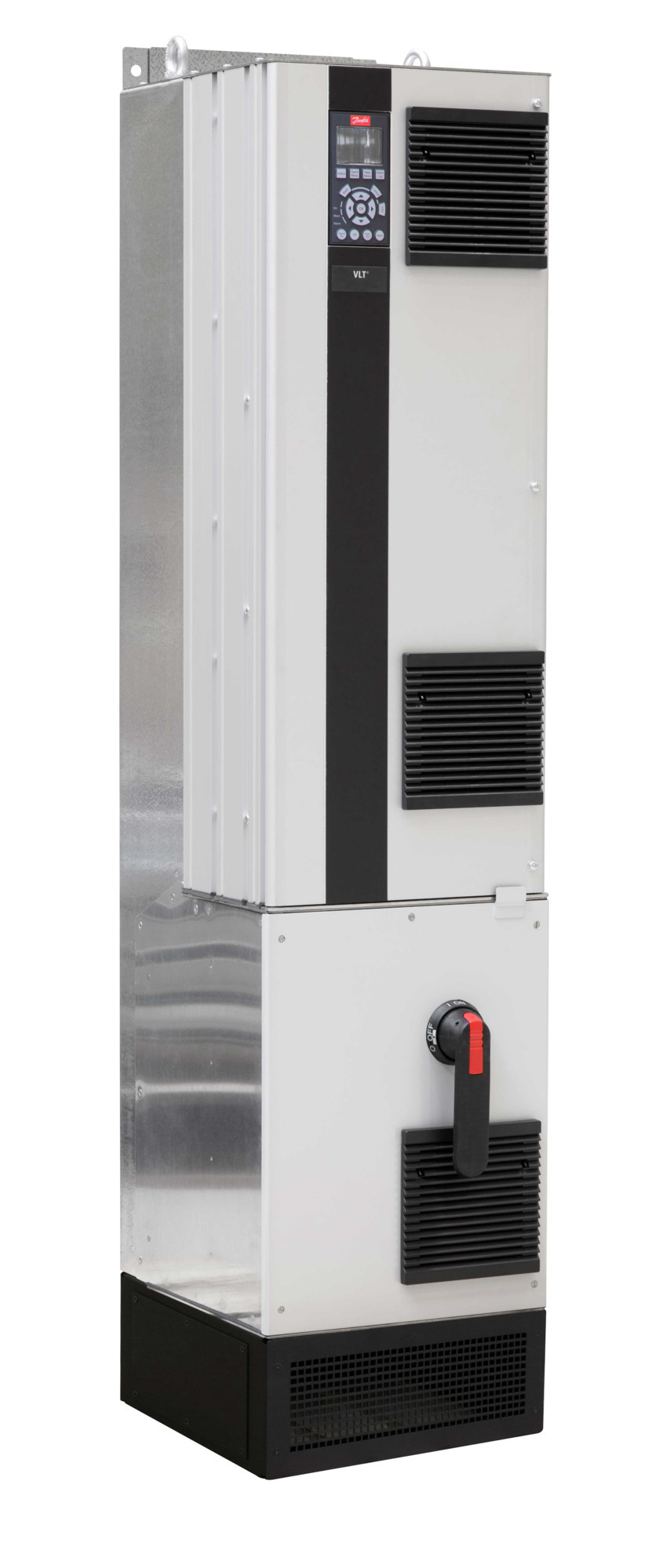

136X4183
Part Number: 136X4183
Product Information
Extended Description
136X4183 Danfoss: Frequency converterFC-302N250T7E21H2RXC7XXSXXXXAXBXCXXXXDXVLT=C2=AE AutomationDrive FC-302(N250) 250 KW / 350 HP, Three phase525 - 690 VAC *, IP21 / Type 1RFI FilterRegen TerminalsNo Loc. Cont. PanelCoated PCB, FuseLatest release std. SW.Frame: D7HNo C1 option, No D optionNo A Option, No B OptionOther options according to Model code
Gross weight
225.3 kg
Net weight
225 kg
Volume
0 l
EAN
5714853123995
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE AutomationDrive FC-
Series
302 : 302
Power Rating
N250 : (N250) 250 KW / 350 HP
Phase
T : Three phase
Mains Voltage
7 : 525 - 690 VAC *
Possible rating issue
WARN01 : Possible Rating Issue:
Enclosure
E21 : IP21 / Type 1
RFI Filter
H2 : RFI Filter
Brake - Safe Stop
R : Regen Terminals
LCP
X : No Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
7 : Fuse
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
D7H : D7H
Typecode Part 1
FC-302N250T7E21H2RXC
Typecode Part 2
7XXSXXXXAXBXCXXXXDX
Product Catalog
NO_VIEW : NO VIEW
Power 150% (HO) [KW]
250
Power 110% (NO) [KW]
315
Height [mm]
1978,0
Width w/ no C options [mm]
420,0
Depth [mm]
386,0
Depth with Option A/B [mm]
386,0
kVA
347
Power Loss NO [W]
4465
Power Loss HO [W]
3642
Continuous Current (NO) [A]
360
Intermittent Current (NO) [A]
396
Continuous Current (HO) [A]
303
Intermittent Current (HO) [A]
454
Calculated Gross Weight [kg]
200.3
Calculated Net Weight [kg]
200
ECCN EU
Y901
ECCN US
3A999.a
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-302N250T7E21H2RXC
Modelcode02
7XXSXXXXAXBXCXXXXDX
Recommended Plant
ERR01
