136X4600

Part Number: 136X4600
136X4600
Manufacturer
Danfoss
Part number
136X4600
Category

Product Information

Extended Description

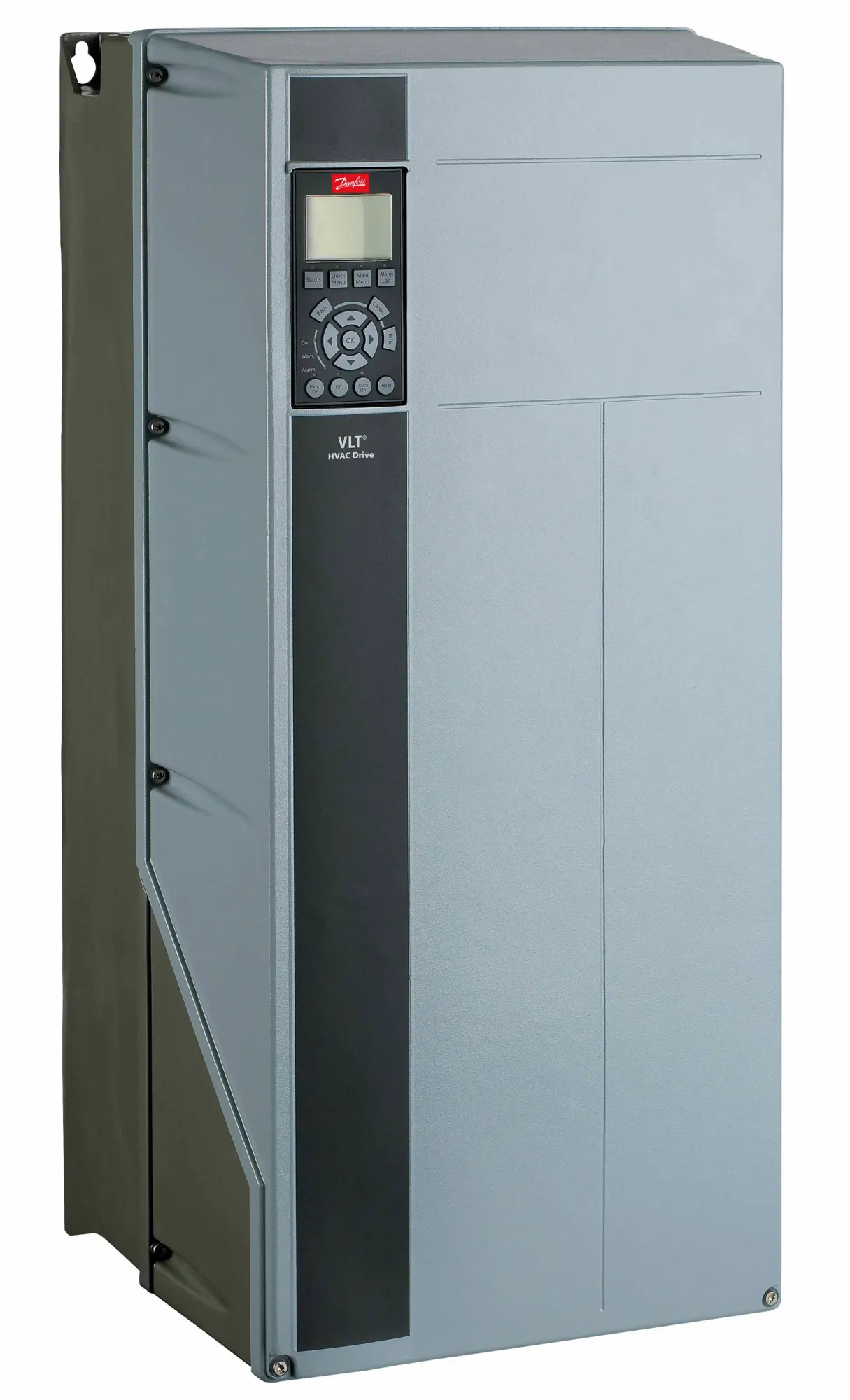

136X4600 Danfoss: Frequency converterFC-302P30KT7E21H2BXCDXXSXXXXAXBXCXXXXDXVLT=C2=AE AutomationDrive FC-302(P30K) 30 KW / 40 HP, Three phase525 - 690 VAC *, IP21 / Type 1RFI FilterBrake chopperNo Loc. Cont. PanelCoated PCB, LoadsharingLatest release std. SW.Frame: C2No C1 option, No D optionNo A Option, No B OptionOther options according to Model code
Gross weight
56.04 kg
Net weight
54.2 kg
Volume
0 l
EAN
5714853128242
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE AutomationDrive FC-
Series
302 : 302
Power Rating
P30K : (P30K) 30 KW / 40 HP
Phase
T : Three phase
Mains Voltage
7 : 525 - 690 VAC *
Possible rating issue
WARN01 : Possible Rating Issue:
Enclosure
E21 : IP21 / Type 1
RFI Filter
H2 : RFI Filter
Brake - Safe Stop
B : Brake chopper
LCP
X : No Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
D : Loadsharing
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
C2 : C2
Typecode Part 1
FC-302P30KT7E21H2BXC
Typecode Part 2
DXXSXXXXAXBXCXXXXDX
Product Catalog
NO_VIEW : NO VIEW
Power 150% (HO) [KW]
30
Power 110% (NO) [KW]
37
Height [mm]
780,0
Width w/ no C options [mm]
370,0
Depth [mm]
332,0
Depth with Option A/B [mm]
332,0
kVA
40.6
Power Loss NO [W]
740
Power Loss HO [W]
600
Continuous Current (NO) [A]
43
Intermittent Current (NO) [A]
47.3
Continuous Current (HO) [A]
36
Intermittent Current (HO) [A]
54
Calculated Gross Weight [kg]
56.04
Calculated Net Weight [kg]
54.2
ECCN EU
Y901
ECCN US
3A999.a
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-302P30KT7E21H2BXC
Modelcode02
DXXSXXXXAXBXCXXXXDX
Recommended Plant
ERR01
130B3290
VLT=C2=AE Safe option MCB 151, coated
130B3280
VLT=C2=AE Safe option MCB 150, coated
130B4597
Weather shield f. outdoor instl. C1, C2
130B3911
Back plate IP21/Type 1, IP55/Type 12, C2
130B7533
Mounting Kit C Option, B/C/D/E/F(not B3)
130B7635
VLT=C2=AE Lift Controller MCO 361
130B7145
VLT=C2=AE SALT Controller MCO 360
130B9860
VLT=C2=AE Safety Option MCB152, coated
130B5646
VLT=C2=AE EtherCAT MCA 124, coated
130B5436
Side Fixture Mounting Kit
130R1140
DrivePro ExWarr Work Shop PG05 24 Month
130R1141
DrivePro ExWarr Work Shop PG05 30 Month
130R1142
DrivePro ExWarr Work Shop PG05 36 Month
130R1144
DrivePro ExWarr Work Shop PG05 48 Month
130R1145
DrivePro ExWarr Work Shop PG05 54 Month
130R1143
DrivePro ExWarr Work Shop PG05 42 Month
130R1147
DrivePro ExWarr Work Shop PG05 66 Month
130R1148
DrivePro ExWarr Work Shop PG05 72 Month
130R1146
DrivePro ExWarr Work Shop PG05 60 Month
130R1044
DrivePro ExWarr Onsite PG05 48 Months
Encoder-less Safety using DOLD Module VLT drives with integrated CBM VLT Integrated Motion Controller Appl G. VLT=C2=AE Drives Motor overload protection VLT AutomationDrive FC 301-302, VLT Decentral Drive FCD 302 SG VLT=C2=AE Advanced Harmonic Filter AHF005-010 VLT=C2=AE AutomationDrive FC301-302 0.25-75kW VLT=C2=AE Brake Resistor MCE 101 VLT=C2=AE FC Series Output Filter Design G. Control Card VLT=C2=AE FC Series Danfoss MD 00779152 B2 SASO KSA R-205899 UL E236048 UL E70524 KC R-R-Ddk FC302 PSL File Danfoss 24899 PSL-File Danfoss-24800 Danfoss EU-UK 00730217 A10 Danfoss EU-UK 00730264 A5 Danfoss EU-UK 00730297 A6 VLT_C2_IP21-55-66 MCAD FC C2 IP21 130B1107_E-plan 176U8480 - Mechanical Submittal Drawing Wiring Schematic FC 103, FC 302 MCAD FC C1 C2 Roof Remote_LCP_holder MCAD FC C2 IP55 Back plate 130B1117_Eplan MCAD FC C1 C2 Roof bracket VLT=C2=AE Drives EtherNet/IP EDS VLT=C2=AE AutomationDrive Support File VLT=C2=AE Motion Control Tool MCT31 VLT=C2=AE AutomationDrive FC 301 Simulator VLT=C2=AE AutomationDrive FC 302 Simulator VLT=C2=AE EtherNet/IP Add-on Instructions VLT=C2=AE Drives DeviceNet EDS VLT=C2=AE MCA101 PROFIBUS GSD VLT=C2=AE MCA120 PROFINET GSDML VLT=C2=AE MCA123 POWERLINK XDD
