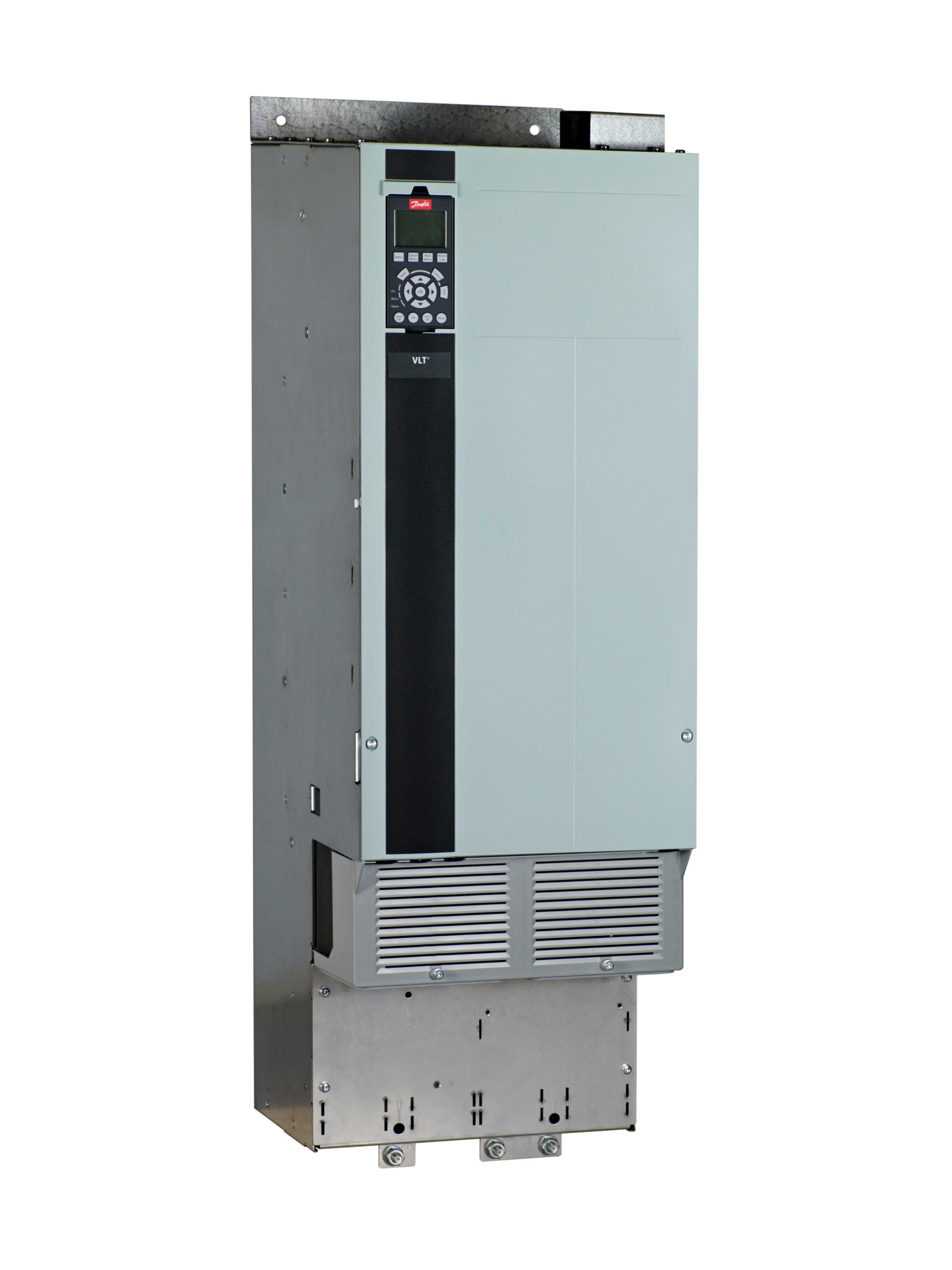

136X9967

Part Number: 136X9967
136X9967
Manufacturer
Danfoss
Part number
136X9967
Category

Product Information

Extended Description

136X9967 Danfoss: Frequency converterFC-302N110T7E20H2BGCDXXSXXXXAXBXCXXXXDXVLT=C2=AE AutomationDrive FC-302(N110) 110 KW / 150 HP, Three phase525 - 690 VAC *, (E20) IP20 / ChassisRFI FilterBrake chopperGraphical Loc. Cont. PanelCoated PCB, LoadsharingLatest release std. SW.Frame: D3HNo C1 option, No D optionNo A Option, No B OptionOther options according to Model code
Gross weight
62.3 kg
Net weight
62 kg
Volume
0 l
EAN
5714853185771
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE AutomationDrive FC-
Series
302 : 302
Power Rating
N110 : (N110) 110 KW / 150 HP
Phase
T : Three phase
Mains Voltage
7 : 525 - 690 VAC *
Possible rating issue
WARN01 : Possible Rating Issue:
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H2 : RFI Filter
Brake - Safe Stop
B : Brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
D : Loadsharing
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
D3H : D3H
Typecode Part 1
FC-302N110T7E20H2BGC
Typecode Part 2
DXXSXXXXAXBXCXXXXDX
Product Catalog
NO_VIEW : NO VIEW
Power 150% (HO) [KW]
110
Power 110% (NO) [KW]
132
Height [mm]
909,0
Height w/ Regen/Loadshare [mm]
1004,0
Width w/ no C options [mm]
250,0
Depth [mm]
375,0
Depth with Option A/B [mm]
375,0
kVA
157
Power Loss NO [W]
2101
Power Loss HO [W]
1742
Continuous Current (NO) [A]
162
Intermittent Current (NO) [A]
178
Continuous Current (HO) [A]
137
Intermittent Current (HO) [A]
206
Calculated Gross Weight [kg]
62.3
Calculated Net Weight [kg]
62
ECCN EU
Y901
ECCN US
3A999.a
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-302N110T7E20H2BGC
Modelcode02
DXXSXXXXAXBXCXXXXDX
Recommended Plant
ERR01
176F3627
Cooling Kit, in btm/ out top, 1800, D3h
176F3625
Cooling Kit, in back/ out back, D3h
176F3654
Cooling Kit, in back/out back, SS, D3h
176F3648
Cooling Kit, in back/out back, D1h
176F3633
Cooling Kit, in back/out back, D3h
176F3629
Cooling Kit, in btm/out top, 2000mm, D3h
176F3409
Adapter Plate, D1h/D3h
130B7635
VLT=C2=AE Lift Controller MCO 361
130B7145
VLT=C2=AE SALT Controller MCO 360
130B5646
VLT=C2=AE EtherCAT MCA 124, coated
134H3266
FC-302N132T7E20H2BGR7XXSXXXXAXBXCXXXXDX
130R1153
DrivePro ExWarr Work Shop PG06 42 Month
130R1156
DrivePro ExWarr Work Shop PG06 60 Month
130R1152
DrivePro ExWarr Work Shop PG06 36 Month
130R1154
DrivePro ExWarr Work Shop PG06 48 Month
130R1155
DrivePro ExWarr Work Shop PG06 54 Month
130R1151
DrivePro ExWarr Work Shop PG06 30 Month
130R1150
DrivePro ExWarr Work Shop PG06 24 Month
130R1157
DrivePro ExWarr Work Shop PG06 66 Month
130R1158
DrivePro ExWarr Work Shop PG06 72 Month
