136Z0024

Part Number: 136Z0024
136Z0024
Manufacturer
Danfoss
Part number
136Z0024
Category

Product Information

Extended Description

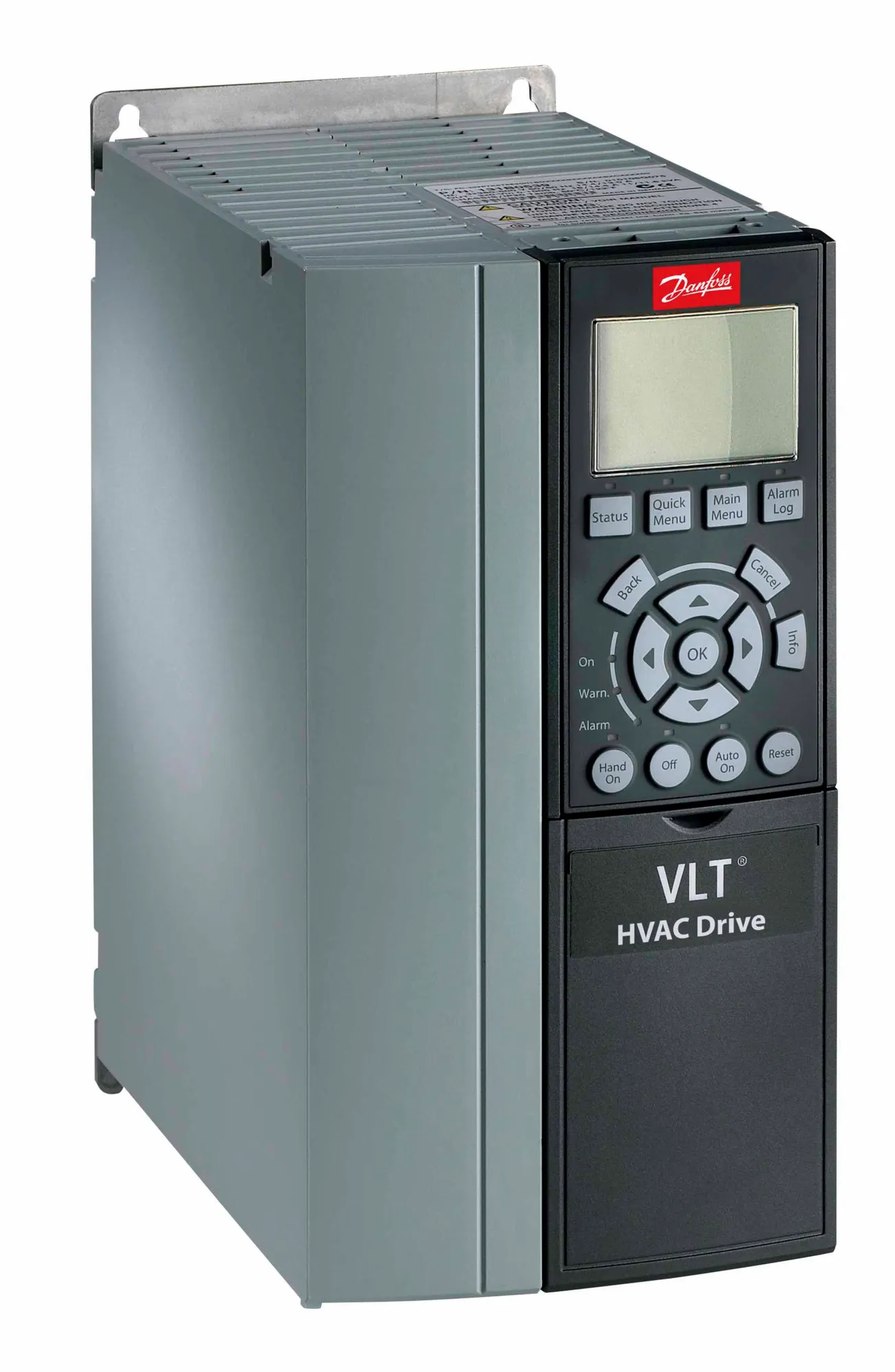

136Z0024 Danfoss: Frequency converterFC-302P5K5T5E20H2BNCXXXSXXXXAXBXC4X10DXVLT=C2=AE AutomationDrive FC-302(P5K5) 5.5 KW / 7.5 HP, Three phase380 - 500 VAC, (E20) IP20 / ChassisRFI FilterBrake chopperNumerical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: A3No C1 option, No D optionNo A Option, No B OptionOther options according to Model code
Gross weight
7.72 kg
Net weight
7.19 kg
Volume
32.922 l
EAN
5714853186860
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE AutomationDrive FC-
Series
302 : 302
Power Rating
P5K5 : (P5K5) 5.5 KW / 7.5 HP
Phase
T : Three phase
Mains Voltage
5 : 380 - 500 VAC
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H2 : RFI Filter
Brake - Safe Stop
B : Brake chopper
LCP
N : Numerical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BX : No B Option
C0 Option MCO
C4 : MCO-305 ( SyncPos)
C1 Option
X : No C1 option
C Option Software
10 : Synchronizing control
D Option
DX : No D option
Frame Size
A3 : A3
Typecode Part 1
FC-302P5K5T5E20H2BNC
Typecode Part 2
XXXSXXXXAXBXC4X10DX
Product Catalog
NO_VIEW : NO VIEW
Power 160% (HO) [KW]
5.5
Height [mm]
268,0
Width w/ no C options [mm]
130,0
Width w/ two C options [mm]
190,0
Depth [mm]
205,0
Depth with Option A/B [mm]
220,0
kVA
9.01
Power Loss HO [W]
187
Continuous Current (HO) [A]
13
Intermittent Current (HO) [A]
20.8
Calculated Gross Weight [kg]
7.72
Calculated Net Weight [kg]
7.19
ECCN EU
Y901
ECCN US
3A999.a
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-302P5K5T5E20H2BNC
Modelcode02
XXXSXXXXAXBXC4X10DX
Recommended Plant
ERR01
130B3290
VLT=C2=AE Safe option MCB 151, coated
130B3280
VLT=C2=AE Safe option MCB 150, coated
130B7535
Accessory Bag, MCO 305
130B7531
Mounting Kit f. C Option, 60mm, A2/A3
130B7530
Mounting Kit f. C Option, 40mm, A2/A3
130B7401
NEMA 1 Conversion Kit, Top, 10 pcs, A3
130B9860
VLT=C2=AE Safety Option MCB152, coated
130B5646
VLT=C2=AE EtherCAT MCA 124, coated
130B5645
Leakage Current Monitor Kit, A2, A3
130B1235
VLT=C2=AE PROFINET MCA 120, coated
131B0052
FC-302P7K5T5E20H1BGXXXXSXXXXAXBXCXXXXDX
130R1121
DrivePro ExWarr Work Shop PG03 30 Month
130R1120
DrivePro ExWarr Work Shop PG03 24 Month
130R1122
DrivePro ExWarr Work Shop PG03 36 Month
130R1123
DrivePro ExWarr Work Shop PG03 42 Month
130R1126
DrivePro ExWarr Work Shop PG03 60 Month
130R1125
DrivePro ExWarr Work Shop PG03 54 Month
130R1124
DrivePro ExWarr Work Shop PG03 48 Month
130R1127
DrivePro ExWarr Work Shop PG03 66 Month
130R1128
DrivePro ExWarr Work Shop PG03 72 Month
