136Z0337

Part Number: 136Z0337
136Z0337
Manufacturer
Danfoss
Part number
136Z0337
Category

Product Information

Extended Description

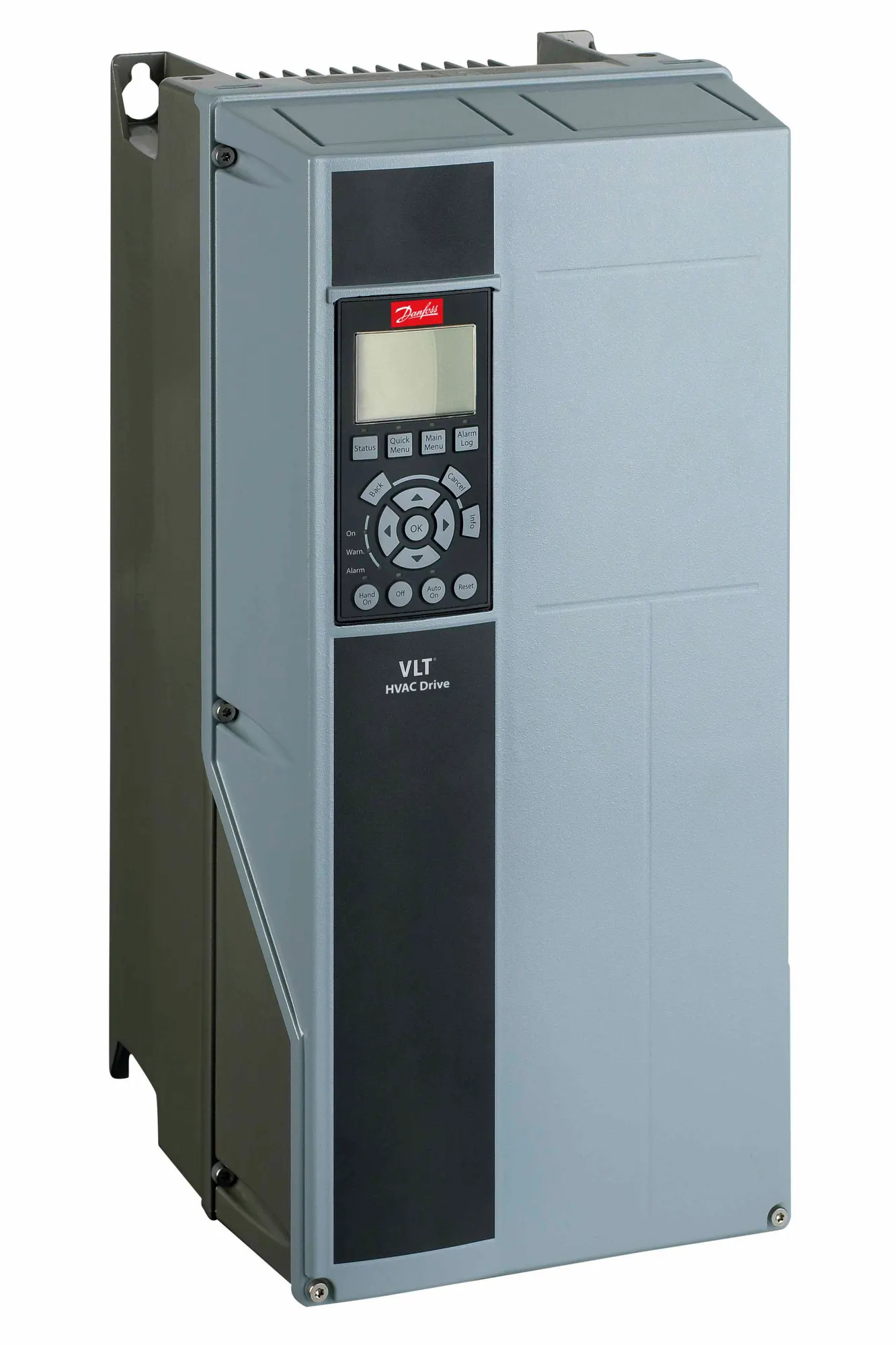

136Z0337 Danfoss: Frequency ConverterFC-102P11KT4E55H1XGCXXXSXXXXAXB0CXXXXDXVLT=C2=AE HVAC Drive FC-102(P11K) 11 KW / 15 HP, Three phase380 - 480 VAC, IP55 / Type 12(H1) RFI Class A1/B (C1)No brake chopperGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: B1No C1 option, No D optionNo A Option, MCB-109 I/O, RTC Back-upOther options according to Model Code
Gross weight
23.3 kg
Net weight
23 kg
Volume
144.67 l
EAN
5714853189687
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
P11K : (P11K) 11 KW / 15 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E55 : IP55 / Type 12
RFI Filter
H1 : (H1) RFI Class A1/B (C1)
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
B0 : MCB-109 I/O, RTC Back-up
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
B1 : B1
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102P11KT4E55H1XGC
Typecode Part 2
XXXSXXXXAXB0CXXXXDX
Power 110% (NO) [KW]
11
Height [mm]
494,0
Width w/ no C options [mm]
243,0
Depth [mm]
261,0
Depth with Option A/B [mm]
261,0
kVA
16.6
Power Loss NO [W]
278
Continuous Current (NO) [A]
24
Intermittent Current (NO) [A]
26.4
Calculated Gross Weight [kg]
21.8
Calculated Net Weight [kg]
21.5
ECCN EU
Y901
ECCN US
3A999.a
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102P11KT4E55H1XGC
Modelcode02
XXXSXXXXAXB0CXXXXDX
Recommended Plant
ERR01
130B3383
Back plate IP21/Type 1, IP55/Type 12, B1
130B4598
Weather shield f. outdoor instl A4 to B2
130B7533
Mounting Kit C Option, B/C/D/E/F(not B3)
130B5436
Side Fixture Mounting Kit
130B5435
DIN Rail Mounting Kit
130B1235
VLT=C2=AE PROFINET MCA 120, coated
130B1219
VLT=C2=AE EtherNet IP MCA 121, coated
130B1170
LCP Panel Mounting Kit
130B1208
1xMCB 107 24V DC coat w. mount. brackets
130B1202
VLT=C2=AE DeviceNet MCA 104, coated
131F3243
FC-102P18KT4E55H1UGCXXXSXXXXAXBXCXXXXDX
130R1131
DrivePro ExWarr Work Shop PG04 30 Month
130R1134
DrivePro ExWarr Work Shop PG04 48 Month
130R1135
DrivePro ExWarr Work Shop PG04 54 Month
130R1137
DrivePro ExWarr Work Shop PG04 66 Month
130R1138
DrivePro ExWarr Work Shop PG04 72 Month
130R1136
DrivePro ExWarr Work Shop PG04 60 Month
130R1130
DrivePro ExWarr Work Shop PG04 24 Month
130R1132
DrivePro ExWarr Work Shop PG04 36 Month
130R1133
DrivePro ExWarr Work Shop PG04 42 Month
