136Z1096
Part Number: 136Z1096
Product Information
Extended Description

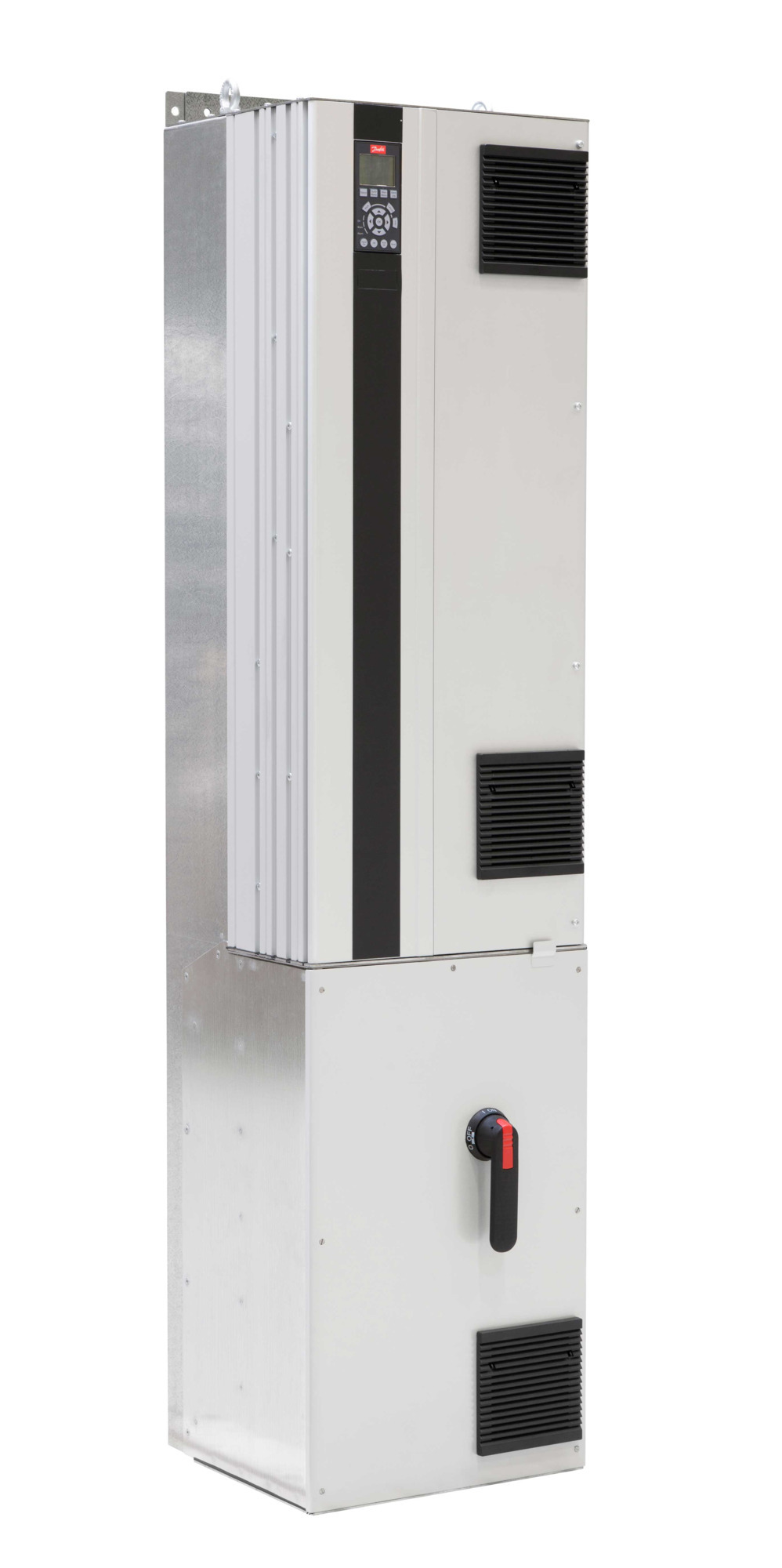

136Z1096 Danfoss: Frequency ConverterFC-102N160T4E54H4TGC3XXSXXXXALB0CXXXXDXVLT=C2=AE HVAC Drive FC-102(N160) 160 KW / 250 HP, Three phase380 - 480 VAC, (E54) IP54 / Type 12RFI class A1 (C2)Safe StopGraphical Loc. Cont. PanelCoated PCB, Mains Disconnect + FuseLatest release std. SW.Frame: D5HNo C1 option, No D optionPROFINET MCA 120, MCB-109 I/O, RTC Back-upOther options according to Model Code
Gross weight
142 kg
Net weight
102 kg
Volume
0 l
EAN
5714853199235
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
N160 : (N160) 160 KW / 250 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E54 : (E54) IP54 / Type 12
RFI Filter
H4 : RFI class A1 (C2)
Brake - Safe Stop
T : Safe Stop
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
3 : Mains Disconnect + Fuse
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AL : PROFINET MCA 120
B Option
B0 : MCB-109 I/O, RTC Back-up
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
D5H : D5H
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102N160T4E54H4TGC
Typecode Part 2
3XXSXXXXALB0CXXXXDX
Power 110% (NO) [KW]
160
Height [mm]
1324,0
Width w/ no C options [mm]
325,0
Depth [mm]
381,0
Depth with Option A/B [mm]
381,0
kVA
218
Power Loss NO [W]
3764
Continuous Current (NO) [A]
315
Intermittent Current (NO) [A]
346
Calculated Gross Weight [kg]
166.3
Calculated Net Weight [kg]
166
ECCN US
3A999
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102N160T4E54H4TGC
Modelcode02
3XXSXXXXALB0CXXXXDX
176F6341
VLT=C2=AE Mains Shield Kit D5H Framesize
130B1170
LCP Panel Mounting Kit
130B1208
1xMCB 107 24V DC coat w. mount. brackets
130B1135
VLT=C2=AE PROFINET MCA 120, uncoated
130B1124
VLT=C2=AE Control Panel LCP 101, numeric
130B1117
LCP Mounting Kit, w/ no LCP
130B1071
6 Pole Connector, FC series,10 pcs
130B1070
RS485 plug, FC series,10 pcs
175Z0929
LCP Cable, 3m
175U0009
Mounting bracket Kit, 216 x 30 x 18mm
130R1153
DrivePro ExWarr Work Shop PG06 42 Month
130R1156
DrivePro ExWarr Work Shop PG06 60 Month
130R1152
DrivePro ExWarr Work Shop PG06 36 Month
130R1154
DrivePro ExWarr Work Shop PG06 48 Month
130R1155
DrivePro ExWarr Work Shop PG06 54 Month
130R1151
DrivePro ExWarr Work Shop PG06 30 Month
130R1150
DrivePro ExWarr Work Shop PG06 24 Month
130R1157
DrivePro ExWarr Work Shop PG06 66 Month
130R1158
DrivePro ExWarr Work Shop PG06 72 Month
130R1057
DrivePro ExWarr Onsite PG06 66 Months
