136Z3643

Part Number: 136Z3643
136Z3643
Manufacturer
Danfoss
Part number
136Z3643
Category

Product Information

Extended Description

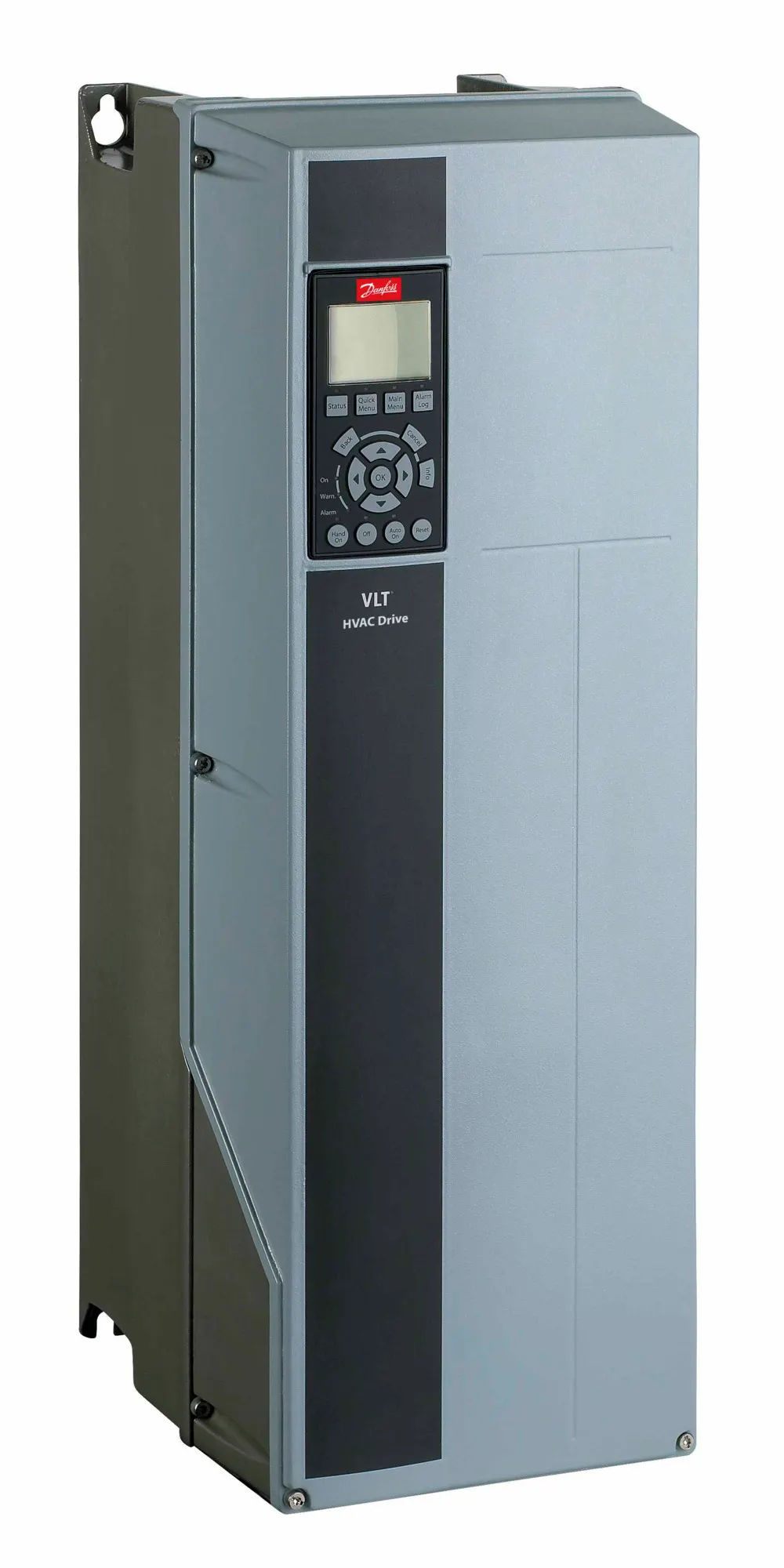

136Z3643 Danfoss: Frequency converterFC-302P15KT7P55H5XGCXOXSXXXXAXB2CXXXXD0VLT=C2=AE AutomationDrive FC-302(P15K) 15 KW / 20 HP, Three phase525 - 690 VAC *, IP55 / Type12 BackplateMarine,ruggedis RFI A2(C3)No brake chopperGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: B2No C1 option, MCB-107 24V DC backupNo A Option, MCB-112 PTC Therm. CardATEX: II (2) G [Ex eb Gb] [Exdb Gb] / II (2) D [Ex tb Db]Other options according to Model code
Gross weight
28.84 kg
Net weight
27.89 kg
Volume
144.67 l
EAN
5714853225873
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE AutomationDrive FC-
Series
302 : 302
Power Rating
P15K : (P15K) 15 KW / 20 HP
Phase
T : Three phase
Mains Voltage
7 : 525 - 690 VAC *
Possible rating issue
WARN01 : Possible Rating Issue:
Enclosure
P55 : IP55 / Type12 Backplate
RFI Filter
H5 : Marine,ruggedis RFI A2(C3)
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
X : No Mains Option
Adaptation A
O : Metric thread cable entry
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
B2 : MCB-112 PTC Therm. Card
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
D0 : MCB-107 24V DC backup
Frame Size
B2 : B2
Typecode Part 1
FC-302P15KT7P55H5XGC
Typecode Part 2
XOXSXXXXAXB2CXXXXD0
Product Catalog
NO_VIEW : NO VIEW
Power 160% (HO) [KW]
15
Power 110% (NO) [KW]
18.5
Height [mm]
664,0
Width w/ no C options [mm]
243,0
Depth [mm]
261,0
Depth with Option A/B [mm]
261,0
kVA
21.5
Power Loss NO [W]
300
Power Loss HO [W]
220
Continuous Current (NO) [A]
23
Intermittent Current (NO) [A]
25.3
Continuous Current (HO) [A]
19
Intermittent Current (HO) [A]
30.4
ATEX Marking 1
ATEX: II (2) G [Ex eb Gb] [Ex
ATEX Marking 2
db Gb] / II (2) D [Ex tb Db]
Calculated Gross Weight [kg]
28.84
Calculated Net Weight [kg]
27.89
ECCN EU
Y901
ECCN US
3A999.a
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-302P15KT7P55H5XGC
Modelcode02
XOXSXXXXAXB2CXXXXD0
Recommended Plant
ERR01
130B3290
VLT=C2=AE Safe option MCB 151, coated
130B3280
VLT=C2=AE Safe option MCB 150, coated
130B3397
Back plate IP21/Type 1, IP55/Type 12, B2
130B4598
Weather shield f. outdoor instl A4 to B2
130B7533
Mounting Kit C Option, B/C/D/E/F(not B3)
130B7635
VLT=C2=AE Lift Controller MCO 361
130B7145
VLT=C2=AE SALT Controller MCO 360
130B9860
VLT=C2=AE Safety Option MCB152, coated
130B5646
VLT=C2=AE EtherCAT MCA 124, coated
130B5436
Side Fixture Mounting Kit
130R1131
DrivePro ExWarr Work Shop PG04 30 Month
130R1134
DrivePro ExWarr Work Shop PG04 48 Month
130R1135
DrivePro ExWarr Work Shop PG04 54 Month
130R1137
DrivePro ExWarr Work Shop PG04 66 Month
130R1138
DrivePro ExWarr Work Shop PG04 72 Month
130R1136
DrivePro ExWarr Work Shop PG04 60 Month
130R1130
DrivePro ExWarr Work Shop PG04 24 Month
130R1132
DrivePro ExWarr Work Shop PG04 36 Month
130R1133
DrivePro ExWarr Work Shop PG04 42 Month
130R1034
DrivePro ExWarr Onsite PG04 48 Months
Encoder-less Safety using DOLD Module VLT drives with integrated CBM VLT Integrated Motion Controller Appl G. VLT=C2=AE Drives Motor overload protection VLT AutomationDrive FC 301-302, VLT Decentral Drive FCD 302 SG VLT=C2=AE Advanced Harmonic Filter AHF005-010 VLT=C2=AE AutomationDrive FC301-302 0.25-75kW VLT=C2=AE FC Series Output Filter Design G. Control Card VLT=C2=AE FC Series FC Series Spare Brake IGBT Danfoss MD 00779152 B2 SASO KSA R-205899 UL E236048 UL E70524 KC R-R-Ddk FC302 PSL File Danfoss 24899 PSL-File Danfoss-24800 Danfoss EU-UK 00730217 A10 Danfoss EU-UK 00730264 A5 Danfoss EU-UK 00730297 A6 VLT_B2_IP21-55-66 130B1208_Eplan 130B1108_Eplan MCAD FC B2 IP21-55-66 176U8474 - Mechanical Submittal Drawing 130B1137_EPlan 130B1107_E-plan MCAD B2 IP55 wo-switch Wiring Schematic FC 103, FC 302 MCAD FC A4 to B2 Bracket VLT=C2=AE Drives EtherNet/IP EDS VLT=C2=AE AutomationDrive Support File VLT=C2=AE Motion Control Tool MCT31 VLT=C2=AE AutomationDrive FC 301 Simulator VLT=C2=AE AutomationDrive FC 302 Simulator VLT=C2=AE EtherNet/IP Add-on Instructions VLT=C2=AE Drives DeviceNet EDS VLT=C2=AE MCA101 PROFIBUS GSD VLT=C2=AE MCA120 PROFINET GSDML VLT=C2=AE MCA123 POWERLINK XDD
