136Z3869

Part Number: 136Z3869
136Z3869
Manufacturer
Danfoss
Part number
136Z3869
Category

Product Information

Extended Description

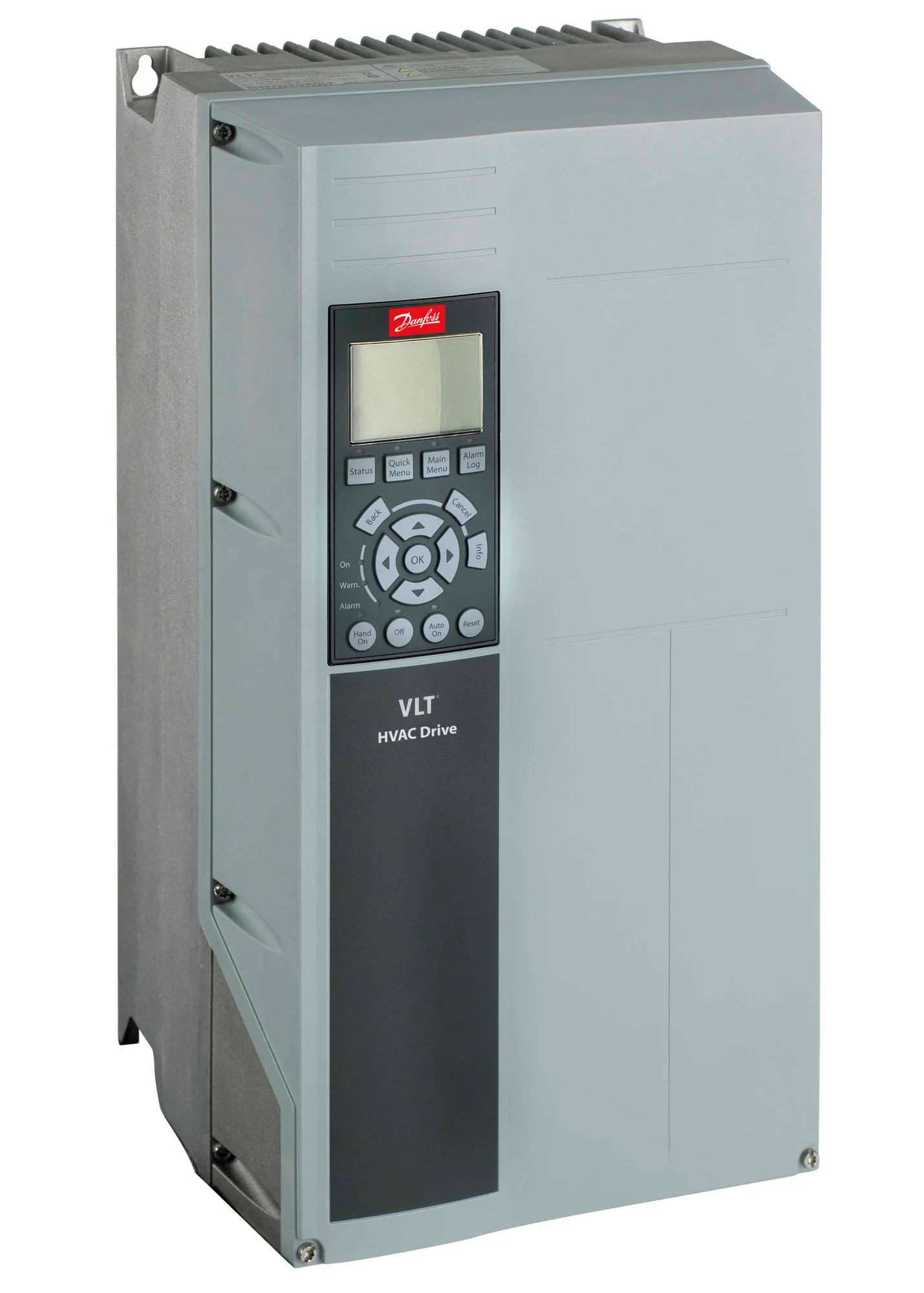

136Z3869 Danfoss: Frequency ConverterFC-102P2K2T6P55HXXGXXSXSXXXXAXB0CXRXXDXVLT=C2=AE HVAC Drive FC-102(P2K2) 2.2 KW / 3.0 HP, Three phase525 - 600 VAC, IP55 / Type12 BackplateNo RFI FilterNo brake chopperGraphical Loc. Cont. PanelNot coated PCB, No Mains OptionLatest release std. SW.Frame: A5MCB-113 Ext. Relay Card, No D optionNo A Option, MCB-109 I/O, RTC Back-upOther options according to Model Code
Gross weight
14.3 kg
Net weight
14 kg
Volume
0 l
EAN
5714853228607
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
P2K2 : (P2K2) 2.2 KW / 3.0 HP
Phase
T : Three phase
Mains Voltage
6 : 525 - 600 VAC
Enclosure
P55 : IP55 / Type12 Backplate
RFI Filter
HX : No RFI Filter
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
X : Not coated PCB
Mains Option
X : No Mains Option
Adaptation A
S : Smooth imperial cable entr
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
B0 : MCB-109 I/O, RTC Back-up
C0 Option MCO
CX : No C0 option
C1 Option
R : MCB-113 Ext. Relay Card
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
A5 : A5
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102P2K2T6P55HXXGX
Typecode Part 2
XSXSXXXXAXB0CXRXXDX
Power 110% (NO) [KW]
2.2
Height [mm]
420,0
Width w/ no C options [mm]
242,0
Depth [mm]
200,0
Depth with Option A/B [mm]
200,0
kVA
3.88
Power Loss NO [W]
92
Continuous Current (NO) [A]
4.1
Intermittent Current (NO) [A]
4.51
Calculated Gross Weight [kg]
13.6
Calculated Net Weight [kg]
13.3
ECCN US
3A999
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102P2K2T6P55HXXGX
Modelcode02
XSXSXXXXAXB0CXRXXDX
130B4598
Weather shield f. outdoor instl A4 to B2
130B7532
Mounting Kit f. C Option, A5
130B5436
Side Fixture Mounting Kit
130B5435
DIN Rail Mounting Kit
130B1170
LCP Panel Mounting Kit
130B1387
5xMCB107 24VDC no coat w.out mount brack
130B1385
VLT=C2=AE Profibus DP V1 MCA101, unctd 5pcs
130B1028
Panel Through Mounting Kit, A5
130B1135
VLT=C2=AE PROFINET MCA 120, uncoated
130B1124
VLT=C2=AE Control Panel LCP 101, numeric
130R1121
DrivePro ExWarr Work Shop PG03 30 Month
130R1120
DrivePro ExWarr Work Shop PG03 24 Month
130R1122
DrivePro ExWarr Work Shop PG03 36 Month
130R1123
DrivePro ExWarr Work Shop PG03 42 Month
130R1126
DrivePro ExWarr Work Shop PG03 60 Month
130R1125
DrivePro ExWarr Work Shop PG03 54 Month
130R1124
DrivePro ExWarr Work Shop PG03 48 Month
130R1127
DrivePro ExWarr Work Shop PG03 66 Month
130R1128
DrivePro ExWarr Work Shop PG03 72 Month
130R1024
DrivePro ExWarr Onsite PG03 48 Months
