136Z5983
Part Number: 136Z5983
Product Information
Extended Description

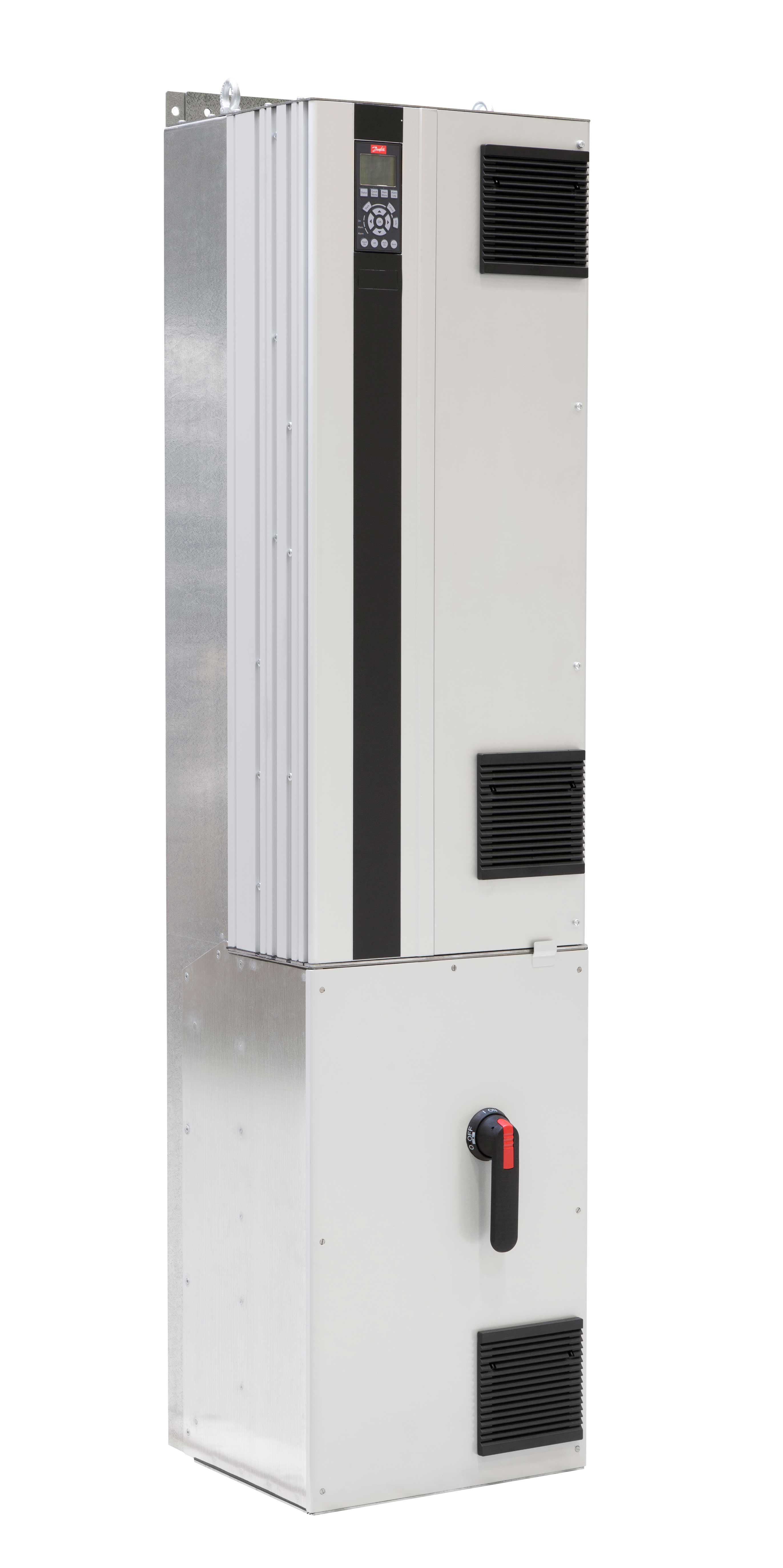

136Z5983 Danfoss: Frequency ConverterFC-102N160T4E5MH2TGC3XXSXXXXA0BXCXXXXD0VLT=C2=AE HVAC Drive FC-102(N160) 160 KW / 250 HP, Three phase380 - 480 VAC, IP54/Type 12+main shieldRFI FilterSafe StopGraphical Loc. Cont. PanelCoated PCB, Mains Disconnect + FuseLatest release std. SW.Frame: D5HNo C1 option, MCB-107 24V DC backupPROFIBUS DP MCA 101, No B OptionOther options according to Model Code
Gross weight
136 kg
Net weight
96 kg
Volume
0 l
EAN
5714853250226
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
N160 : (N160) 160 KW / 250 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E5M : IP54/Type 12+main shield
RFI Filter
H2 : RFI Filter
Brake - Safe Stop
T : Safe Stop
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
3 : Mains Disconnect + Fuse
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
A0 : PROFIBUS DP MCA 101
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
D0 : MCB-107 24V DC backup
Frame Size
D5H : D5H
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102N160T4E5MH2TGC
Typecode Part 2
3XXSXXXXA0BXCXXXXD0
Power 110% (NO) [KW]
160
Height [mm]
1324,0
Width w/ no C options [mm]
325,0
Depth [mm]
381,0
Depth with Option A/B [mm]
381,0
kVA
218
Power Loss NO [W]
3764
Continuous Current (NO) [A]
315
Intermittent Current (NO) [A]
346
Calculated Gross Weight [kg]
166.3
Calculated Net Weight [kg]
166
ECCN US
3A999
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102N160T4E5MH2TGC
Modelcode02
3XXSXXXXA0BXCXXXXD0
