136Z7988

Part Number: 136Z7988
136Z7988
Manufacturer
Danfoss
Part number
136Z7988
Category

Product Information

Extended Description

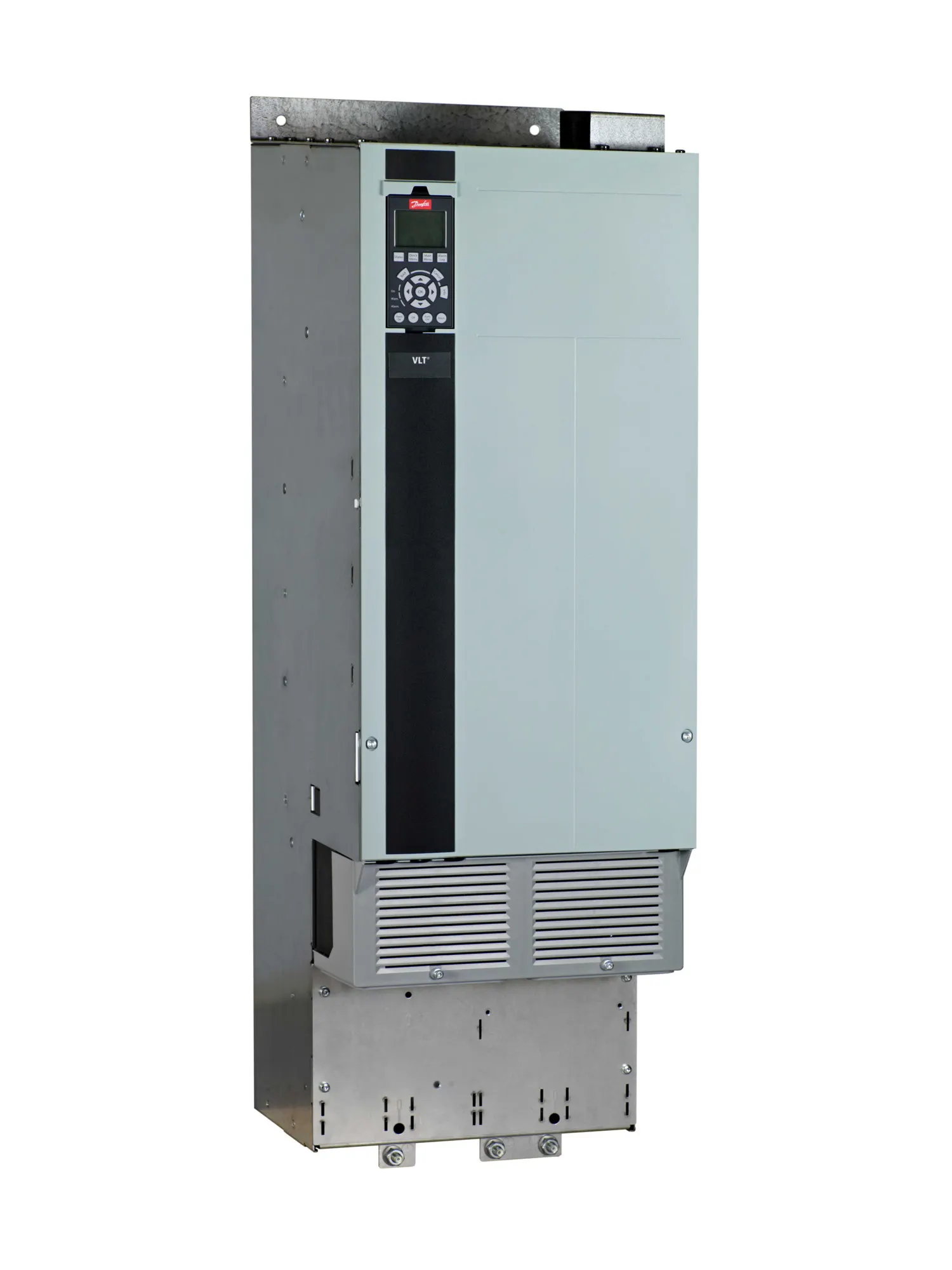

136Z7988 Danfoss: Frequency ConverterFC-102P90KT4P20H2XGXXXXSXXXXAKBXCXXXXDXVLT® HVAC Drive FC-102(P90K) 90 KW / 125 HP, Three phase380 - 480 VAC, IP20 / Chassis BackplateRFI FilterNo brake chopperGraphical Loc. Cont. PanelNot coated PCB, No Mains OptionLatest release std. SW.Frame: C4No C1 option, No D optionMCA 125 BACnet/IP, No B OptionOther options according to Model Code
Gross weight
50.5 kg
Net weight
50.2 kg
Volume
0 l
EAN
5714853270439
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT® HVAC Drive FC-
Series
102 : 102
Power Rating
P90K : (P90K) 90 KW / 125 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
P20 : IP20 / Chassis Backplate
RFI Filter
H2 : RFI Filter
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
X : Not coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AK : MCA 125 BACnet/IP
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
C4 : C4
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102P90KT4P20H2XGX
Typecode Part 2
XXXSXXXXAKBXCXXXXDX
Power 110% (NO) [KW]
90
Height [mm]
660,0
Width w/ no C options [mm]
370,0
Depth [mm]
333,0
Depth with Option A/B [mm]
333,0
kVA
123
Power Loss NO [W]
1474
Continuous Current (NO) [A]
177
Intermittent Current (NO) [A]
195
Calculated Gross Weight [kg]
50.8
Calculated Net Weight [kg]
50.5
ECCN US
3A999
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102P90KT4P20H2XGX
Modelcode02
XXXSXXXXAKBXCXXXXDX
