136Z9998
Part Number: 136Z9998
Product Information
Extended Description

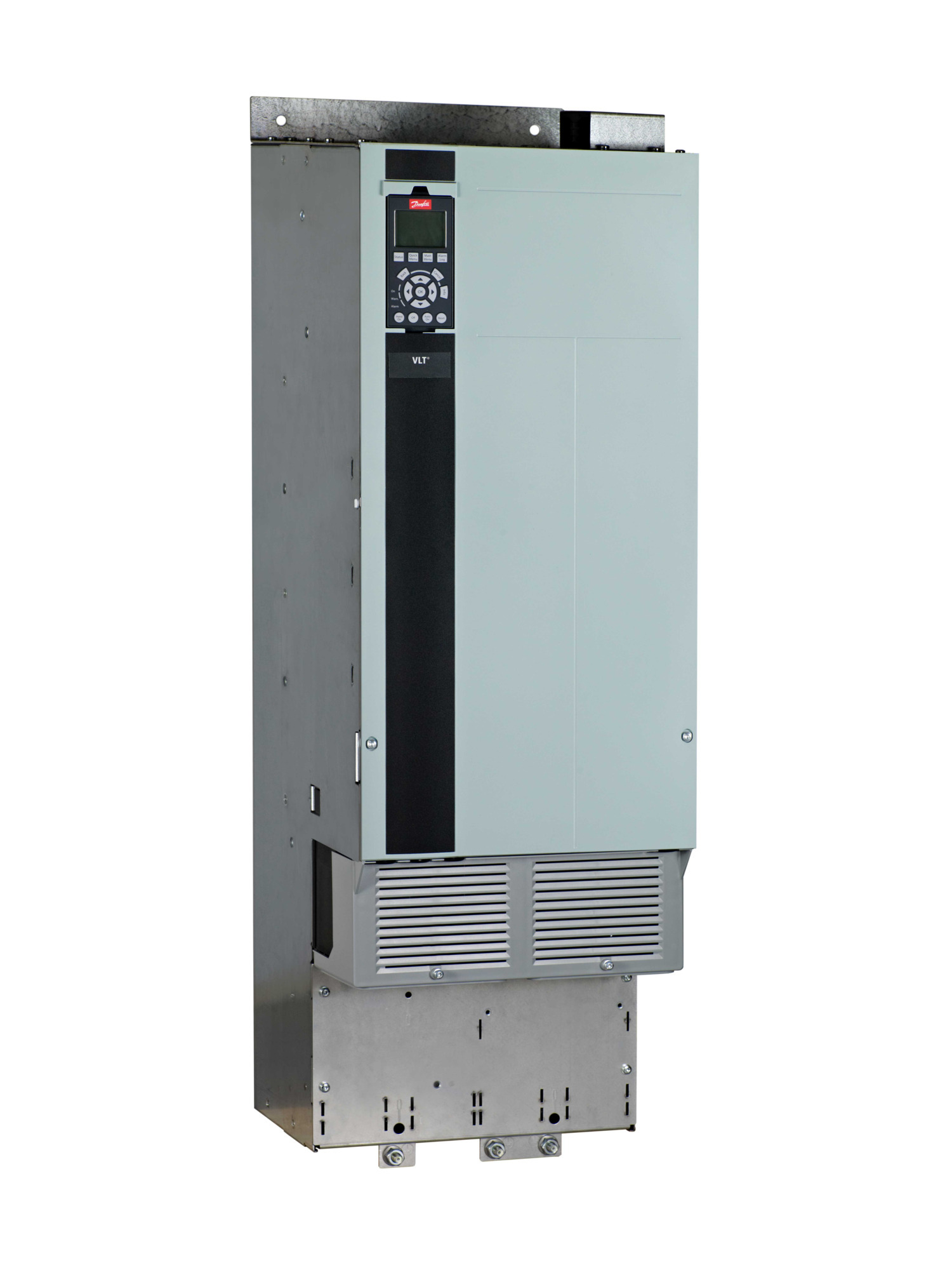

136Z9998 Danfoss: Frequency converterFC-302N200T5E20H2BGCXXXS067XALBRCXXXXDXVLT=C2=AE AutomationDrive FC-302(N200) 200 KW / 300 HP, Three phase380 - 500 VAC, (E20) IP20 / ChassisRFI FilterBrake chopperGraphical Loc. Cont. PanelCoated PCB, No Mains Option(S067)Integrated MotionControlFrame: D4HNo C1 option, No D optionPROFINET MCA 120, MCB-102 Encoder OptionOther options according to Model code
Gross weight
125.3 kg
Net weight
125 kg
Volume
0 l
EAN
5715253258768
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE AutomationDrive FC-
Series
302 : 302
Power Rating
N200 : (N200) 200 KW / 300 HP
Phase
T : Three phase
Mains Voltage
5 : 380 - 500 VAC
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H2 : RFI Filter
Brake - Safe Stop
B : Brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
S067 : (S067)Integrated MotionControl
Software Language Pack
X : Standard Language Pack
A Option
AL : PROFINET MCA 120
B Option
BR : MCB-102 Encoder Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
D4H : D4H
Typecode Part 1
FC-302N200T5E20H2BGC
Typecode Part 2
XXXS067XALBRCXXXXDX
Product Catalog
NO_VIEW : NO VIEW
Power 150% (HO) [KW]
200
Power 110% (NO) [KW]
250
Height [mm]
1122,0
Height w/ Regen/Loadshare [mm]
1268,0
Width w/ no C options [mm]
350,0
Depth [mm]
375,0
Depth with Option A/B [mm]
375,0
kVA
274
Power Loss NO [W]
5137
Power Loss HO [W]
4039
Continuous Current (NO) [A]
480
Intermittent Current (NO) [A]
528
Continuous Current (HO) [A]
395
Intermittent Current (HO) [A]
592
Calculated Gross Weight [kg]
125.3
Calculated Net Weight [kg]
125
ECCN EU
Y901
ECCN US
3A999.a
Plant from Orderline
G103
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-302N200T5E20H2BGC
Modelcode02
XXXS067XALBRCXXXXDX
176F3527
kit,cooling,in bottom out back,d2h d4h
176F3628
Cooling Kit, in btm/out top, 1800mm D4h
176F3626
Cooling Kit, in back/out back, D4h
176F3655
Cooling Kit, in back/out back, SS, D4h
176F3649
Cooling Kit, in back/out back, D2h
176F3634
Cooling Kit, in back/out back, D4h
176F3630
Cooling Kit, in btm/out top, 2000mm, D4h
176F3410
Adapter Plate, D2h/D4h
130B7635
VLT=C2=AE Lift Controller MCO 361
130B7145
VLT=C2=AE SALT Controller MCO 360
134G8893
FC-302N250T5E20H4BGR7XXSXXXXAXBXCXXXXDX
130R1153
DrivePro ExWarr Work Shop PG06 42 Month
130R1156
DrivePro ExWarr Work Shop PG06 60 Month
130R1152
DrivePro ExWarr Work Shop PG06 36 Month
130R1154
DrivePro ExWarr Work Shop PG06 48 Month
130R1155
DrivePro ExWarr Work Shop PG06 54 Month
130R1151
DrivePro ExWarr Work Shop PG06 30 Month
130R1150
DrivePro ExWarr Work Shop PG06 24 Month
130R1157
DrivePro ExWarr Work Shop PG06 66 Month
130R1158
DrivePro ExWarr Work Shop PG06 72 Month
Encoder-less Safety using DOLD Module
VLT drives with integrated CBM
VLT Integrated Motion Controller Appl G.
VLT=C2=AE Drives Motor overload protection
VLT AutomationDrive FC 301-302, VLT Decentral Drive FCD 302 SG
VLT=C2=AE Advanced Harmonic Filter AHF005-010
VLT=C2=AE AutomationDrive FC 302, 90-710 kW
VLT=C2=AE Brake Resistor MCE 101
VLT=C2=AE FC Series Output Filter Design G.
Control Card VLT=C2=AE FC Series
Danfoss MD 00779152 B2
SASO KSA R-205899
UL E236048
UL E70524
KC R-R-Ddk FC302
PSL File Danfoss 24899
PSL-File Danfoss-24800
Danfoss EU-UK 00730217 A10
Danfoss EU-UK 00730264 A5
Danfoss EU-UK 00730297 A6
VLT_D4h_IP20
130B1107_E-plan
Wiring Schematic FC 110-400 kW D-frame
Remote_LCP_holder
130B1135_Eplan
130B1115_Eplan
130B1117_Eplan
130B1203_Eplan
MCAD FC D4h 177r0340
130B1235_Eplan
VLT=C2=AE Drives EtherNet/IP EDS
VLT=C2=AE AutomationDrive Support File
VLT=C2=AE Motion Control Tool MCT31
VLT=C2=AE AutomationDrive FC 301 Simulator
VLT=C2=AE AutomationDrive FC 302 Simulator
VLT=C2=AE EtherNet/IP Add-on Instructions
VLT=C2=AE Drives DeviceNet EDS
VLT=C2=AE MCA101 PROFIBUS GSD
VLT=C2=AE MCA120 PROFINET GSDML
VLT=C2=AE MCA123 POWERLINK XDD
