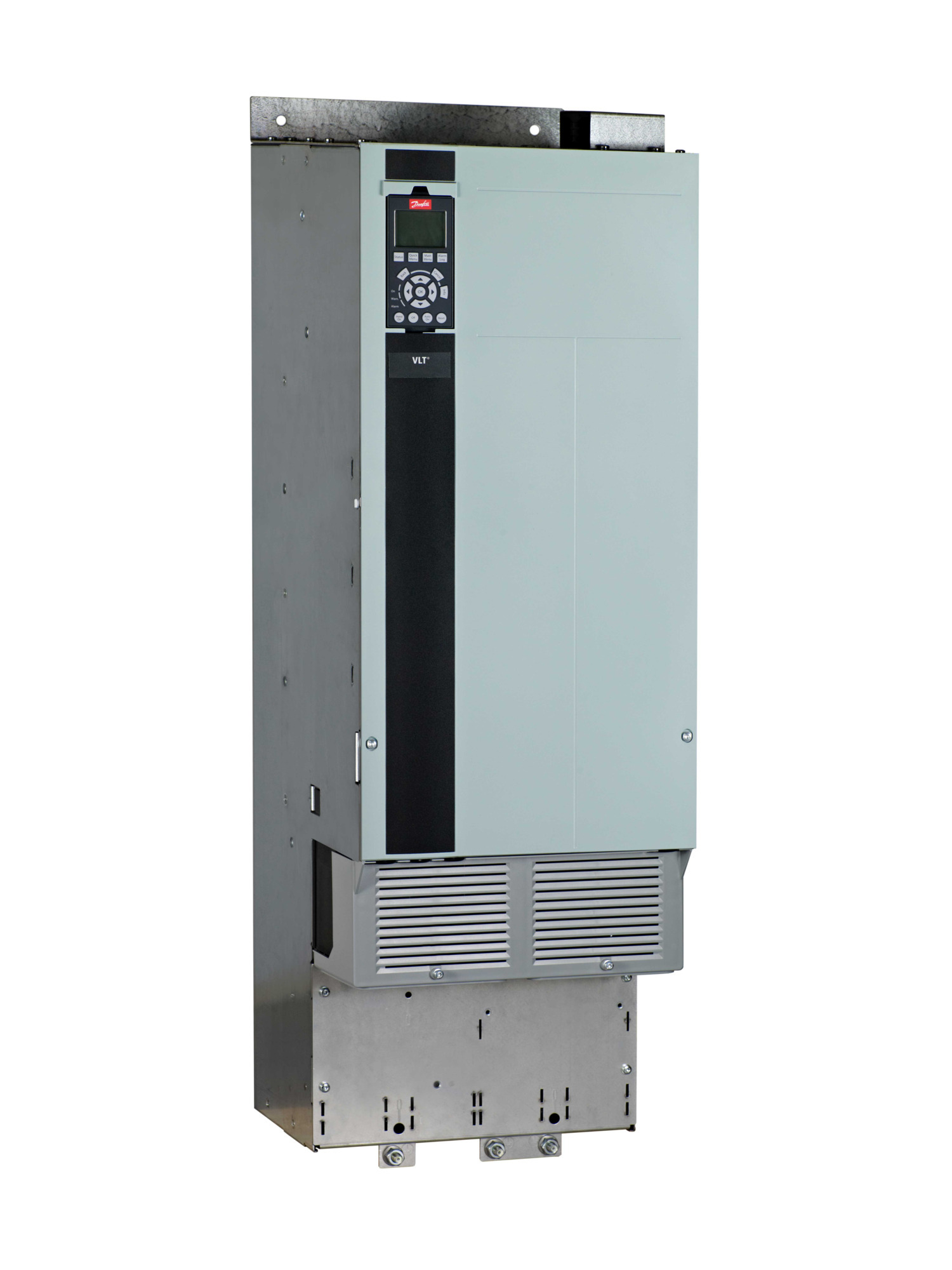

137G1015
Part Number: 137G1015
Product Information
Extended Description
137G1015 Danfoss: Frequency ConverterFC-102N110T2E20H2XGC7XXSXXXXAXBXCXXXXDXVLT=C2=AE HVAC Drive FC-102(N110) 110 KW / 150 HP, Three phase200 - 240 VAC, (E20) IP20 / ChassisRFI FilterNo brake chopperGraphical Loc. Cont. PanelCoated PCB, FuseLatest release std. SW.Frame: D4HNo C1 option, No D optionNo A Option, No B OptionOther options according to Model Code
Gross weight
125.3 kg
Net weight
125 kg
Volume
0 l
EAN
5715253269351
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
N110 : (N110) 110 KW / 150 HP
Phase
T : Three phase
Mains Voltage
2 : 200 - 240 VAC
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H2 : RFI Filter
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
7 : Fuse
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
D4H : D4H
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102N110T2E20H2XGC
Typecode Part 2
7XXSXXXXAXBXCXXXXDX
Height [mm]
1122,0
Height w/ Regen/Loadshare [mm]
1268,0
Width w/ no C options [mm]
350,0
Depth [mm]
375,0
Depth with Option A/B [mm]
375,0
Calculated Gross Weight [kg]
125.3
Calculated Net Weight [kg]
125
ECCN EU
X.A.I.003
ECCN US
3A999
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102N110T2E20H2XGC
Modelcode02
7XXSXXXXAXBXCXXXXDX
Recommended Plant
ERR01
176F3527
kit,cooling,in bottom out back,d2h d4h
176F3628
Cooling Kit, in btm/out top, 1800mm D4h
176F3626
Cooling Kit, in back/out back, D4h
176F3634
Cooling Kit, in back/out back, D4h
176F3630
Cooling Kit, in btm/out top, 2000mm, D4h
176F3410
Adapter Plate, D2h/D4h
130B1235
VLT=C2=AE PROFINET MCA 120, coated
130B1243
VLT=C2=AE Analog I/O Option MCB 109, coated
130B1219
VLT=C2=AE EtherNet IP MCA 121, coated
130B1170
LCP Panel Mounting Kit
130R1153
DrivePro ExWarr Work Shop PG06 42 Month
130R1156
DrivePro ExWarr Work Shop PG06 60 Month
130R1152
DrivePro ExWarr Work Shop PG06 36 Month
130R1154
DrivePro ExWarr Work Shop PG06 48 Month
130R1155
DrivePro ExWarr Work Shop PG06 54 Month
130R1151
DrivePro ExWarr Work Shop PG06 30 Month
130R1150
DrivePro ExWarr Work Shop PG06 24 Month
130R1157
DrivePro ExWarr Work Shop PG06 66 Month
130R1158
DrivePro ExWarr Work Shop PG06 72 Month
130R1057
DrivePro ExWarr Onsite PG06 66 Months
