137G5834

Part Number: 137G5834
137G5834
Manufacturer
Danfoss
Part number
137G5834
Category

Product Information

Extended Description

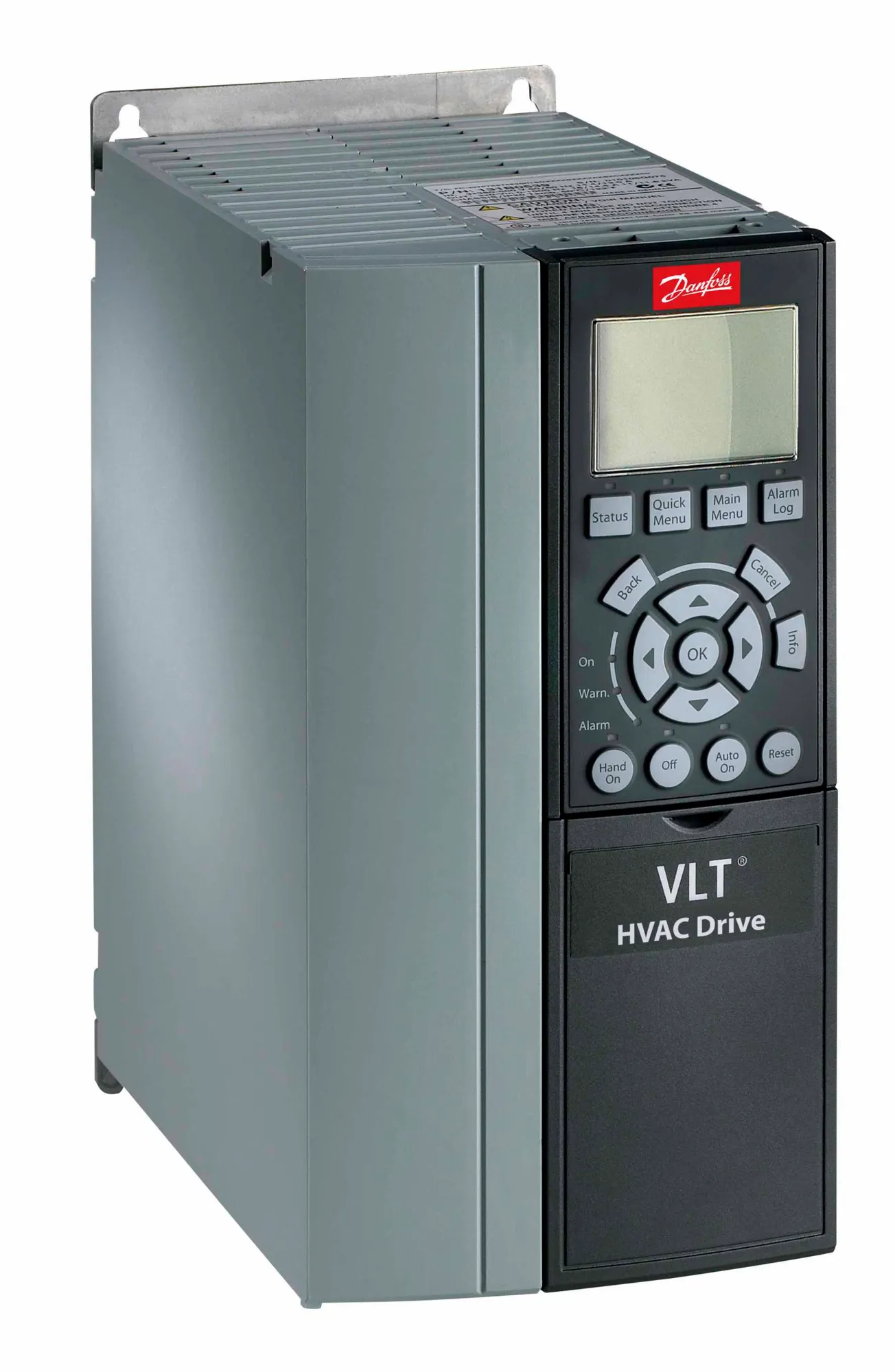

137G5834 Danfoss: Frequency ConverterFC-102P11KT4P55H2XGX3SXSXXXXANBXCXXXXDXVLT=C2=AE HVAC Drive FC-102(P11K) 11 KW / 15 HP, Three phase380 - 480 VAC, IP55 / Type12 BackplateRFI FilterNo brake chopperGraphical Loc. Cont. PanelNot coated PCB, Mains Disconnect + FuseLatest release std. SW.Frame: B1No C1 option, No D optionEtherNet/IP MCA 121, No B OptionOther options according to Model Code
Gross weight
24.3 kg
Net weight
24 kg
Volume
0 l
EAN
5715253319629
Product View (Switch)
NAMC : North America (Regional)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
P11K : (P11K) 11 KW / 15 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
P55 : IP55 / Type12 Backplate
RFI Filter
H2 : RFI Filter
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
X : Not coated PCB
Mains Option
3 : Mains Disconnect + Fuse
Adaptation A
S : Smooth imperial cable entr
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AN : EtherNet/IP MCA 121
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
B1 : B1
Product Catalog
NAMC : North America (Regional)
Typecode Part 1
FC-102P11KT4P55H2XGX
Typecode Part 2
3SXSXXXXANBXCXXXXDX
Power 110% (NO) [KW]
11
Height [mm]
480,0
Width w/ no C options [mm]
242,0
Depth [mm]
260,0
Depth with Option A/B [mm]
260,0
kVA
16.6
Power Loss NO [W]
278
Continuous Current (NO) [A]
24
Intermittent Current (NO) [A]
26.4
Calculated Gross Weight [kg]
23.5
Calculated Net Weight [kg]
23.2
ECCN EU
X.A.I.003
ECCN US
3A999
Plant from Orderline
F605
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102P11KT4P55H2XGX
Modelcode02
3SXSXXXXANBXCXXXXDX
130B4598
Weather shield f. outdoor instl A4 to B2
130B7533
Mounting Kit C Option, B/C/D/E/F(not B3)
130B5436
Side Fixture Mounting Kit
130B5435
DIN Rail Mounting Kit
130B1170
LCP Panel Mounting Kit
130B1387
5xMCB107 24VDC no coat w.out mount brack
130B1135
VLT=C2=AE PROFINET MCA 120, uncoated
130B1125
VLT=C2=AE General Purpose I/O MCB 101,unctd
130B1124
VLT=C2=AE Control Panel LCP 101, numeric
130B1117
LCP Mounting Kit, w/ no LCP
131F3243
FC-102P18KT4E55H1UGCXXXSXXXXAXBXCXXXXDX
130R1131
DrivePro ExWarr Work Shop PG04 30 Month
130R1134
DrivePro ExWarr Work Shop PG04 48 Month
130R1135
DrivePro ExWarr Work Shop PG04 54 Month
130R1137
DrivePro ExWarr Work Shop PG04 66 Month
130R1138
DrivePro ExWarr Work Shop PG04 72 Month
130R1136
DrivePro ExWarr Work Shop PG04 60 Month
130R1130
DrivePro ExWarr Work Shop PG04 24 Month
130R1132
DrivePro ExWarr Work Shop PG04 36 Month
130R1133
DrivePro ExWarr Work Shop PG04 42 Month
Encoder-less Safety using DOLD Module Fire Emergency Mode VLT drives with integrated CBM VLT HVAC Drive Applications Note VLT=C2=AE Drives Motor overload protection VLT=C2=AE HVAC Drive FC 102 Temp. Derating VLT=C2=AE HVAC Drive in Fan Application with VLT HVAC Drive FC 102 Selection Guide VLT=C2=AE Advanced Harmonic Filter AHF005-010 VLT=C2=AE FC Series Output Filter Design G. Danfoss MD 00779152 B2 SASO KSA R-205899 UL E236048 UL E70524 PSL File Danfoss-24899b PSL-File Danfoss-24800 Danfoss EU-UK 00730213 A7 Danfoss EU-UK 00730297 A6 Danfoss EU-UK 00730657 A4 Danfoss EU-UK 00738283 A5 Wiring Schematic FC 102-202 1.1-90 kW 176U8471 - Mechanical Submittal Drawing FC 102 B1 enclosure IP55-66 w-m.discon. 174N3178 - Electrical Submittal Drawing 130B1219_Eplan 130B1107_E-plan MCAD FC B1 IP66 WITH DISCONNECTOR MCAD FC A4 to B2 Bracket MCAD FC B1 IP55 Back plate Remote_LCP_holder VLT=C2=AE Drives EtherNet/IP EDS VLT=C2=AE HVAC Drive Support File VLT=C2=AE HVAC Drive Simulator VLT=C2=AE EtherNet/IP Add-on Instructions VLT=C2=AE HVAC Drive FC 102 LNS Plug-in VLT=C2=AE HVAC Drive FC 102 LonWorks VLT=C2=AE Drives DeviceNet EDS VLT=C2=AE MCA101 PROFIBUS GSD VLT=C2=AE MCA120 PROFINET GSDML VLT=C2=AE Drives PROFIBUS PCA Block
