137G6828
Part Number: 137G6828
Product Information
Extended Description

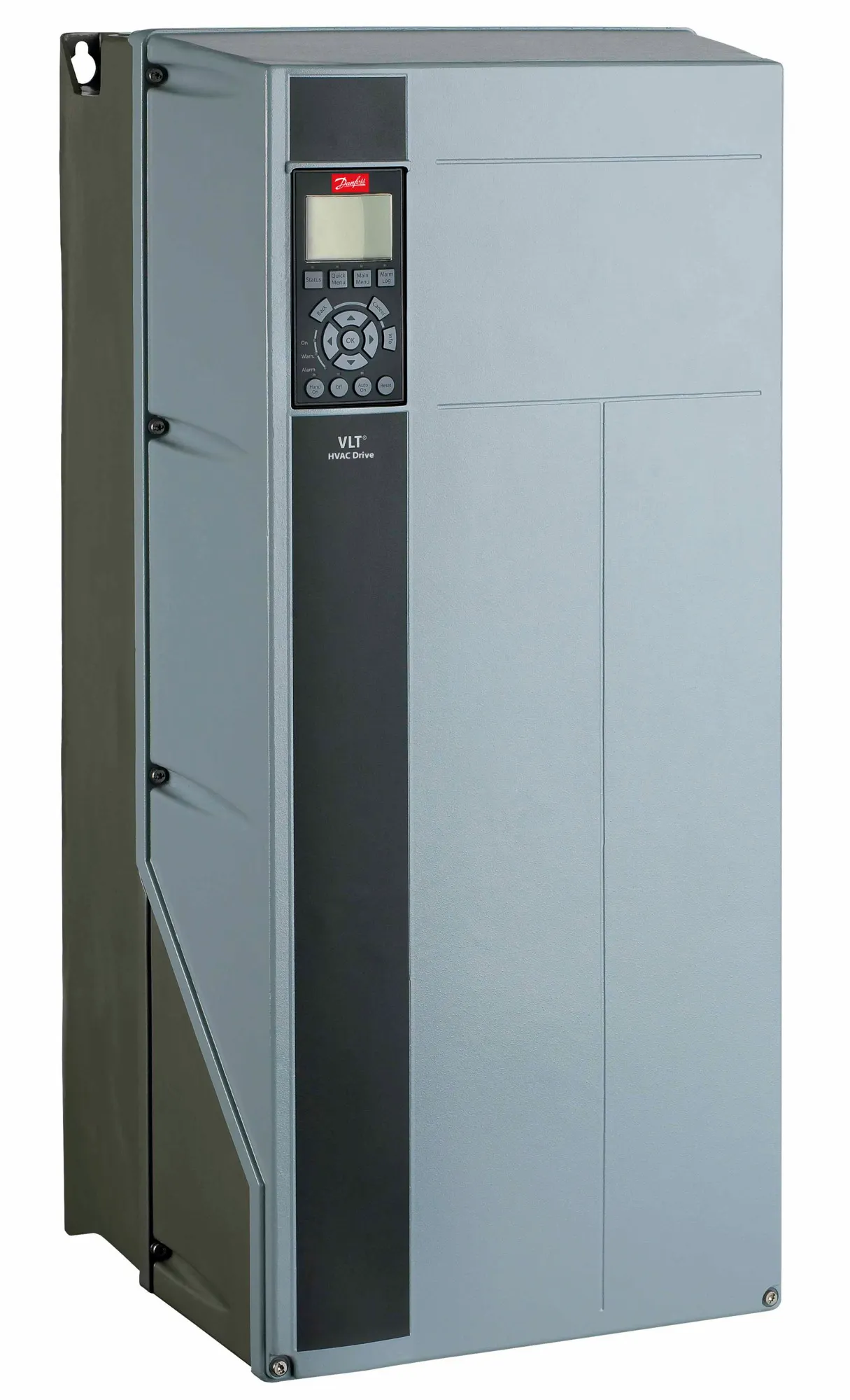

137G6828 Danfoss: Frequency ConverterFC-102P75KT4P55H1TGCXXXSXXXXALBPCXXXXD0VLT=C2=AE HVAC Drive FC-102(P75K) 75 KW / 100 HP, Three phase380 - 480 VAC, IP55 / Type12 Backplate(H1) RFI Class A1/B (C1)Safe StopGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: C2No C1 option, MCB-107 24V DC backupPROFINET MCA 120, MCB-105 Relay CardOther options according to Model Code
Gross weight
62.5 kg
Net weight
62.2 kg
Volume
228.095 l
EAN
5715253329918
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
P75K : (P75K) 75 KW / 100 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
P55 : IP55 / Type12 Backplate
RFI Filter
H1 : (H1) RFI Class A1/B (C1)
Brake - Safe Stop
T : Safe Stop
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AL : PROFINET MCA 120
B Option
BP : MCB-105 Relay Card
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
D0 : MCB-107 24V DC backup
Frame Size
C2 : C2
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102P75KT4P55H1TGC
Typecode Part 2
XXXSXXXXALBPCXXXXD0
Power 110% (NO) [KW]
75
Height [mm]
770,0
Width w/ no C options [mm]
370,0
Depth [mm]
335,0
Depth with Option A/B [mm]
335,0
kVA
102
Power Loss NO [W]
1384
Continuous Current (NO) [A]
147
Intermittent Current (NO) [A]
162
Calculated Gross Weight [kg]
62.2
Calculated Net Weight [kg]
61.9
ECCN EU
X.A.I.003
ECCN US
3A999
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102P75KT4P55H1TGC
Modelcode02
XXXSXXXXALBPCXXXXD0
Recommended Plant
ERR01
175Z4717
terminal spare/terminal blok/150,0ke63da
175Z4716
terminal spare/terminal blok/95,0 ke62da
612Z1182
fuse,4a,3 x 32mm,super fast
130B3953
Cover for DC choke on frame C2 and I8
130B2451
IGBT Dual 1200V 300A
130B9981
Cable assy motor, C2
130B9980
Cable assy f. motor cable, C2
130B9979
Terminal block f. motor connection, C2
130B9978
UVW Terminal Block w.Wire for Disconnect
130B9001
multiple 2 pole power combicon, 24V plug
130B4597
Weather shield f. outdoor instl. C1, C2
130B7533
Mounting Kit C Option, B/C/D/E/F(not B3)
130B5436
Side Fixture Mounting Kit
130B5435
DIN Rail Mounting Kit
130B1170
LCP Panel Mounting Kit
130B1135
VLT=C2=AE PROFINET MCA 120, uncoated
130B1124
VLT=C2=AE Control Panel LCP 101, numeric
130B1117
LCP Mounting Kit, w/ no LCP
130B1156
USB extension Cable, 650mm
130B1077
Blindcover, w/ Danfoss logo, IP55/66
131H3164
FC-102P90KT4E55H1UGCXXXSXXXXAXBXCXXXXDX
130R1140
DrivePro ExWarr Work Shop PG05 24 Month
130R1141
DrivePro ExWarr Work Shop PG05 30 Month
130R1142
DrivePro ExWarr Work Shop PG05 36 Month
130R1144
DrivePro ExWarr Work Shop PG05 48 Month
130R1145
DrivePro ExWarr Work Shop PG05 54 Month
130R1143
DrivePro ExWarr Work Shop PG05 42 Month
130R1147
DrivePro ExWarr Work Shop PG05 66 Month
130R1148
DrivePro ExWarr Work Shop PG05 72 Month
130R1146
DrivePro ExWarr Work Shop PG05 60 Month
Encoder-less Safety using DOLD Module
Fire Emergency Mode
VLT drives with integrated CBM
VLT HVAC Drive Applications Note
VLT=C2=AE Drives Motor overload protection
VLT=C2=AE HVAC Drive FC 102 Temp. Derating
VLT=C2=AE HVAC Drive in Fan Application with
VLT HVAC Drive FC 102 Selection Guide
VLT=C2=AE Advanced Harmonic Filter AHF005-010
VLT=C2=AE FC Series Output Filter Design G.
Danfoss MD 00779152 B2
SASO KSA R-205899
UL E236048
UL E70524
PSL File Danfoss-24899b
PSL-File Danfoss-24800
Danfoss EU-UK 00730213 A7
Danfoss EU-UK 00730297 A6
Danfoss EU-UK 00730657 A4
Danfoss EU-UK 00738283 A5
VLT_C2_IP21-55-66
Wiring Schematic FC 102-202 1.1-90 kW
176U8480 - Mechanical Submittal Drawing
MCAD FC 102 C2 IP66 37-90kW
130B1210-Eplan
130B1208_Eplan
130B1108_Eplan
130B1110_Eplan
130B1107_E-plan
MCAD FC C1 C2 Roof
VLT=C2=AE Drives EtherNet/IP EDS
VLT=C2=AE HVAC Drive Support File
VLT=C2=AE HVAC Drive Simulator
VLT=C2=AE EtherNet/IP Add-on Instructions
VLT=C2=AE HVAC Drive FC 102 LNS Plug-in
VLT=C2=AE HVAC Drive FC 102 LonWorks
VLT=C2=AE Drives DeviceNet EDS
VLT=C2=AE MCA101 PROFIBUS GSD
VLT=C2=AE MCA120 PROFINET GSDML
VLT=C2=AE Drives PROFIBUS PCA Block
