137G7424
Part Number: 137G7424
Product Information
Extended Description

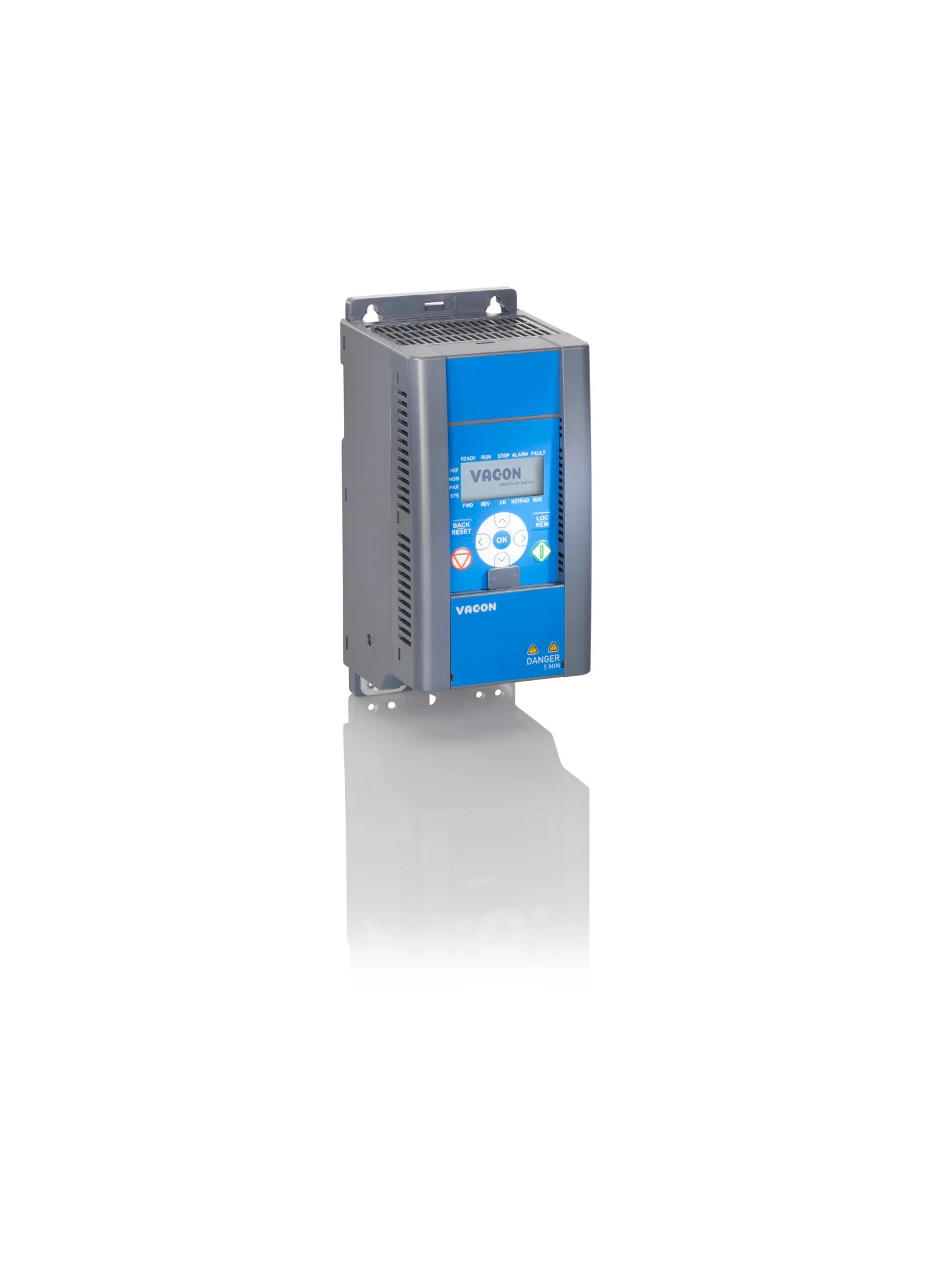

137G7424 Danfoss: Frequency ConverterVACON0020-3L-0005-2+LS60MI02-0005-2+IP20+EMC4(0020) Vacon 0203 Phase AC Input, 208=E2=80=93240 Vac5 Amp, IP20/UL Open Type, EMC 4 Class(+DBIN) Brake Chopper, 60 Hz, MI02Other options according to Model code
Gross weight
1.16 kg
Net weight
0.88 kg
Volume
0 l
EAN
5715253336916
Product View (Switch)
GLBL : Global (Standard)
Product Group
VACON : (VACON) Vacon
Product Range
0020 : (0020) Vacon 020
Segment
NONE : (NONE) Vacon 10/20
Customized
+BM25 : (+BM25) Vacon0020 product
Regional
-R00 : International
Input
-3L : 3 Phase AC Input
Voltage
-2 : 208=E2=80=93240 Vac
Current
-0005 : 5 Amp
Current Description
4,8 AMP
API Selection
+SM20 : API for Vacon0020
E Slot Option Board
+SE00 : No Option
Mounting
-DM : Drive Module
Enclosure
+IP20 : IP20/UL Open Type
EMC Level
+EMC4 : EMC 4 Class
Enclosure Accessory A
+Q000 : (+Q000) No PE plate Kit
Enclosure Accessory B
+Q000 : (+Q000) No Additional Option
Documentation Language
+DLUK : (+DLUK) English
Documentation level
+DQCK : (+DQCK) Quick Guide
Label Language
+LLUK : (+LLUK) English
SW package
+F0107 : (+F0107)VACON 20 SW package
Application
+A0000 : (+A0000)No Special Application
Brake
+DBIN : (+DBIN) Brake Chopper
Display Units
+LSSI : (+LSSI)Metric Units of Measure
Frequency Setting
+LS60 : 60 Hz
Parameter Set
+L0000 : (+L0000) No Parameter Set
Shipping Package
+GSCB : Cardboard Box as Shipping pack
UL Approval
+GAUL : (+GAUL) UL Approval
CE Aproval
+GACE : (+GACE) CE Approval
C-tick Approval
+GACT : (+GACT) C-Tick Approval
KC Approval
+GAKC : (+GAKC) KC Approval
Standard Warranty
+WT01 : (+WT01) Warranty 12/18 Months
Frame Size
MI02 : MI02
Typecode Part 1
70-AC3L00052W02A141BM25
Typecode Part 2
-000102130
Modelcode01
VACON0020-3L-0005-2
Modelcode05
+LS60
Product Catalog
NO_VIEW : NO VIEW
Salestext
MI02-0005-2+IP20+EMC4
Calculated Net Weight [kg]
0.88
Calculated Gross Weight [kg]
1.16
Motor Power High Overload [kW]
1.1
Dimensions WxHxD [mm]
90 X 195 X 102
Continuous Current (NO) [A]
9.6
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Help Counter
1
PREFIX AS PART OF STOCKCODE
70- : PREFIX FOR VXS020
VXS020 FRAME TYPE
A : Frame type A
Recommended Plant
ERR01
check if complete
OK
ECCN US
3A999.a
ECCN EU
Y901
181B0325
OPT-E3-V:PROFIBUS DP
181B0586
OPT-E7-V:DeviceNet
181B0244
USB/RS485 cable
181B0269
ENC-M101-Type 1 kit
181B0526
ENC-IN01-M12
181B0271
ENC-M103-Type 2 kit
181B0466
MI02 IP21 kit
181B0491
Vacon20 MI1~3 Option board mounting kit
181B0527
ENC-M104-Type 1 kit
181B0528
MI05 Type1 kit
130R1102
DrivePro ExWarr Work Shop PG01 36 Month
130R1104
DrivePro ExWarr Work Shop PG01 48 Month
130R1103
DrivePro ExWarr Work Shop PG01 42 Month
130R1105
DrivePro ExWarr Work Shop PG01 54 Month
130R1107
DrivePro ExWarr Work Shop PG01 66 Month
130R1106
DrivePro ExWarr Work Shop PG01 60 Month
130R1108
DrivePro ExWarr Work Shop PG01 72 Month
130R1101
DrivePro ExWarr Work Shop PG01 30 Month
130R1004
DrivePro ExWarr Onsite PG01 48 Months
130R1006
DrivePro ExWarr Onsite PG01 60 Months
UL E171278
Danfoss EU-UK 00736948 C1
Danfoss EU-UK 00737163.C1
PROFIBUS Z11465
T=C3=9CV 01 205 5215.02-21
VACON20_MI2
VACON10_MI2
MCAD VACON 10 MI02 IP20
VACON=C2=AE 20 Firmware
VACON=C2=AE OPT-E7 DeviceNet Firmware
VACON=C2=AE OPTE3/E5 PROFIBUS GSD
VACON=C2=AE OPTE6 CANopen EDS
VACON=C2=AE OPTE7 DeviceNet EDS
VACON=C2=AE OPTE9 EtherNet/IP EDS
VACON=C2=AE OPTE9 PROFINET IO GSDML
VACON=C2=AE OPTE9 SIMATIC PDM EDD
VACON=C2=AE OPTE9/EA EtherNet/IP Add-on Instructions
VACON=C2=AE OPTEC EtherCAT ESI
