137G8074
Part Number: 137G8074
Product Information
Extended Description

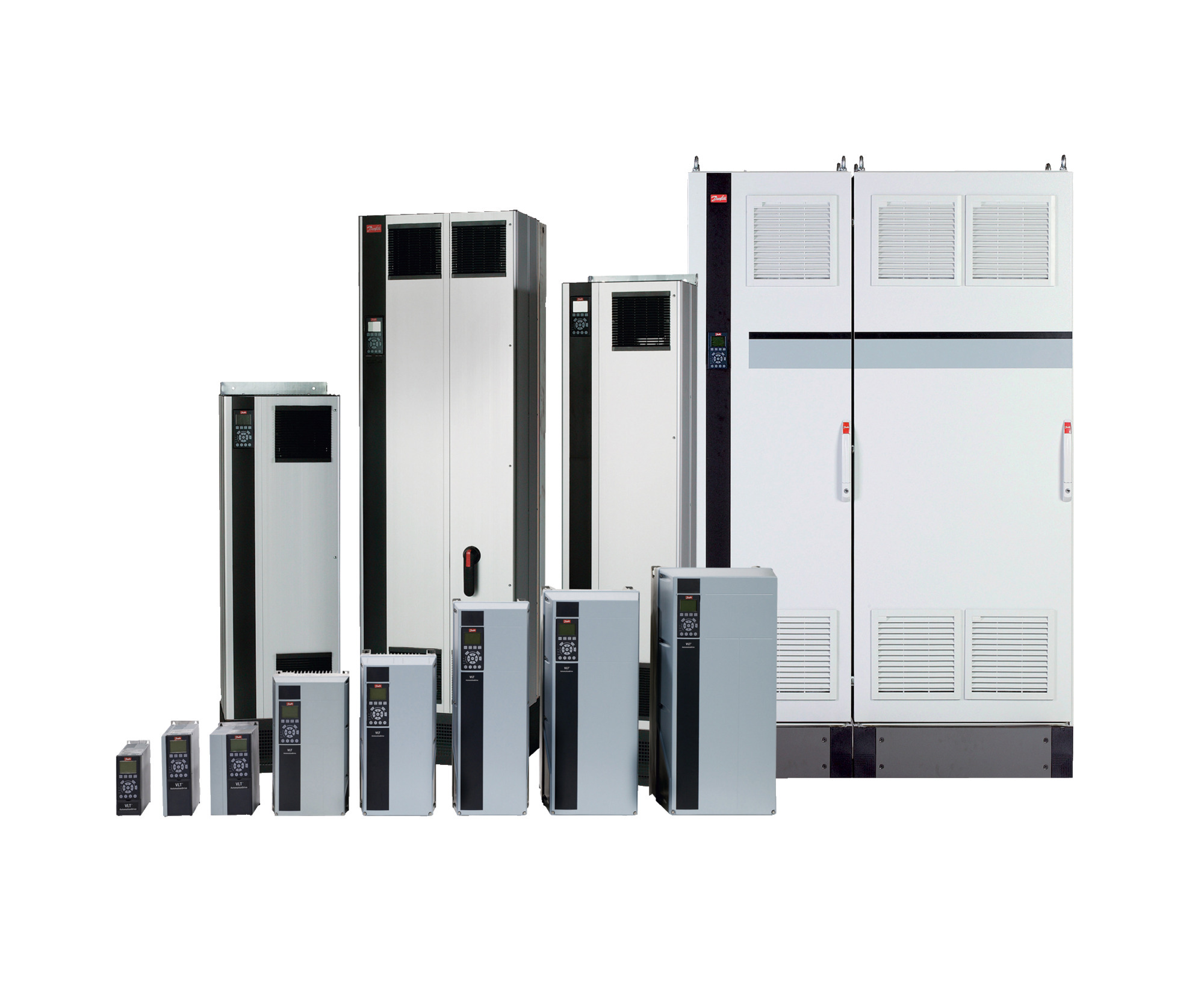

137G8074 Danfoss: Frequency converterFC-302P37KT5E20H2BGCXXXS067XAXBKCXXXXDXVLT=C2=AE AutomationDrive FC-302(P37K) 37 KW / 50 HP, Three phase380 - 500 VAC, (E20) IP20 / ChassisRFI FilterBrake chopperGraphical Loc. Cont. PanelCoated PCB, No Mains Option(S067)Integrated MotionControlFrame: C3No C1 option, No D optionNo A Option, MCB-101 General purp. I/OOther options according to Model code
Gross weight
34.76 kg
Net weight
33.41 kg
Volume
0 l
EAN
5715253343501
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE AutomationDrive FC-
Series
302 : 302
Power Rating
P37K : (P37K) 37 KW / 50 HP
Phase
T : Three phase
Mains Voltage
5 : 380 - 500 VAC
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H2 : RFI Filter
Brake - Safe Stop
B : Brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
S067 : (S067)Integrated MotionControl
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BK : MCB-101 General purp. I/O
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
C3 : C3
Typecode Part 1
FC-302P37KT5E20H2BGC
Typecode Part 2
XXXS067XAXBKCXXXXDX
Product Catalog
NO_VIEW : NO VIEW
Power 150% (HO) [KW]
37
Power 110% (NO) [KW]
45
Height [mm]
550,0
Width w/ no C options [mm]
308,0
Depth [mm]
333,0
Depth with Option A/B [mm]
333,0
kVA
50.6
Power Loss NO [W]
843
Power Loss HO [W]
697
Continuous Current (NO) [A]
90
Intermittent Current (NO) [A]
99
Continuous Current (HO) [A]
73
Intermittent Current (HO) [A]
110
Calculated Gross Weight [kg]
34.76
Calculated Net Weight [kg]
33.41
ECCN EU
Y901
ECCN US
3A999.a
Plant from Orderline
G103
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-302P37KT5E20H2BGC
Modelcode02
XXXS067XAXBKCXXXXDX
