137H1688

Part Number: 137H1688
137H1688
Manufacturer
Danfoss
Part number
137H1688
Category

Product Information

Extended Description

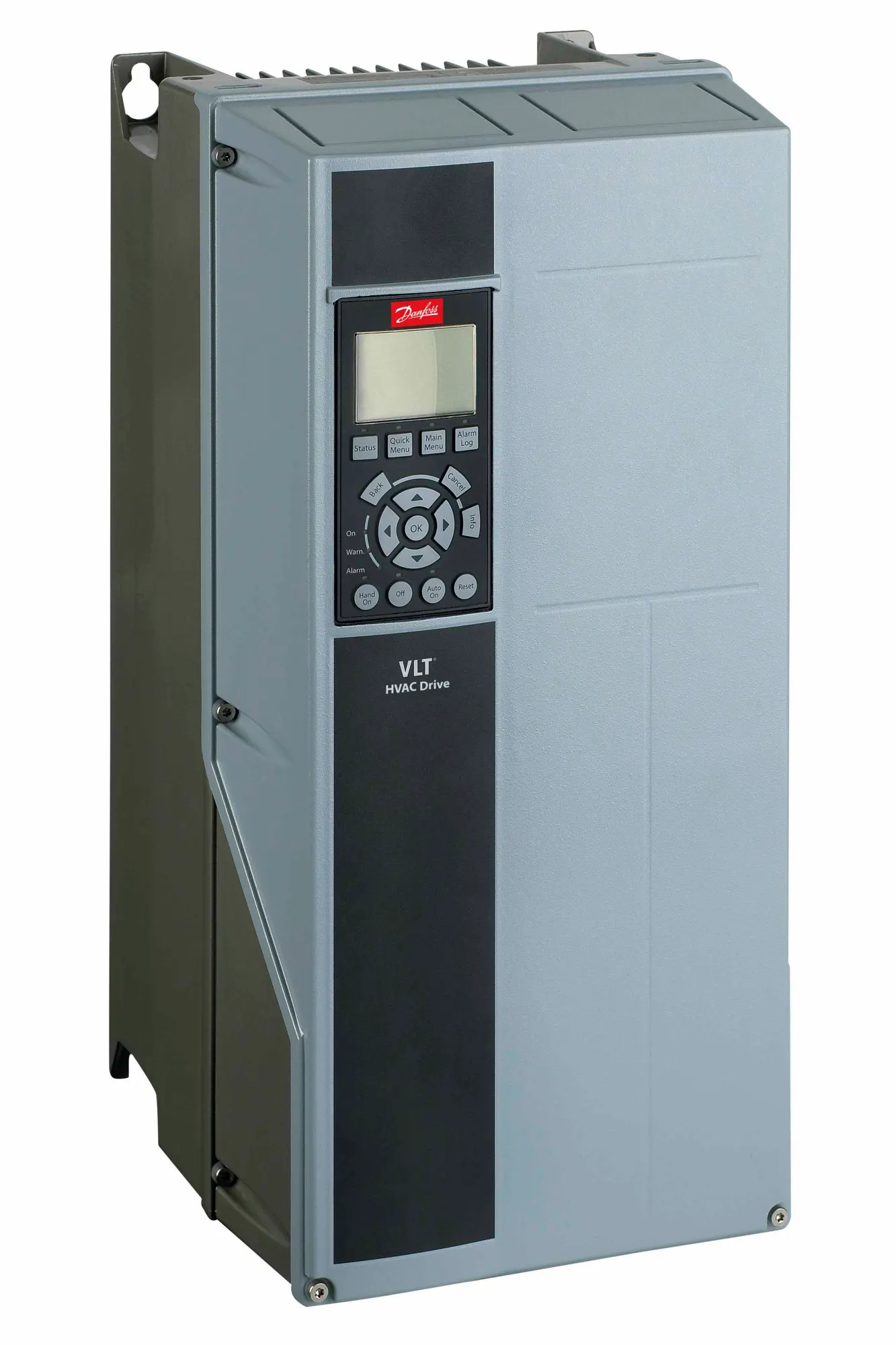

137H1688 Danfoss: Frequency ConverterFC-102P15KT4E66H3XGCXOXSXXXXA0BXCXXXXD0VLT=C2=AE HVAC Drive FC-102(P15K) 15 KW / 20 HP, Three phase380 - 480 VAC, (E66) IP66 / NEMA 4X(H3) RFI Class A1/B (C1)No brake chopperGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: B1No C1 option, MCB-107 24V DC backupPROFIBUS DP MCA 101, No B OptionOther options according to Model Code
Gross weight
28.3 kg
Net weight
28 kg
Volume
144.67 l
EAN
5715253382456
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
P15K : (P15K) 15 KW / 20 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E66 : (E66) IP66 / NEMA 4X
RFI Filter
H3 : (H3) RFI Class A1/B (C1)
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
X : No Mains Option
Adaptation A
O : Metric thread cable entry
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
A0 : PROFIBUS DP MCA 101
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
D0 : MCB-107 24V DC backup
Frame Size
B1 : B1
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102P15KT4E66H3XGC
Typecode Part 2
XOXSXXXXA0BXCXXXXD0
Power 110% (NO) [KW]
15
Height [mm]
494,0
Width w/ no C options [mm]
243,0
Depth [mm]
261,0
Depth with Option A/B [mm]
261,0
kVA
22.2
Power Loss NO [W]
392
Continuous Current (NO) [A]
32
Intermittent Current (NO) [A]
35.2
Calculated Gross Weight [kg]
22.4
Calculated Net Weight [kg]
22.1
ECCN EU
Y901
ECCN US
3A999.a
Plant from Orderline
B901
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102P15KT4E66H3XGC
Modelcode02
XOXSXXXXA0BXCXXXXD0
612Z1182
fuse,4a,3 x 32mm,super fast
130B3370
Gasket for front cover for frame size B1
130B9001
multiple 2 pole power combicon, 24V plug
130B4821
Cable entry for b1 with metric tread
130B1208
1xMCB 107 24V DC coat w. mount. brackets
130B1200
VLT=C2=AE Profibus DP V1 MCA 101, coated
130B0264
Cradle for A5,B1,B2,C1,C2,D2h enclosure
130B0295
sparepart/terminals accessory bag
130B1078
VLT=C2=AE Control Panel LCP 102, graphical
130B1077
Blindcover, w/ Danfoss logo, IP55/66
130B3434
Back plate IP66/Type 4X, SS, B1
130B4598
Weather shield f. outdoor instl A4 to B2
130B7533
Mounting Kit C Option, B/C/D/E/F(not B3)
130B5436
Side Fixture Mounting Kit
130B5435
DIN Rail Mounting Kit
130B1243
VLT=C2=AE Analog I/O Option MCB 109, coated
130B1170
LCP Panel Mounting Kit
130B1212
VLT=C2=AE General Purpose I/O MCB 101, ctd
130B1210
VLT=C2=AE Relay Option MCB 105, coated
130B1135
VLT=C2=AE PROFINET MCA 120, uncoated
130R1131
DrivePro ExWarr Work Shop PG04 30 Month
130R1134
DrivePro ExWarr Work Shop PG04 48 Month
130R1135
DrivePro ExWarr Work Shop PG04 54 Month
130R1137
DrivePro ExWarr Work Shop PG04 66 Month
130R1138
DrivePro ExWarr Work Shop PG04 72 Month
130R1136
DrivePro ExWarr Work Shop PG04 60 Month
130R1130
DrivePro ExWarr Work Shop PG04 24 Month
130R1132
DrivePro ExWarr Work Shop PG04 36 Month
130R1133
DrivePro ExWarr Work Shop PG04 42 Month
130R1034
DrivePro ExWarr Onsite PG04 48 Months
