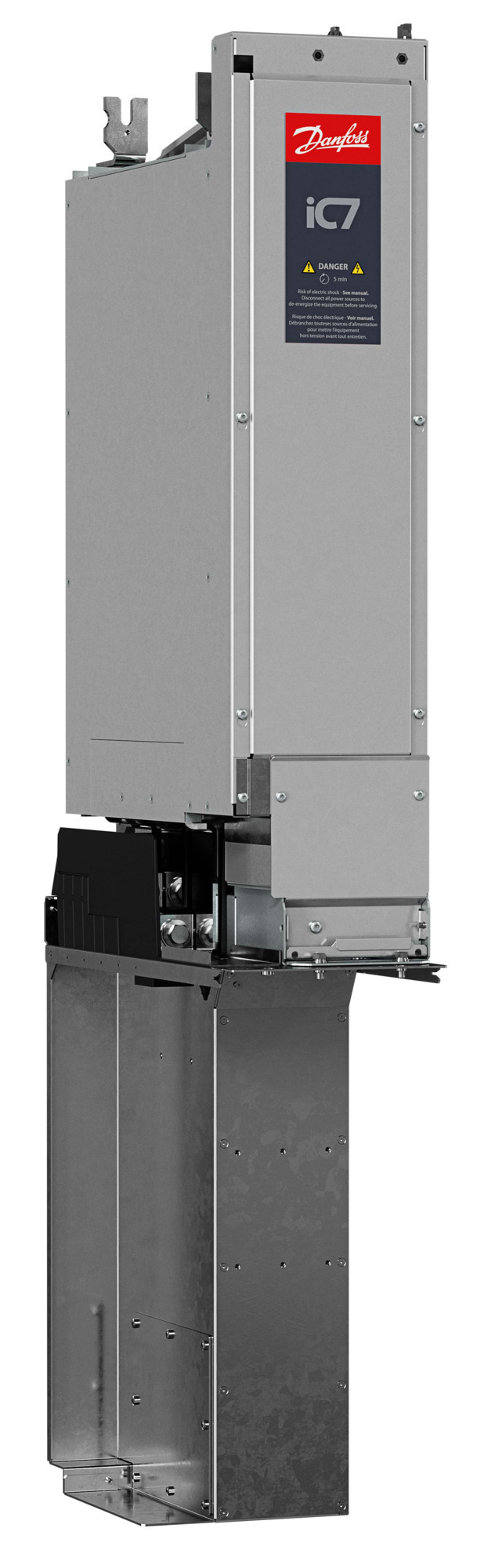

137H1904

Part Number: 137H1904
137H1904
Manufacturer
Danfoss
Part number
137H1904
Category

Product Information

Extended Description

137H1904 Danfoss: iC7-AutomationSystem module, air-cooledIC7-60SA3A05-816AE00F4+AE10+BAMT+BDC1+BEXX+BF20+BGK1+BH15+BK15+DAAU+EGIN+EHENIP00/Open Type, Frame: AR113~, regenerative, AFE, 380-500 V AC, 816 AEMC category: C4 categoryControl Panel 2.8 OPX20Standard I/O: I/O and Relay Option OC7C1Modbus TCP OS7MTFunctional Safety: None, not upgradableOther options according to model code
Gross weight
118 kg
Net weight
88 kg
Volume
0 l
EAN
5715253384627
Help Counter
1
Typecode Part 1
7SM-AUSA3A05-816AE00F4
Typecode Part 2
-000106956
Calculated Gross Weight [kg]
118
Calculated Net Weight [kg]
88
Vendor
ERR01 : Cannot Determine Vendor
ECCN EU
EAR99
ECCN US
3A999.a
Product series
+DAAU : iC7-Automation
Product group
IC7-60 : iC7-60
Product category
SA : System module, air-cooled
Product type
3A : 3~, regenerative, AFE
Mains voltage
05 : 380-500 V AC
Current rating
-816A : 816 A
Power rating
XXX : Not relevant
Protection rating
E00 : IP00/Open Type
EMC category
F4 : C4 category
Integration unit
+AE10 : Standard, no filter
Mains input device
+AJXX : None
DC fuses and devices
+AKXX : None
Cooling circuit connector type
+ANXX : Not relevant
Cooling circuit hose length
+AOXX : Not relevant
Marine construction
+AFXX : None
Extra environmental protection
+AGCX : Coated boards
Communication interface, X1/X2
+BAMT : Modbus TCP OS7MT
Communication interface, X0
+BBEL : Ethernet port, no protocol
Standard I/O
+BDC1 : I/O and Relay Option OC7C1
Functional safety
+BEXX : None, not upgradable
Control panel
+BF20 : Control Panel 2.8 OPX20
Control panel mounting type
+BGK1 : Flush mount
Control panel cable length
+BH15 : 1.5 m (5 ft)
Control unit cable length
+BK15 : 1.5 m (5 ft), Fiber
StarCoupler board cable length
+BLXX : None
Option slot A
+CAXX : None, without mounting p
Option slot B
+CBXX : None, without mounting plate
Option slot C
+CCXX : None, without mounting plate
Option slot D
+CDXX : None, without mounting plate
Option slot E
+CEXX : None, without mounting plate
Option slot F
+CFXX : None, without mounting plate
Option slot G
+CGXX : None, without mounting plate
Option slot H
+CHXX : None, without mounting plate
Option slot I
+CIXX : None, without mounting plate
Option slot J
+CJXX : None, without mounting plate
Language package
+EL01 : Global
Customer specific application
+DBXX : None
Additional drive features 1
+DD1X : None
Additional drive features 2
+DE2X : None
Additional drive features 3
+DF3X : None
Additional drive features 4
+DG4X : None
Additional drive features 5
+DH5X : None
High speed enabled
+DI6X : No
Customization file package ID
+EAXXXXXX : No customization
Product software ID
+ECXXX : Latest released version
Technical documentation
+EGIN : Installation guide
Documentation language
+EHEN : English
Customer-specific label
+EJXX : None
Shipping package
+TACB : Cardboard box package
Product specific marine cert.
+VBXX : None
Frame designation
AR11 : AR11
Modelcode01
IC7-60SA3A05-816AE00F4
Modelcode02
+AE10
Modelcode03
+BAMT+BDC1+BEXX+BF20
Modelcode04
+BGK1+BH15+BK15
Modelcode06
+DAAU
Modelcode08
+EGIN+EHEN
Product Catalog
NO_VIEW : NO VIEW
check if complete
OK
Cooling type
Air Cooled
Enclosure rating
IP00 / OPEN TYPE
Input frequency
50/60Hz
Short circuit current rating
100kA
AC voltage
3X380-500VAC
DC Bus voltage
465-740VDC
Storage temperature
-40...70=C2=B0C/-40...158=C2=B0F
Nominal AC current
833A(400VAC)/747A(480VAC)
DC Bus current
953A(594VDC)
Apparent power
566KVA(400VAC)
DC power
566KW(594VDC)
Main unit Width
235MM/9.3IN
Main unit Depth
553MM/21.8IN
Main unit Height
1530MM/60.2IN
Product Type - DrivesSymbol
3 phase regenerative, AFE
Product Category -DrivesSymbol
System module, air-cooled
Product View (Switch)
GLBL : Global (Standard)
Salescode part 1
IC7-60SA3A05-816AE00F4
Salescode part 2
+AE10
Salescode part 3
+BAMT+BDC1+BEXX+BF20
Salescode part 4
+BGK1+BH15+BK15
Salescode part 5
+DAAU
Salescode part 6
+EGIN+EHEN
181B5477
Fuse 750VAC 1200A aR Size44 Type TTF
181B5888
DrivePro Gateway Medium
181B5905
Control unit w/o safety interface board
181B5941
Supply voltage 24VDC wire to control
181B5938
Control wire harnesses for NBU I10/I11
181B5939
LC/LC Duplex multimode cable 52cm
181B5940
Power wire harnesses for NBU I10/I11
181B5942
Resistor 4,7kOhm (NTC) kit
181B5943
Capacitor 4400uF 420VDC for I10 NBU
181B5944
Capacitor 5200uF 420VDC for I11 NBU
181B5991
iC7 AFE/GC pre-charging unit 20 IEC
181B5990
iC7 AFE/GC pre-charging unit 10 IEC
181B5992
iC7 AFE/GC pre-charging unit 30 IEC
181B6066
iC7 AFE/GC pre-charging unit 20 UL
181B6065
iC7 AFE/GC pre-charging unit 10 UL
181B6067
iC7 AFE/GC pre-charging unit 30 UL
181B6068
iC7 Optical fiber cable 0,3m
181B6069
iC7 Optical fiber cable 1,5m
181B6070
iC7 Optical fiber cable 2,5m
181B6071
iC7 Optical fiber cable 5m
