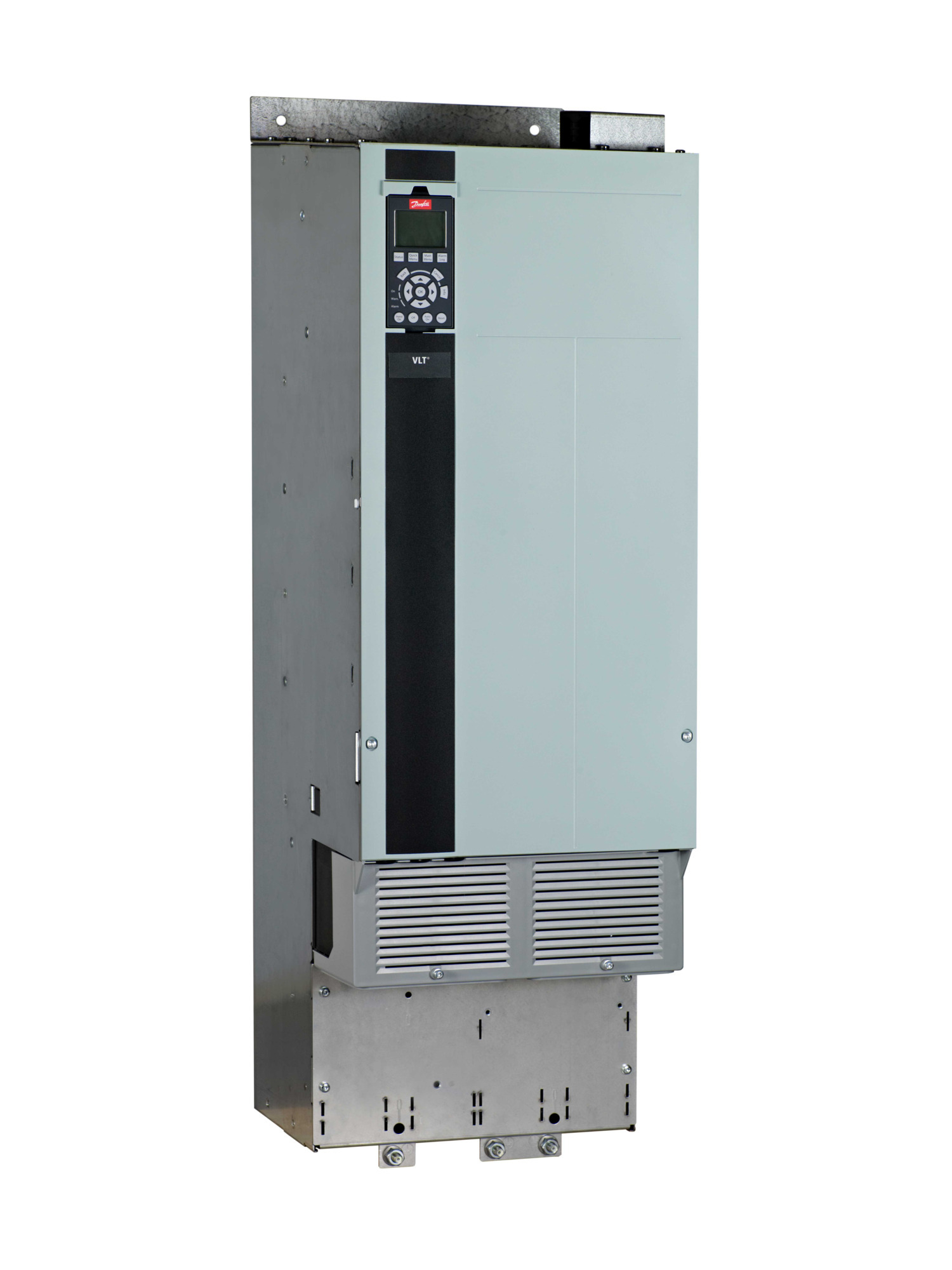

137H1972

Part Number: 137H1972
137H1972
Manufacturer
Danfoss
Part number
137H1972
Category

Product Information

Extended Description

137H1972 Danfoss: Frequency converterFC-302N160T5E20H4XGC7XXSXXXXAXBRCXXXXDXVLT=C2=AE AutomationDrive FC-302(N160) 160 KW / 250 HP, Three phase380 - 500 VAC, (E20) IP20 / ChassisRFI class A1 (C2)No brake chopperGraphical Loc. Cont. PanelCoated PCB, FuseLatest release std. SW.Frame: D4HNo C1 option, No D optionNo A Option, MCB-102 Encoder OptionOther options according to Model code
Gross weight
125.3 kg
Net weight
125 kg
Volume
0 l
EAN
5715253385303
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE AutomationDrive FC-
Series
302 : 302
Power Rating
N160 : (N160) 160 KW / 250 HP
Phase
T : Three phase
Mains Voltage
5 : 380 - 500 VAC
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H4 : RFI class A1 (C2)
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
7 : Fuse
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BR : MCB-102 Encoder Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
D4H : D4H
Typecode Part 1
FC-302N160T5E20H4XGC
Typecode Part 2
7XXSXXXXAXBRCXXXXDX
Product Catalog
NO_VIEW : NO VIEW
Power 150% (HO) [KW]
160
Power 110% (NO) [KW]
200
Height [mm]
1122,0
Height w/ Regen/Loadshare [mm]
1268,0
Width w/ no C options [mm]
350,0
Depth [mm]
375,0
Depth with Option A/B [mm]
375,0
kVA
218
Continuous Current (NO) [A]
395
Intermittent Current (NO) [A]
435
Continuous Current (HO) [A]
315
Intermittent Current (HO) [A]
472
Calculated Gross Weight [kg]
125.3
Calculated Net Weight [kg]
125
ECCN EU
Y901
ECCN US
3A999.a
Plant from Orderline
D801
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-302N160T5E20H4XGC
Modelcode02
7XXSXXXXAXBRCXXXXDX
176F3527
kit,cooling,in bottom out back,d2h d4h
176F3628
Cooling Kit, in btm/out top, 1800mm D4h
176F3626
Cooling Kit, in back/out back, D4h
176F3655
Cooling Kit, in back/out back, SS, D4h
176F3649
Cooling Kit, in back/out back, D2h
176F3634
Cooling Kit, in back/out back, D4h
176F3630
Cooling Kit, in btm/out top, 2000mm, D4h
176F3410
Adapter Plate, D2h/D4h
130B7635
VLT=C2=AE Lift Controller MCO 361
130B7145
VLT=C2=AE SALT Controller MCO 360
134G8893
FC-302N250T5E20H4BGR7XXSXXXXAXBXCXXXXDX
130R1153
DrivePro ExWarr Work Shop PG06 42 Month
130R1156
DrivePro ExWarr Work Shop PG06 60 Month
130R1152
DrivePro ExWarr Work Shop PG06 36 Month
130R1154
DrivePro ExWarr Work Shop PG06 48 Month
130R1155
DrivePro ExWarr Work Shop PG06 54 Month
130R1151
DrivePro ExWarr Work Shop PG06 30 Month
130R1150
DrivePro ExWarr Work Shop PG06 24 Month
130R1157
DrivePro ExWarr Work Shop PG06 66 Month
130R1158
DrivePro ExWarr Work Shop PG06 72 Month
