137H4201

Part Number: 137H4201
137H4201
Manufacturer
Danfoss
Part number
137H4201
Category

Product Information

Extended Description

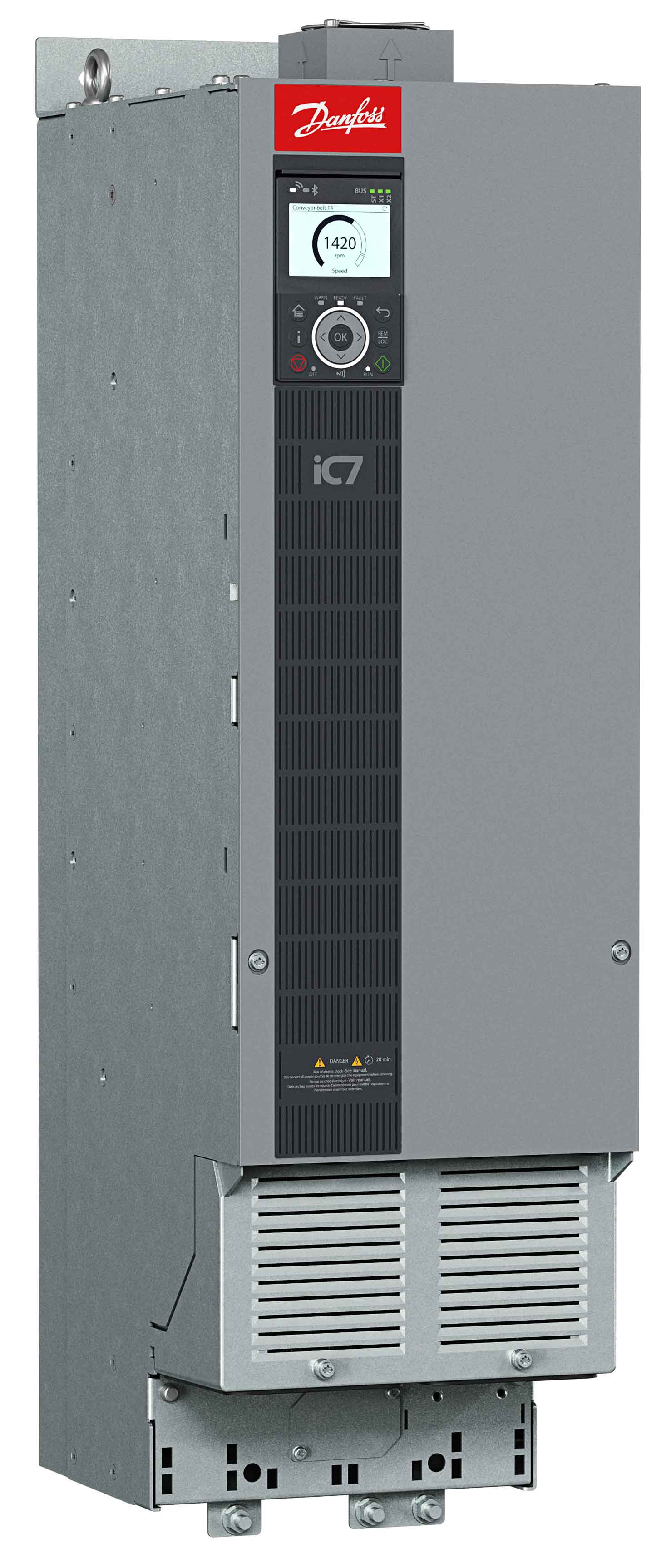

137H4201 Danfoss: iC7-AutomationFrequency converter,air-cooledIC7-60FA3N05-302AE20F3+AGCX+BAPR+BDBA+BEF1+BF20+CAM0+DAAUIP20/Open Type, Frame: FA093~, 380-500 V AC,302 AEMC category: C3 categoryControl Panel 2.8 OPX20Standard I/O: 4xDI, 2xDI/O, 2xAI, 1xAO, 2xROPROFINET RT OS7PRFunctional Safety: STO, not upgradableOther options according to model code
Gross weight
75.29 kg
Net weight
62.22 kg
Volume
0 l
EAN
5715253409504
Help Counter
1
Typecode Part 1
7FC-AUFA3N05-302AE20F3
Typecode Part 2
-000109941
Calculated Gross Weight [kg]
75.33
Calculated Net Weight [kg]
62.22
Vendor
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
Product series
+DAAU : iC7-Automation
Product group
IC7-60 : iC7-60
Product category
FA : Frequency converter,air-cooled
Product type
3N : 3~
Mains voltage
05 : 380-500 V AC
Current rating
-302A : 302 A
Power rating
160 : 160 kW/250 hp
Protection rating
E20 : IP20/Open Type
EMC category
F3 : C3 category
Cable entry and EMC plate
+AAST : Standard plate
Integrated brake chopper
+ACXX : None
Extra environmental protection
+AGCX : Coated boards
Humidity protection device
+AHXX : None
Mains input device
+AJXX : None
DC terminals
+ALXX : None
Touch protection
+AMXX : None
Heat sink access panel
+APXX : None
Communication interface, X1/X2
+BAPR : PROFINET RT OS7PR
Standard I/O
+BDBA : 4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO
Functional safety
+BEF1 : STO, not upgradable
Control panel
+BF20 : Control Panel 2.8 OPX20
Interface board
+BISR : MicroSD card reader and RTC
Option slot A
+CAM0 : Encoder/Resolver Option OC7M0
Option slot B
+CBXX : None, not upgradable
Option slot C
+CCX0 : None
Option slot D
+CDX0 : None
Option Slot E
+CEX0 : None
Product software ID
+ECXXX : Latest released version
Technical documentation
+EGIN : Installation guide
Integrated common-mode filter
+AIXX : None
Communication interface, X0
+BBEL : Ethernet port, no protocol
Customer specific application
+DBXX : None
Additional drive features 1
+DD1X : None
Additional drive features 2
+DE2X : None
Additional drive features 3
+DF3X : None
Additional drive features 4
+DG4X : None
Additional drive features 5
+DH5X : None
High speed enabled
+DI6X : No
Customization file package ID
+EAXXXXXX : No customization
Customer-specific label
+EJXX : None
Language package
+EL01 : Global
Product specific marine cert.
+VBXX : None
Frame designation
FA09 : FA09
Modelcode01
IC7-60FA3N05-302AE20F3
Modelcode02
+AGCX
Modelcode03
+BAPR+BDBA
Modelcode04
+BEF1+BF20+CAM0
Modelcode05
+DAAU
Product Catalog
NO_VIEW : NO VIEW
Efficiency class-Relative loss
IE2 - 1.93%
Maximum Power Loss LO [W]
3438
Enclosure rating
IP20 / OPEN TYPE
Input frequency
50/60Hz
Output frequency
0-590Hz
Input current in Normal Overlo
291/291A
Short circuit current rating
100kA
Ambient temp. high overload
45=C2=B0C/113=C2=B0F
Ambient temp. normal overload
40=C2=B0C/104=C2=B0F
Input Voltage
3x380-500V
Typical motor power PL (110%)
160KW(400V)/250HP(460V)
Typical motor power PH (150%)
132KW(400V)/200HP(460V)
Continous current IL (1/10min)
302/302A
Continous current IH (1/10min)
245/240A
Continous current IH (1/5min)
206/196A
Main unit Width
250
Main unit Height
909
Main unit Depth
370
Product View (Switch)
GLBL : Global (Standard)
176F3433
Disconnect 400A 690V
176F8323
IGBT snubber cap 1000V 1.5uF
176F8318
Rectifier SCR 181A 1600V
176F6515
Current sensor 300A
176F3172
Fuse 400A 700V Square Body
176F3165
Mixing Fan DC 40x28
176F3155
Current scaling board 3.11 ohm
176F6692
tool, capacitor removal/installation
176F3981
Wire assy PwrBrd-inrush CBL8 Fx09
176F3971
Wire assy PwrBrd-DC CBL5 Fx09
176F4038
In-bottom/out-top cooling kit,FA09
176F4040
In-bottom/out-back cooling kit,FA09
176F4042
In-back/out-top cooling kit,FA09
176F4045
In-back/out-back cooling kit,FA09
136B1569
Encoder/Resolver Option OC7M0
136B2055
Blind Panel OPX00
136B2084
Control panel cable 2.5m
136B2085
Control panel cable 5 m
136B2086
Control panel cable 10 m
136B3128
Control Panel 2.8 OPX20
130R1153
DrivePro ExWarr Work Shop PG06 42 Month
130R1156
DrivePro ExWarr Work Shop PG06 60 Month
130R1152
DrivePro ExWarr Work Shop PG06 36 Month
130R1154
DrivePro ExWarr Work Shop PG06 48 Month
130R1155
DrivePro ExWarr Work Shop PG06 54 Month
130R1151
DrivePro ExWarr Work Shop PG06 30 Month
130R1150
DrivePro ExWarr Work Shop PG06 24 Month
130R1157
DrivePro ExWarr Work Shop PG06 66 Month
130R1158
DrivePro ExWarr Work Shop PG06 72 Month
130R1057
DrivePro ExWarr Onsite PG06 66 Months
