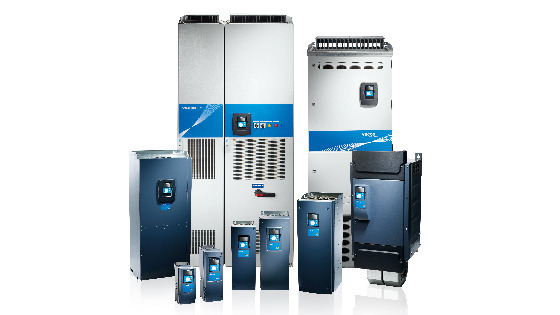

137H7558

Part Number: 137H7558
137H7558
Manufacturer
Danfoss
Part number
137H7558
Category

Product Information

Extended Description

137H7558 Danfoss: NXP11806-A0N0SSG-A1A2B40000+FL21+APFIFF11+GNKC+GNUA+GNEAVacon NXP Frequency Converter525 =E2=80=93 690 Vac (640-1100 Vdc), 1180 Amp,IP00Alpha-numeric displayno EMC protectionNo BrakeA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 2RO(NO/NC)C Slot: AI,2AO(mA,isol),+24V/EXTD Slot: No boardE Slot: No boardManual: EnglishFrame 13Other options according to Model code
Gross weight
693 kg
Net weight
692 kg
Volume
0 l
EAN
5715253444628
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXP : NXP Frequency Converter
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
6- : 525 =E2=80=93 690 Vac (640-1100 Vdc)
Current
1180 : 1180 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
0 : IP00
EMC emission levels
N : no EMC protection
Brake Chopper
0 : No Brake
Electrical Modification
S : 6-pulse with choke
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
B4 : AI,2AO(mA,isol),+24V/EXT
Option Slot D
00 : No board
Option Slot E
00 : No board
Firmware language package
+FL21 : UK,FI,SE,DK,DE;Nordic
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+APFIFF11 : Shaft synch appl NXP,NXI
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT : RCM Approval N16307
Marine approval
NONE : no marine approval
KC Approval
+GNKC : No Korean Approval
Ukrainian Approval
+GNUA : No Ukrainian Approval
EAC Approval
+GNEA : No EAC Approval
Region
-R00 : International (-R00)
Frame Size
FR13 : Frame 13
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DP-118060
Typecode Part 2
-000114103
Salestext
FR1311806-0N
Modelcode01
NXP11806-A0N0SSG-
Modelcode02
A1A2B40000
Modelcode03
+FL21
Modelcode04
+APFIFF11
Modelcode06
+GNKC+GNUA+GNEA
Calculated Net Weight [kg]
692
Calculated Gross Weight [kg]
693
Motor Power Low Overload [kW]
1150
Motor Power High Overload [kW]
1000
Continuous Current (NO) [A]
1180
Continuous Current (HO) [A]
1030
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DP-118060
check if complete
OK
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
Recommended Plant
ERR01
181B0325
OPT-E3-V:PROFIBUS DP
181B1930
OPT-A1-V+DNOT:6DI,DO,2AI,1AO,+10Vr,+24V
181B0586
OPT-E7-V:DeviceNet
181B0287
OPT-A1-V:6DI,DO,2AI,1AO,+10Vr,+24V
181B0761
OPT-EC-V:EtherCAT
181B3287
OPT-EA-V:Advanced 2-port ethernet
181B1468
OPT-A2-V+DNOT:2RO(NO/NC)
181B1469
OPT-A4-V+DLES:3DI (Enc.RS422), +5V/+15V
181B1470
OPT-A5-V+DLES:3DI(Enc.10-24V),15/24Vout
181B1471
OPT-AN-V+DNOT:6DI,2AI,2AO,10/-10Vref,24V
130R1084
DrivePro ExWarr Onsite PG09 48 Months
130R1087
DrivePro ExWarr Onsite PG09 66 Months
130R1080
DrivePro ExWarr Onsite PG09 24 Months
130R1082
DrivePro ExWarr Onsite PG09 36 Months
130R1081
DrivePro ExWarr Onsite PG09 30 Months
130R1086
DrivePro ExWarr Onsite PG09 60 Months
130R1182
DrivePro ExWarr Work Shop PG09 36 Month
130R1183
DrivePro ExWarr Work Shop PG09 42 Month
130R1184
DrivePro ExWarr Work Shop PG09 48 Month
130R1186
DrivePro ExWarr Work Shop PG09 60 Month
Encoder-less Safety using DOLD Module VACON Condition-based Monitoring VACON=C2=AE NX All in One Application Guide VACON NXP Common DC Bus Selection Guide VACON NXP Grid Converter Selection Guide VACON NXP System Drive Selection Guide VACON=C2=AE NX Door Keypad Mounting Instr. VACON=C2=AE NXP IP00 Modules Quick Guide VACON-NX-Line-Voltage-Measurement-OG VACON=C2=AE NXP IP00 Modules Danfoss MD 00779152 B2 IFA 2001240 UL E171278 Danfoss EU DPD02212.C Danfoss EU-UK 00736939.E1 Danfoss EU-UK 00760715 D1 Danfoss EU-UK DPD01854 E T=C3=9CV CM-088-17 T=C3=9CV Z10 099224 0001 Rev. 01 Danfoss MD 00773531.A2 OPTA1_VACON_NX MCAD VACON NXS NXP FR13 IP00 OPTA2_VACON_NX VACON=C2=AE NXP Advanced Application VACON=C2=AE NCDrive VACON=C2=AE OPT-C7 DeviceNet Firmware VACON=C2=AE OPT-C2 Modbus RTU / N2 Firmware VACON=C2=AE OPT-C3/C5 PROFIBUS DP Firmware VACON=C2=AE OPT-CG S2 Protocol Firmware VACON=C2=AE OPT-CJ BACnet MS/TP Firmware VACON=C2=AE OPT-C4 LonWorks Firmware VACON=C2=AE OPT-CI Modbus TCP/IP Firmware VACON=C2=AE OPT-CP PROFINET IO Firmware
