137H8138

Part Number: 137H8138
137H8138
Manufacturer
Danfoss
Part number
137H8138
Category

Product Information

Extended Description

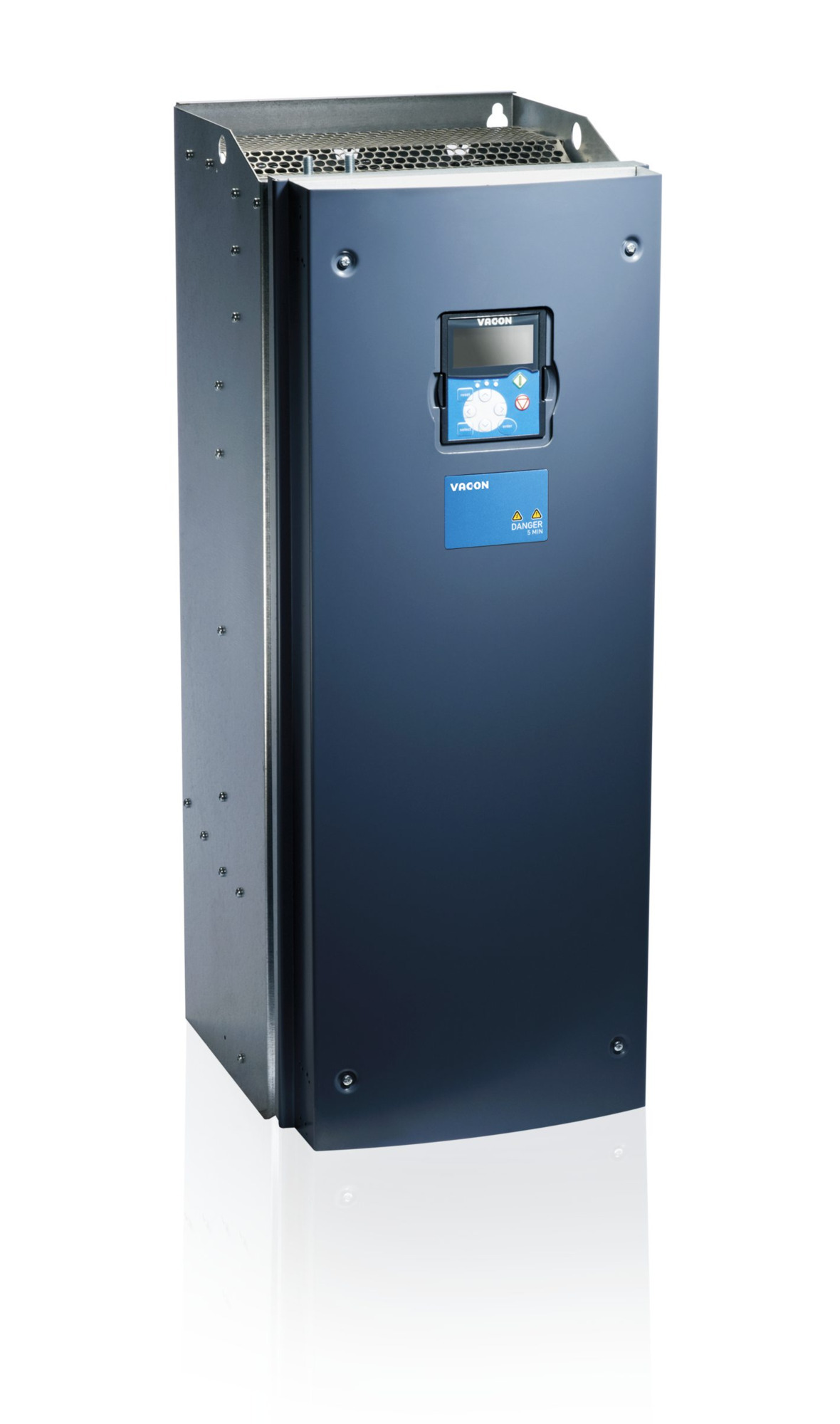

137H8138 Danfoss: NXP02055-A5T0SSV-A1A20000E2+DPAP+GALRVacon NXP Frequency Converter380 =E2=80=93 500 Vac (465-800 Vdc), 205 Amp,IP54/NEMA12Alpha-numeric displayIEC61800-3 for IT networksNo BrakeA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 2RO(NO/NC)C Slot: No boardD Slot: No boardE Slot: RS485 (Modbus/N2)Manual: EnglishFrame 08Other options according to Model code
Gross weight
59 kg
Net weight
58 kg
Volume
0 l
EAN
5715253450773
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXP : NXP Frequency Converter
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
5- : 380 =E2=80=93 500 Vac (465-800 Vdc)
Current
0205 : 205 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
5 : IP54/NEMA12
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
S : 6-pulse with choke
Card Modifications
V- : DirectConn. w Varnished Boards
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGLC : Inch conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
00 : No board
Option Slot D
00 : No board
Option Slot E
E2 : RS485 (Modbus/N2)
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+A000 : No Special Application
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
+GALR : Lloyds register
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FR08 : Frame 08
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DP-020555
Typecode Part 2
-000114696
Salestext
FR0802055-5T
Modelcode01
NXP02055-A5T0SSV-
Modelcode02
A1A20000E2
Modelcode05
+DPAP+GALR
Calculated Net Weight [kg]
58
Calculated Gross Weight [kg]
59
Motor Power Low Overload [kW]
110
Motor Power High Overload [kW]
90
Dimensions WxHxD [mm]
288X758X344
Continuous Current (NO) [A]
205
Continuous Current (HO) [A]
170
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DP-020555
check if complete
OK
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
Recommended Plant
ERR01
181B1562
Control box assembly NX light blue
181B1571
Front cover kit IP54 dark grey
181B1584
Fan plate
181B1639
"Terminal connector R-, R+"
181B1638
Terminal connector 23-21
181B1636
M6x12 ISO7380 Z4-1 TX ZN
181B1635
M10 Sesko SFS 3738 KP 250
181B1634
M10 Spring washer DIN 679
181B1633
M4x8 DIN 84 PA 1000pcs
181B1632
M6x14 DIN 7985 Z4-1 TX ZN
181B0325
OPT-E3-V:PROFIBUS DP
181B1930
OPT-A1-V+DNOT:6DI,DO,2AI,1AO,+10Vr,+24V
181B0586
OPT-E7-V:DeviceNet
181B0287
OPT-A1-V:6DI,DO,2AI,1AO,+10Vr,+24V
181B0761
OPT-EC-V:EtherCAT
181B3287
OPT-EA-V:Advanced 2-port ethernet
181B1468
OPT-A2-V+DNOT:2RO(NO/NC)
181B1469
OPT-A4-V+DLES:3DI (Enc.RS422), +5V/+15V
181B1470
OPT-A5-V+DLES:3DI(Enc.10-24V),15/24Vout
181B1471
OPT-AN-V+DNOT:6DI,2AI,2AO,10/-10Vref,24V
130R1140
DrivePro ExWarr Work Shop PG05 24 Month
130R1141
DrivePro ExWarr Work Shop PG05 30 Month
130R1142
DrivePro ExWarr Work Shop PG05 36 Month
130R1144
DrivePro ExWarr Work Shop PG05 48 Month
130R1145
DrivePro ExWarr Work Shop PG05 54 Month
130R1143
DrivePro ExWarr Work Shop PG05 42 Month
130R1147
DrivePro ExWarr Work Shop PG05 66 Month
130R1148
DrivePro ExWarr Work Shop PG05 72 Month
130R1146
DrivePro ExWarr Work Shop PG05 60 Month
130R1044
DrivePro ExWarr Onsite PG05 48 Months
Encoder-less Safety using DOLD Module VACON Condition-based Monitoring VACON=C2=AE NX All in One Application Guide VACON NXP Common DC Bus Selection Guide VACON NXP Grid Converter Selection Guide VACON NXP System Drive Selection Guide VACON=C2=AE NX Door Keypad Mounting Instr. VACON-NX-Line-Voltage-Measurement-OG VACON=C2=AE NXS NXP Air-cooled OG Cybersecurity for Vacon NX Drives Danfoss MD 00779152 B2 IFA 2001240 UL E171278 Danfoss EU DPD02212.C Danfoss EU-UK 00736939.E1 Danfoss EU-UK 00760715 D1 Danfoss EU-UK DPD01854 E T=C3=9CV CM-088-17 T=C3=9CV Z10 099224 0001 Rev. 01 Danfoss MD 00773531.A2 VaconNXP_FR8_IP54 MCAD VACON NXS NXP FR8 IP54 MCAD VACON NXS NXP FR8 IP54 DC cover OPTA1_VACON_NX MCAD VACON NXS NXP FR8 IP54 Control MCAD VACON NXS NXP FR8 IP54 Conduit box MCAD VACON NXS NXP FR8 IP54 Connections MCAD VACON NXS NXP FR8 IP54 DC terminal MCAD VACON NXS NXP FR8 IP54 Flange OPTA2_VACON_NX VACON=C2=AE NXP Advanced Application VACON=C2=AE NCDrive VACON=C2=AE OPT-C7 DeviceNet Firmware VACON=C2=AE OPT-C2 Modbus RTU / N2 Firmware VACON=C2=AE OPT-C3/C5 PROFIBUS DP Firmware VACON=C2=AE OPT-CG S2 Protocol Firmware VACON=C2=AE OPT-CJ BACnet MS/TP Firmware VACON=C2=AE OPT-C4 LonWorks Firmware VACON=C2=AE OPT-CI Modbus TCP/IP Firmware VACON=C2=AE OPT-CP PROFINET IO Firmware
