137H8175

Part Number: 137H8175
137H8175
Manufacturer
Danfoss
Part number
137H8175
Category

Product Information

Extended Description

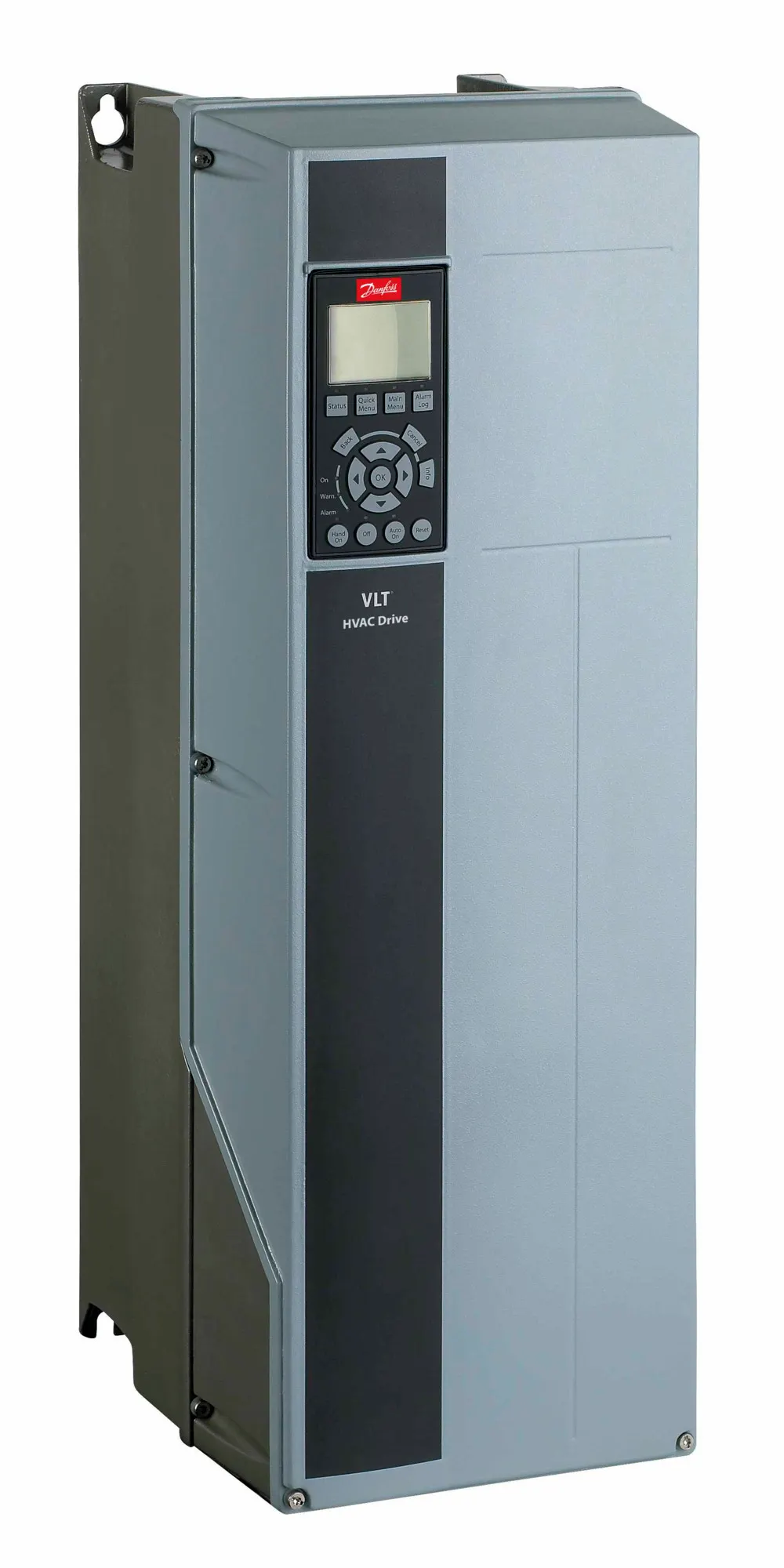

137H8175 Danfoss: Frequency converterFC-202P30KT4E55H1XGXXXXSXXXXAXBXCXXXXD1VLT=C2=AE AQUA Drive FC-202(P30K) 30 KW / 40 HP, Three phase380 - 480 VAC, IP55 / Type 12(H1) RFI Class A1/B (C1)No brake chopperGraphical Loc. Cont. PanelNot coated PCB, No Mains OptionLatest release std. SW.Frame: B2No C1 option, MCB-117 Real time clock optionNo A Option, No B OptionOther options according to Model code
Gross weight
30.09 kg
Net weight
29.14 kg
Volume
0 l
EAN
5715253451152
Product View (Switch)
NAMC : North America (Regional)
Product Group
FC- : VLT=C2=AE AQUA Drive FC-
Series
202 : 202
Power Rating
P30K : (P30K) 30 KW / 40 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E55 : IP55 / Type 12
RFI Filter
H1 : (H1) RFI Class A1/B (C1)
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
X : Not coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
D1 : MCB-117 Real time clock option
Frame Size
B2 : B2
Typecode Part 1
FC-202P30KT4E55H1XGX
Typecode Part 2
XXXSXXXXAXBXCXXXXD1
Product Catalog
NO_VIEW : NO VIEW
Power 160% (HO) [KW]
22
Power 110% (NO) [KW]
30
Height [mm]
664,0
Width w/ no C options [mm]
243,0
Depth [mm]
261,0
Depth with Option A/B [mm]
261,0
kVA
42.3
Power Loss NO [W]
739
Power Loss HO [W]
547
Continuous Current (NO) [A]
61
Intermittent Current (NO) [A]
67.1
Continuous Current (HO) [A]
44
Intermittent Current (HO) [A]
70.4
Calculated Gross Weight [kg]
30.09
Calculated Net Weight [kg]
29.14
ECCN EU
Y901
ECCN US
3A999.a
Plant from Orderline
F605
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-202P30KT4E55H1XGX
Modelcode02
XXXSXXXXAXBXCXXXXD1
130B3397
Back plate IP21/Type 1, IP55/Type 12, B2
130B4598
Weather shield f. outdoor instl A4 to B2
130B7533
Mounting Kit C Option, B/C/D/E/F(not B3)
130B5436
Side Fixture Mounting Kit
130B5435
DIN Rail Mounting Kit
130B1235
VLT=C2=AE PROFINET MCA 120, coated
130B1243
VLT=C2=AE Analog I/O Option MCB 109, coated
130B1219
VLT=C2=AE EtherNet IP MCA 121, coated
130B1218
VLT=C2=AE Ext. Cascade Contr. MCO 101, ctd
130B1254
VLT=C2=AE Adv. Cascade Contr. MCO 102, ctd
130R1131
DrivePro ExWarr Work Shop PG04 30 Month
130R1134
DrivePro ExWarr Work Shop PG04 48 Month
130R1135
DrivePro ExWarr Work Shop PG04 54 Month
130R1137
DrivePro ExWarr Work Shop PG04 66 Month
130R1138
DrivePro ExWarr Work Shop PG04 72 Month
130R1136
DrivePro ExWarr Work Shop PG04 60 Month
130R1130
DrivePro ExWarr Work Shop PG04 24 Month
130R1132
DrivePro ExWarr Work Shop PG04 36 Month
130R1133
DrivePro ExWarr Work Shop PG04 42 Month
130R1034
DrivePro ExWarr Onsite PG04 48 Months
