137H8923

Part Number: 137H8923
137H8923
Manufacturer
Danfoss
Part number
137H8923
Category

Product Information

Extended Description

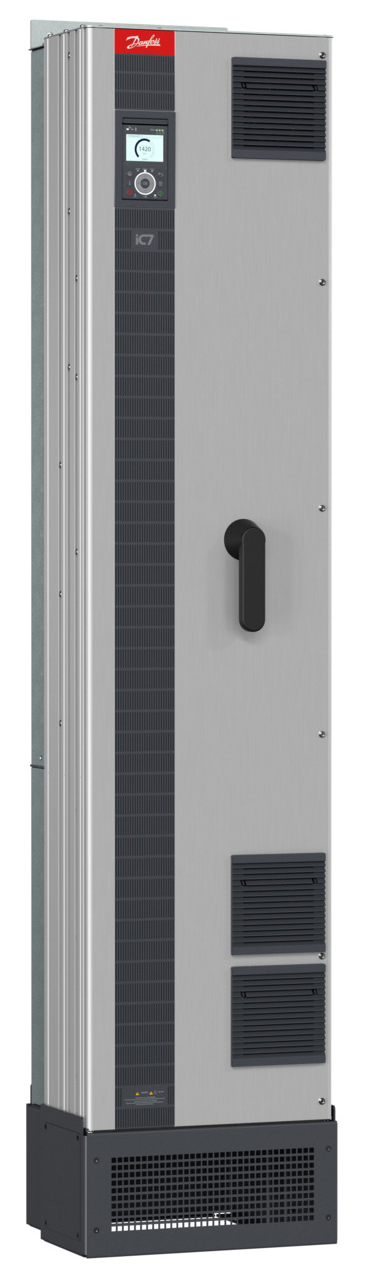

137H8923 Danfoss: iC7-AutomationFrequency converter,air-cooledIC7-60FA3N05-395AE21F2+ACBC+AGCX+AJFD+BAPR+BDBA+BEF1+BF20+DAAUIP21/UL Type 1, Frame: FK10c3~, 380-500 V AC,395 AEMC category: C2 categoryControl Panel 2.8 OPX20Standard I/O: 4xDI, 2xDI/O, 2xAI, 1xAO, 2xROPROFINET RT OS7PRFunctional Safety: STO, not upgradableOther options according to model code
Gross weight
188.074 kg
Net weight
158.004 kg
Volume
0 l
EAN
5715253459011
Help Counter
1
Typecode Part 1
7FC-AUFA3N05-395AE21F2
Typecode Part 2
-000115591
Calculated Gross Weight [kg]
188.11
Calculated Net Weight [kg]
158
Vendor
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
Product series
+DAAU : iC7-Automation
Product group
IC7-60 : iC7-60
Product category
FA : Frequency converter,air-cooled
Product type
3N : 3~
Mains voltage
05 : 380-500 V AC
Current rating
-395A : 395 A
Power rating
200 : 200 kW/300 hp
Protection rating
E21 : IP21/UL Type 1
EMC category
F2 : C2 category
Cable entry and EMC plate
+AAST : Standard plate
Integrated brake chopper
+ACBC : Yes
Extra environmental protection
+AGCX : Coated boards
Humidity protection device
+AHXX : None
Mains input device
+AJFD : AC fuses and mains switch
DC terminals
+ALXX : None
Touch protection
+AMXX : None
Heat sink access panel
+APXX : None
Communication interface, X1/X2
+BAPR : PROFINET RT OS7PR
Standard I/O
+BDBA : 4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO
Functional safety
+BEF1 : STO, not upgradable
Control panel
+BF20 : Control Panel 2.8 OPX20
Interface board
+BISR : MicroSD card reader and RTC
Option slot A
+CAX0 : None
Option slot B
+CBXX : None, not upgradable
Option slot C
+CCX0 : None
Option slot D
+CDX0 : None
Option Slot E
+CEX0 : None
Product software ID
+ECXXX : Latest released version
Technical documentation
+EGIN : Installation guide
Integrated common-mode filter
+AIXX : None
Communication interface, X0
+BBEL : Ethernet port, no protocol
Customer specific application
+DBXX : None
Additional drive features 1
+DD1X : None
Additional drive features 2
+DE2X : None
Additional drive features 3
+DF3X : None
Additional drive features 4
+DG4X : None
Additional drive features 5
+DH5X : None
High speed enabled
+DI6X : No
Customization file package ID
+EAXXXXXX : No customization
Customer-specific label
+EJXX : None
Language package
+EL01 : Global
Product specific marine cert.
+VBXX : None
Frame designation
FK10C : FK10c
Modelcode01
IC7-60FA3N05-395AE21F2
Modelcode02
+ACBC+AGCX+AJFD
Modelcode03
+BAPR+BDBA
Modelcode04
+BEF1+BF20
Modelcode05
+DAAU
Product Catalog
NO_VIEW : NO VIEW
Efficiency class-Relative loss
IE2 - 1.86%
Maximum Power Loss LO [W]
4061
Enclosure rating
IP21 / TYPE 1
Input frequency
50/60Hz
Output frequency
0-590Hz
Input current in Normal Overlo
380/350A
Short circuit current rating
100kA
Ambient temp. high overload
45=C2=B0C/113=C2=B0F
Ambient temp. normal overload
40=C2=B0C/104=C2=B0F
Input Voltage
3x380-500V
Typical motor power PL (110%)
200KW(400V)/300HP(460V)
Typical motor power PH (150%)
160KW(400V)/250HP(460V)
Continous current IL (1/10min)
395/364A
Continous current IH (1/10min)
302/302A
Continous current IH (1/5min)
302/302A
Main unit Width
436
Main unit Height
1975
Main unit Depth
378
Product View (Switch)
GLBL : Global (Standard)
176F3434
Disconnect 600A 690V
176F3353
Door filter,D1h-D8h,E1h-E4h,Fx09-12
176F6647
Rectifier SCR/Diode 700A 1600V
176F8335
Fuse ultra fast 630AMP 700V
176F6447
Current sensor 500A
176F3169
Door fan IP54 DC 120X38 48VDC
176F3165
Mixing Fan DC 40x28
176F3162
IGBT snubber cap 1000V 1.5uF wide mount
176F6692
tool, capacitor removal/installation
176F3972
Wire assy PwrBrd-DC CBL5 Fx10
136B1569
Encoder/Resolver Option OC7M0
136B2055
Blind Panel OPX00
136B2084
Control panel cable 2.5m
136B2085
Control panel cable 5 m
136B2086
Control panel cable 10 m
136B3128
Control Panel 2.8 OPX20
136B1567
Relay option OC7R0
136B1568
General Purpose IO OC7C0
132N6513
OF7P2-S-AF-46-291A-060-05-T1-E20
132N6514
OF7P2-S-AF-46-355A-060-05-T1-E20
130R1167
DrivePro ExWarr Work Shop PG07 66 Month
130R1162
DrivePro ExWarr Work Shop PG07 36 Month
130R1164
DrivePro ExWarr Work Shop PG07 48 Month
130R1163
DrivePro ExWarr Work Shop PG07 42 Month
130R1165
DrivePro ExWarr Work Shop PG07 54 Month
130R1166
DrivePro ExWarr Work Shop PG07 60 Month
130R1168
DrivePro ExWarr Work Shop PG07 72 Month
130R1160
DrivePro ExWarr Work Shop PG07 24 Month
130R1161
DrivePro ExWarr Work Shop PG07 30 Month
130R1068
DrivePro ExWarr Onsite PG07 72 Months
