137L1489
Part Number: 137L1489
Product Information
Extended Description

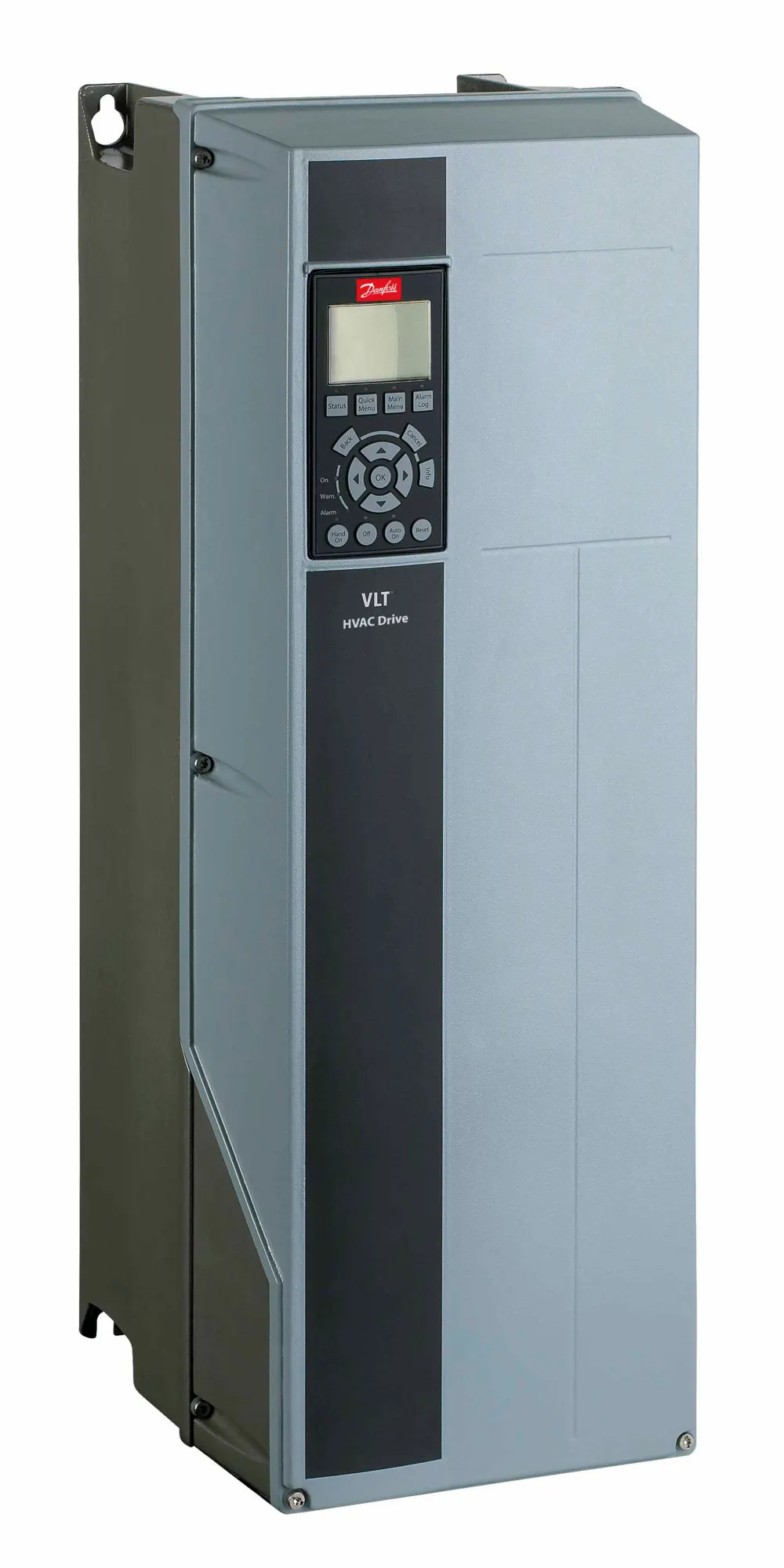

137L1489 Danfoss: Frequency converterFC-202P7K5S2P21H2XGCXXXSXXXXAXBXCXXXXDXVLT=C2=AE AQUA Drive FC-202(P7K5) 7.5 KW / 10 HP, Single phase200 - 240 VAC, IP21 / Type 1 BackplateRFI FilterNo brake chopperGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: B2No C1 option, No D optionNo A Option, No B OptionOther options according to Model code
Gross weight
29.65 kg
Net weight
28.7 kg
Volume
0 l
EAN
5715253485256
Product View (Switch)
NAMC : North America (Regional)
Product Group
FC- : VLT=C2=AE AQUA Drive FC-
Series
202 : 202
Power Rating
P7K5 : (P7K5) 7.5 KW / 10 HP
Phase
S : Single phase
Mains Voltage
2 : 200 - 240 VAC
Enclosure
P21 : IP21 / Type 1 Backplate
RFI Filter
H2 : RFI Filter
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
B2 : B2
Typecode Part 1
FC-202P7K5S2P21H2XGC
Typecode Part 2
XXXSXXXXAXBXCXXXXDX
Product Catalog
NO_VIEW : NO VIEW
Power 110% (NO) [KW]
7.5
Height [mm]
664,0
Width w/ no C options [mm]
243,0
Depth [mm]
261,0
Depth with Option A/B [mm]
261,0
kVA
11.1
Power Loss NO [W]
150
Continuous Current (NO) [A]
30.8
Intermittent Current (NO) [A]
33.9
Calculated Gross Weight [kg]
29.65
Calculated Net Weight [kg]
28.7
ECCN EU
Y901
ECCN US
3A999.a
Plant from Orderline
F605
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-202P7K5S2P21H2XGC
Modelcode02
XXXSXXXXAXBXCXXXXDX
130B7530
Mounting Kit f. C Option, 40mm, A2/A3
130B9001
multiple 2 pole power combicon, 24V plug
130B0264
Cradle for A5,B1,B2,C1,C2,D2h enclosure
130B0295
sparepart/terminals accessory bag
130B0294
sparepart/multi accessory bag - clips
130B1073
10 pole connector
130B1072
8 pole connector
130B1069
Multiple relay 1 plug
130B1068
Multiple relay 2 plug
130B1063
DC coil 30kW T4/6 and 15kW T2
130B3397
Back plate IP21/Type 1, IP55/Type 12, B2
130B4598
Weather shield f. outdoor instl A4 to B2
130B7533
Mounting Kit C Option, B/C/D/E/F(not B3)
130B5436
Side Fixture Mounting Kit
130B5435
DIN Rail Mounting Kit
130B1235
VLT=C2=AE PROFINET MCA 120, coated
130B1243
VLT=C2=AE Analog I/O Option MCB 109, coated
130B1219
VLT=C2=AE EtherNet IP MCA 121, coated
130B1218
VLT=C2=AE Ext. Cascade Contr. MCO 101, ctd
130B1254
VLT=C2=AE Adv. Cascade Contr. MCO 102, ctd
130R1131
DrivePro ExWarr Work Shop PG04 30 Month
130R1134
DrivePro ExWarr Work Shop PG04 48 Month
130R1135
DrivePro ExWarr Work Shop PG04 54 Month
130R1137
DrivePro ExWarr Work Shop PG04 66 Month
130R1138
DrivePro ExWarr Work Shop PG04 72 Month
130R1136
DrivePro ExWarr Work Shop PG04 60 Month
130R1130
DrivePro ExWarr Work Shop PG04 24 Month
130R1132
DrivePro ExWarr Work Shop PG04 36 Month
130R1133
DrivePro ExWarr Work Shop PG04 42 Month
130R1034
DrivePro ExWarr Onsite PG04 48 Months
Encoder-less Safety using DOLD Module
Marselisborg WWTP - English
MultiMaster Cascade Control AG
Submersible Pump Appl. for VLT=C2=AE FC 200
VLT drives with integrated CBM
VLT=C2=AE AQUA Drive Closed Loop - Sleep Mode
VLT=C2=AE AQUA Drive Master-Follower Operat.
VLT=C2=AE Drives Motor overload protection
VLT=C2=AE FC 200 Motor cont. run at low speed
VLT AQUA Drive FC 202 Selection Guide
Danfoss MD 00779152 B2
SASO KSA R-205899
UL E236048
UL E70524
PSL File Danfoss-24899b
PSL-File Danfoss-24800
Danfoss EU-UK 00730215 A10
Danfoss EU-UK 00730297 A6
PTB 14 ATEX 3009-A1
ODVA 10929.04
VLT_B2_IP21-55-66
Wiring Schematic FC 102-202 1.1-90 kW
130B1107_E-plan
MCAD B2 IP55 wo-switch
MCAD FC A4 to B2 Bracket
Remote_LCP_holder
MCAD FC B2 IP21-55-66
176U8474 - Mechanical Submittal Drawing
130B1117_Eplan
MCAD-FC-B2-IP21-PTM
VLT=C2=AE AQUA Drive Support File
VLT=C2=AE Drives EtherNet/IP EDS
VLT=C2=AE AQUA Drive Simulator
VLT=C2=AE Motion Control Tool MCT31
VLT=C2=AE EtherNet/IP Add-on Instructions
VLT=C2=AE Drives DeviceNet EDS
VLT=C2=AE MCA101 PROFIBUS GSD
VLT=C2=AE MCA120 PROFINET GSDML
VLT=C2=AE Drives PROFIBUS PCA Block
VLT=C2=AE Motion Control Tool MCT10
