137L1556

Part Number: 137L1556
137L1556
Manufacturer
Danfoss
Part number
137L1556
Category

Product Information

Extended Description

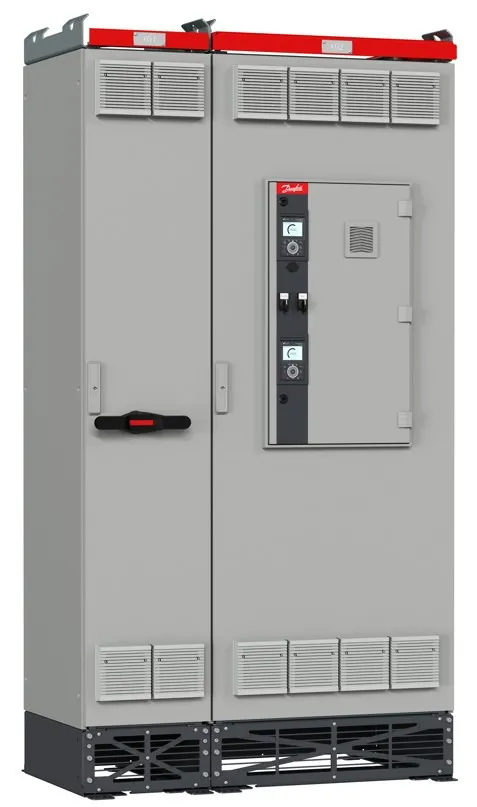

137L1556 Danfoss: iC7-AutomationEnclosed drive, air-cooledIC7-60EA3H05-880AE54F3+BAMT+CAR0+CBR0+CCT0+DAAU+EGXX+GACO+IBCH+IFCS+IHAS+IICD+KCIT+KDOT+MAC2IP54/UL Type 12,Frame: AE11+IE113~, low-harmonic drive, 380-500 V AC,880 AEMC Category: C3 categoryControl Panel 2.8 OPX20Standard I/O: I/O and Relay Option OC7C1Modbus TCP OS7MTFunctional Safety: None, not upgradableOther options according to model code
Gross weight
1437.9 kg
Net weight
1147.9 kg
Volume
0 l
EAN
5715253485973
Help Counter
1
Typecode Part 1
7ED-AUEA3H05-880AE54F3
Typecode Part 2
-000119268
Calculated Gross Weight [kg]
1437.9
Calculated Net Weight [kg]
1147.9
Vendor
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
Product group
IC7-60 : iC7-60
Product category
EA : Enclosed drive, air-cooled
Product type
3H : 3~, low-harmonic drive
Mains voltage
05 : 380-500 V AC
Current rating
-880A : 880 A
Power rating
500 : 500 kW/650 HP
Protection rating
E54 : IP54/UL Type 12
EMC category
F3 : C3 category
Integrated brake chopper
+ACXX : None
Marine construction
+AFXX : None
Extra environmental protection
+AGCX : Coated boards
Communication interface, X1/X2
+BAMT : Modbus TCP OS7MT
Communication interface, X0
+BBEL : Ethernet port, no protocol
Standard I/O
+BDC1 : I/O and Relay Option OC7C1
Functional safety
+BEXX : None, not upgradable
Control panel
+BF20 : Control Panel 2.8 OPX20
Option slot A
+CAR0 : Relay Option OC7R0
Option slot B
+CBR0 : Relay Option OC7R0
Option slot C
+CCT0 : Temperature Measurement OC7T0
Option slot D
+CDX0 : None
Option slot E
+CEX0 : None
Option slot F
+CFX0 : None
Product series
+DAAU : iC7-Automation
Customer specific application
+DBXX : None
Additional drive features 1
+DD1X : None
Additional drive features 2
+DE2X : None
Additional drive features 3
+DF3X : None
Additional drive features 4
+DG4X : None
Additional drive features 5
+DH5X : None
High speed enabled
+DI6X : No
Customization file package ID
+EAXXXXXX : No customization
Product software ID
+ECXXX : Latest released version
Technical documentation
+EGXX : None
Documentation language
+EHXX : Multi-language
Customer-specific label
+EJXX : None
Language package
+EL01 : Global
Mains input device
+GACO : Mains contactor and switch
Grounding Device Provision
+GCXX : None
Motor heater control
+IAXX : None
Cabinet heater
+IBCH : Yes
Motor fan control
+ICXX : None
Motor brake control
+IDXX : None
Control Power Supply
+IFCS : 24 VDC
Service socket
+IGXX : None
Auxillary voltage supply
+IHAS : AC supply terminals
Door Signal lights
+IICD : Run, ready, fault
Customer control terminals
+IKXX : Spring-type, standard
Emergency stop push button
+ILXX : None
Insulation monitoring
+IMXX : None
Arc detection device
+INXX : None
Busbar input
+KAXX : None
DC terminals
+KBXX : None
Mains cabling direction
+KCIT : Top-entry
Motor cabling direction
+KDOT : Top-entry
Common motor output terminals
+KEXX : None
Cable entry plate
+KFXX : With standard glands
Cabinet sequencing
+KGXX : Left to right
Door mounting
+KHXX : Hinges on the right side
Output filter
+MAC2 : Common-mode Filter OFXC1
Additional cabinets
+NAXX : None
Air-cooling options
+OAXX : Standard
Power unit service beam
+QAXX : None
Shipping package
+TAWP : Wooden package
UL compliance
+VAXX : No additional approvals
Product specific marine cert.
+VBXX : None
Customer specific option
+VNXX : None
Frame designation
A11C11 : AE11+IE11
check if complete
OK
Product Catalog
NO_VIEW : NO VIEW
Modelcode01
IC7-60EA3H05-880AE54F3
Modelcode02
+BAMT
Modelcode03
+CAR0+CBR0+CCT0
Modelcode04
+DAAU
Modelcode06
+EGXX
Modelcode07
+GACO+IBCH
Modelcode08
+IFCS+IHAS+IICD
Modelcode09
+KCIT
Modelcode10
+KDOT+MAC2
Cooling type
Air cooled
Enclosure rating
IP54
Input frequency
50/60Hz
Output frequency
0-599Hz
Continous current IH (1/5min)
731A (400VAC) / 681A (460VAC)
Typical motor power PH (150%)
400KW(400V)/550HP(460V)
Typical motor power PL (110%)
500KW(400V)/700HP(460V)
Short circuit current rating
65kA
Storage temperature
-40...+70C
Input Voltage
3~380-500VAC
Continous current IL (1/5min)
880A (400VAC) / 820A (460VAC)
Product View (Switch)
GLBL : Global (Standard)
181B2469
Load Switch OT630E03P
181B2350
Thermal magnetic circuit breaker 1-1.6A
181B4185
Door air filter for IP54 cabinet
181B2684
Diode bridge SKD 82/16
181B2675
Fuse 690VAC 32A, OFAA000GG32
181B2826
LIGHT red 24Vdc 22 mm
181B2886
Handle OHB 150J12P
181B3281
YO 220-240V AC/DC E1.2, 1SDA073674R1
181B3282
YU 220-240V AC/DC E1.2, 1SDA073700R1
181B3280
YC 220-240V AC/DC E1.2, 1SDA073687R1
Connecting to iC7 Series Remotely via Mobile Network iC7-Automation Air-cooled Enclosed Drives (206/385=E2=80=931710 A) iC7 Automation Air cooled Enclosed Drives Installation Guide iC7 Series System Modules SGS Fimko FI-58747 SGS Fimko FI-58753 Danfoss EU-UK 00773634.B1 T=C3=9CV Z10 099224 0002 Rev. 00 IC7ED_AE11+IE11 iC7-Automation Drive Software
