137L2362

Part Number: 137L2362
137L2362
Manufacturer
Danfoss
Part number
137L2362
Category

Product Information

Extended Description

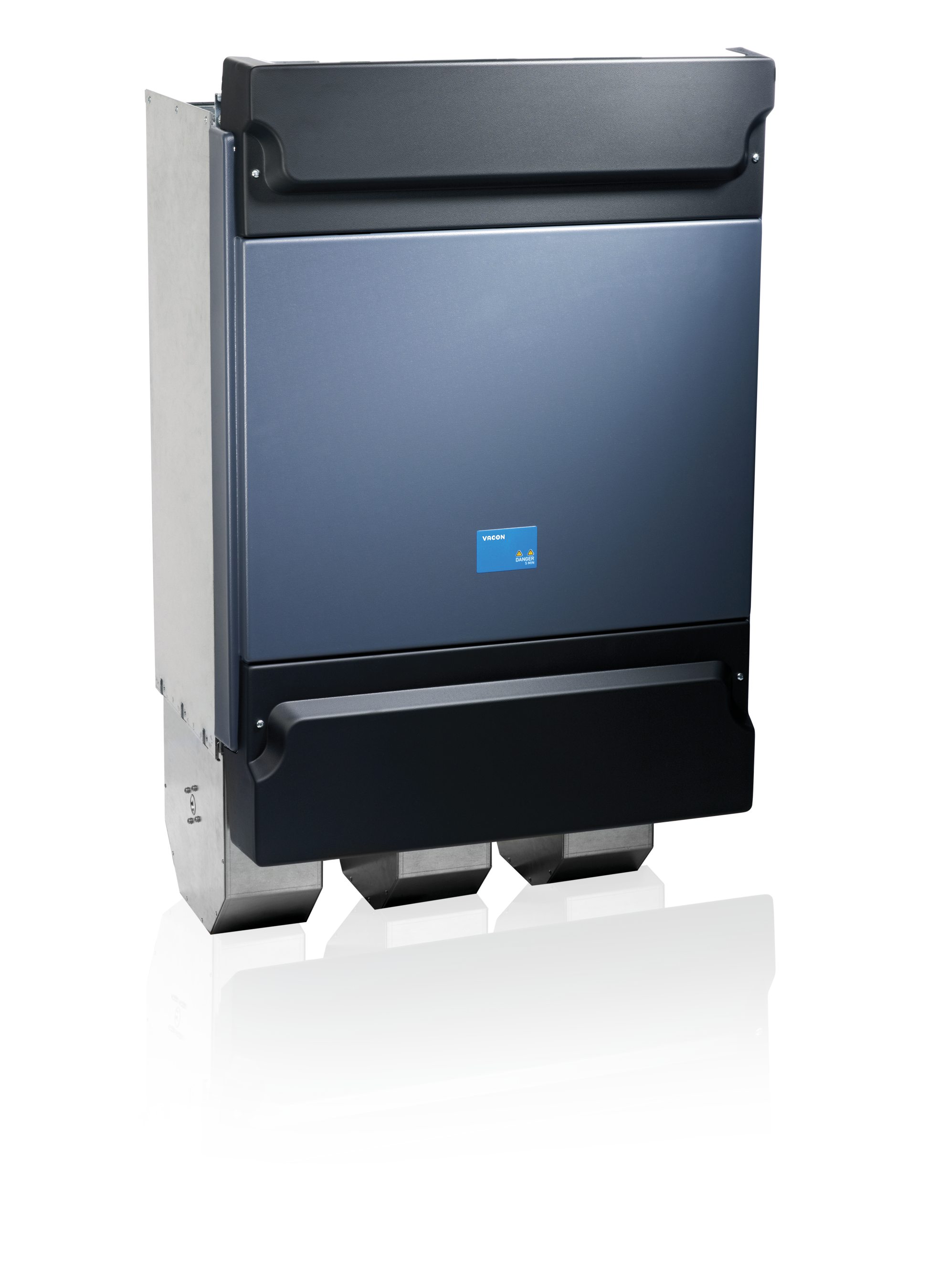

137L2362 Danfoss: NXP07305-A0N0BSB-A9A20000E9+APUSC721+DNOTVacon NXP Frequency Converter380 =E2=80=93 500 Vac (465-800 Vdc), 730 Amp,IP00Alpha-numeric displayno EMC protectionNo BrakeA Slot: OPTA1 with 2,5mm2 conn.B Slot: 2RO(NO/NC)C Slot: No boardD Slot: No boardE Slot: 2-port ethernetManual: EnglishFrame 11Other options according to Model code
Gross weight
379 kg
Net weight
378 kg
Volume
0 l
EAN
5715253494289
Product View (Switch)
CSAPP : Customer Specific Applications
Product Group
NXP : NXP Frequency Converter
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
5- : 380 =E2=80=93 500 Vac (465-800 Vdc)
Current
0730 : 730 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
0 : IP00
EMC emission levels
N : no EMC protection
Brake Chopper
0 : No Brake
Electrical Modification
B : DC Connection with choke
Card Modifications
B- : Fiber+IntegrControl+varn.PCB
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A9 : OPTA1 with 2,5mm2 conn.
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
00 : No board
Option Slot D
00 : No board
Option Slot E
E9 : 2-port ethernet
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DNOT : No manuals
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+APUSC721 : Appl sw APUSC721 SPOC NXP
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FR11 : Frame 11
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DP-073050
Typecode Part 2
-000120150
Salestext
FR1107305-0N
Modelcode01
NXP07305-A0N0BSB-
Modelcode02
A9A20000E9
Modelcode04
+APUSC721
Modelcode05
+DNOT
Calculated Net Weight [kg]
378
Calculated Gross Weight [kg]
379
Motor Power Low Overload [kW]
400
Motor Power High Overload [kW]
355
Dimensions WxHxD [mm]
SEE DRAWING
Continuous Current (NO) [A]
730
Continuous Current (HO) [A]
650
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DP-073050
check if complete
OK
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
Recommended Plant
ERR01
181B1560
DC link busbar kit 500V right
181B1562
Control box assembly NX light blue
181B1457
Wire 1 bridge
181B1456
Driver supply wire
181B1453
Measurement board right
181B1751
Handle OHB 175J12 ABB
181B1639
"Terminal connector R-, R+"
181B1638
Terminal connector 23-21
181B1637
DC busbar collector kit for FR11
181B1636
M6x12 ISO7380 Z4-1 TX ZN
181B0325
OPT-E3-V:PROFIBUS DP
181B1930
OPT-A1-V+DNOT:6DI,DO,2AI,1AO,+10Vr,+24V
181B0586
OPT-E7-V:DeviceNet
181B0287
OPT-A1-V:6DI,DO,2AI,1AO,+10Vr,+24V
181B0761
OPT-EC-V:EtherCAT
181B3287
OPT-EA-V:Advanced 2-port ethernet
181B1468
OPT-A2-V+DNOT:2RO(NO/NC)
181B1469
OPT-A4-V+DLES:3DI (Enc.RS422), +5V/+15V
181B1470
OPT-A5-V+DLES:3DI(Enc.10-24V),15/24Vout
181B1471
OPT-AN-V+DNOT:6DI,2AI,2AO,10/-10Vref,24V
130R1074
DrivePro ExWarr Onsite PG08 48 Months
130R1073
DrivePro ExWarr Onsite PG08 42 Months
130R1075
DrivePro ExWarr Onsite PG08 54 Months
130R1076
DrivePro ExWarr Onsite PG08 60 Months
130R1175
DrivePro ExWarr Work Shop PG08 54 Month
130R1177
DrivePro ExWarr Work Shop PG08 66 Month
130R1178
DrivePro ExWarr Work Shop PG08 72 Month
130R1176
DrivePro ExWarr Work Shop PG08 60 Month
130R1170
DrivePro ExWarr Work Shop PG08 24 Month
130R1172
DrivePro ExWarr Work Shop PG08 36 Month
