137L7648

Part Number: 137L7648
137L7648
Manufacturer
Danfoss
Part number
137L7648
Category

Product Information

Extended Description

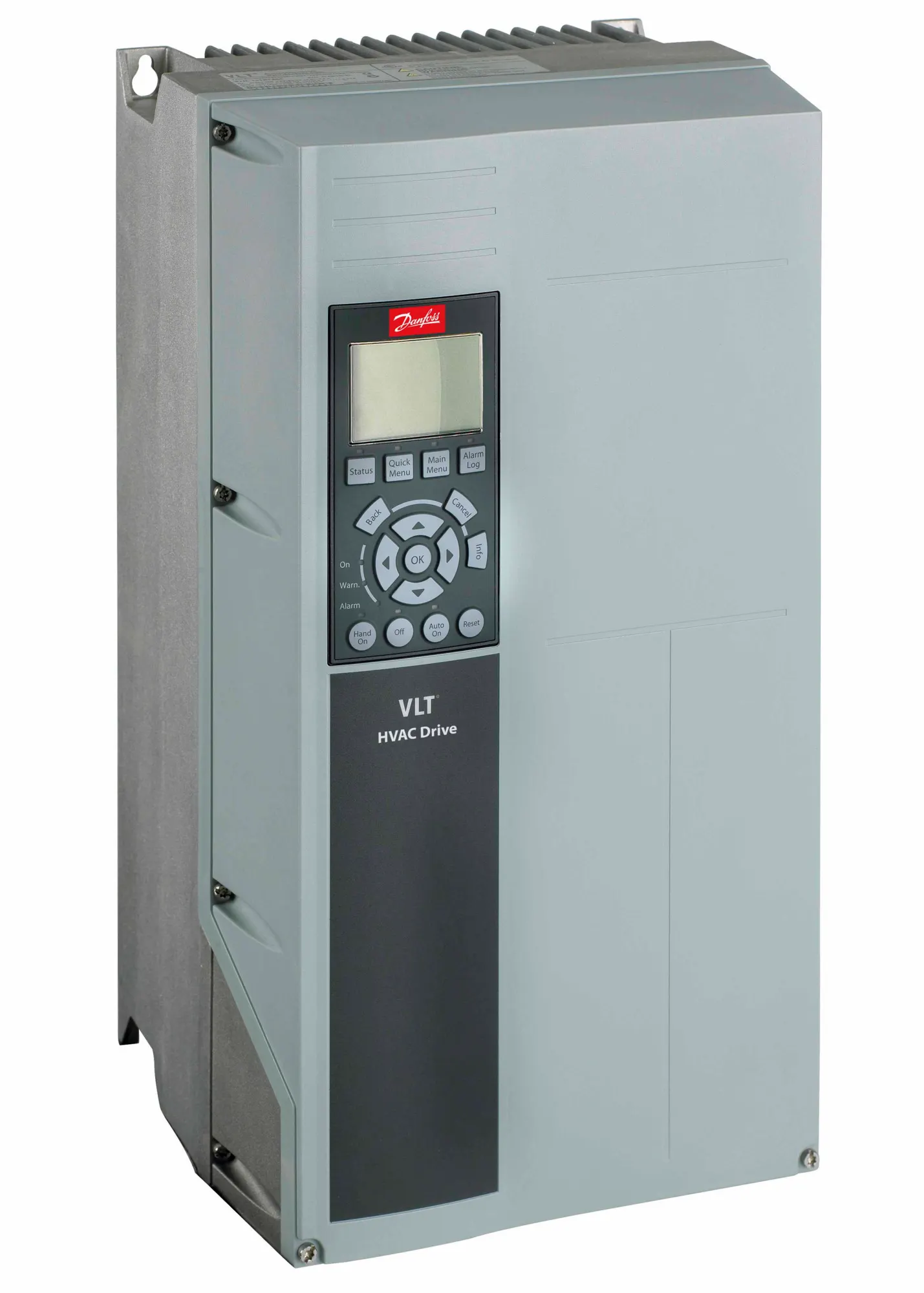

137L7648 Danfoss: Frequency converterFC-202P7K5T6E66HXTXXXXXSXXXXAXBXCXXXXDXVLT=C2=AE AQUA Drive FC-202(P7K5) 7.5 KW / 10 HP, Three phase525 - 600 VAC, (E66) IP66 / NEMA 4XNo RFI FilterSafe StopNo Loc. Cont. PanelNot coated PCB, No Mains OptionLatest release std. SW.Frame: A5No C1 option, No D optionNo A Option, No B OptionOther options according to Model code
Gross weight
12.82 kg
Net weight
12.2 kg
Volume
0 l
EAN
5715253552651
Product View (Switch)
NAMC : North America (Regional)
Product Group
FC- : VLT=C2=AE AQUA Drive FC-
Series
202 : 202
Power Rating
P7K5 : (P7K5) 7.5 KW / 10 HP
Phase
T : Three phase
Mains Voltage
6 : 525 - 600 VAC
Enclosure
E66 : (E66) IP66 / NEMA 4X
RFI Filter
HX : No RFI Filter
Brake - Safe Stop
T : Safe Stop
LCP
X : No Loc. Cont. Panel
Coating PCB
X : Not coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
A5 : A5
Typecode Part 1
FC-202P7K5T6E66HXTXX
Typecode Part 2
XXXSXXXXAXBXCXXXXDX
Product Catalog
NO_VIEW : NO VIEW
Power 150% (HO) [KW]
7.5
Power 110% (NO) [KW]
7.5
Height [mm]
420,0
Width w/ no C options [mm]
242,0
Depth [mm]
200,0
Depth with Option A/B [mm]
200,0
kVA
11
Power Loss NO [W]
261
Power Loss HO [W]
261
Continuous Current (NO) [A]
11.5
Intermittent Current (NO) [A]
12.6
Continuous Current (HO) [A]
11.5
Intermittent Current (HO) [A]
17.2
Calculated Gross Weight [kg]
12.82
Calculated Net Weight [kg]
12.2
ECCN EU
Y901
ECCN US
3A999.a
Plant from Orderline
F605
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-202P7K5T6E66HXTXX
Modelcode02
XXXSXXXXAXBXCXXXXDX
176F8951
Fuse, Input, LP-CC 30A, 3/Pk
130B3242
Back plate IP66/Type 4X, A5
130B4186
Plastic cover for IP66 frame size A5
130B7530
Mounting Kit f. C Option, 40mm, A2/A3
130B9001
multiple 2 pole power combicon, 24V plug
130B1017
Fan assembly 92x92x38mm
130B1023
Accessory bag for smooth cable entry A5
130B0264
Cradle for A5,B1,B2,C1,C2,D2h enclosure
130B0295
sparepart/terminals accessory bag
130B1077
Blindcover, w/ Danfoss logo, IP55/66
130B3242
Back plate IP66/Type 4X, A5
130B4598
Weather shield f. outdoor instl A4 to B2
130B7532
Mounting Kit f. C Option, A5
130B5436
Side Fixture Mounting Kit
130B5435
DIN Rail Mounting Kit
130B1235
VLT=C2=AE PROFINET MCA 120, coated
130B1243
VLT=C2=AE Analog I/O Option MCB 109, coated
130B1219
VLT=C2=AE EtherNet IP MCA 121, coated
130B1218
VLT=C2=AE Ext. Cascade Contr. MCO 101, ctd
130B1254
VLT=C2=AE Adv. Cascade Contr. MCO 102, ctd
130R1121
DrivePro ExWarr Work Shop PG03 30 Month
130R1120
DrivePro ExWarr Work Shop PG03 24 Month
130R1122
DrivePro ExWarr Work Shop PG03 36 Month
130R1123
DrivePro ExWarr Work Shop PG03 42 Month
130R1126
DrivePro ExWarr Work Shop PG03 60 Month
130R1125
DrivePro ExWarr Work Shop PG03 54 Month
130R1124
DrivePro ExWarr Work Shop PG03 48 Month
130R1127
DrivePro ExWarr Work Shop PG03 66 Month
130R1128
DrivePro ExWarr Work Shop PG03 72 Month
130R1024
DrivePro ExWarr Onsite PG03 48 Months
