137L9996

Part Number: 137L9996
137L9996
Manufacturer
Danfoss
Part number
137L9996
Category

Product Information

Extended Description

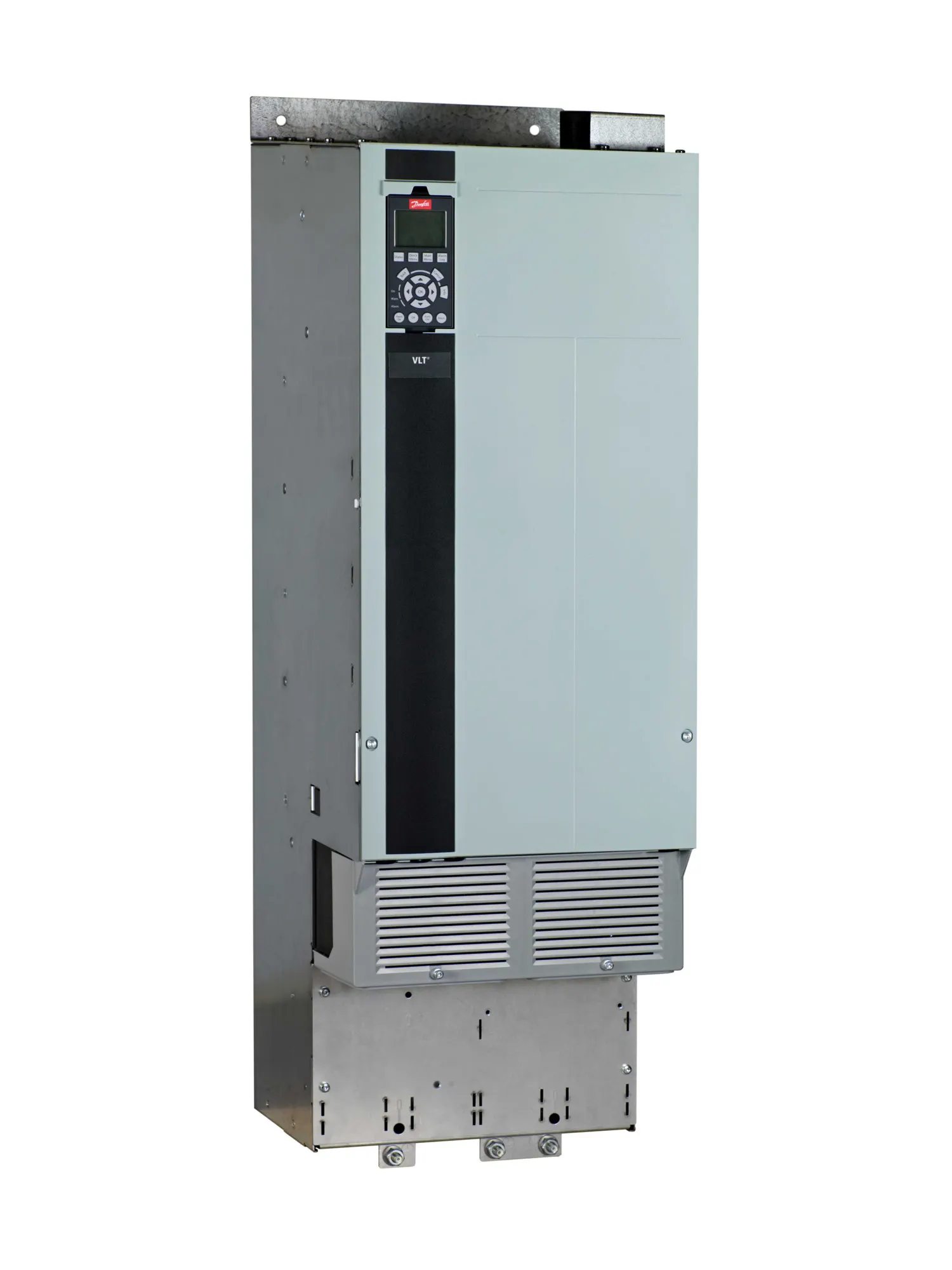

137L9996 Danfoss: Frequency ConverterFC-102N110T4E20H2BGCXXXSXXXXAXB0CXXXXDXVLT=C2=AE HVAC Drive FC-102(N110) 110 KW / 150 HP, Three phase380 - 480 VAC, (E20) IP20 / ChassisRFI FilterBrake chopperGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: D3HNo C1 option, No D optionNo A Option, MCB-109 I/O, RTC Back-upOther options according to Model Code
Gross weight
62.3 kg
Net weight
62 kg
Volume
0 l
EAN
5715253577029
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
N110 : (N110) 110 KW / 150 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H2 : RFI Filter
Brake - Safe Stop
B : Brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
B0 : MCB-109 I/O, RTC Back-up
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
D3H : D3H
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102N110T4E20H2BGC
Typecode Part 2
XXXSXXXXAXB0CXXXXDX
Power 110% (NO) [KW]
110
Height [mm]
909,0
Height w/ Regen/Loadshare [mm]
1004,0
Width w/ no C options [mm]
250,0
Depth [mm]
375,0
Depth with Option A/B [mm]
375,0
kVA
147
Power Loss NO [W]
2555
Continuous Current (NO) [A]
212
Intermittent Current (NO) [A]
233
Calculated Gross Weight [kg]
62.3
Calculated Net Weight [kg]
62
ECCN EU
X.A.I.003
ECCN US
3A999
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102N110T4E20H2BGC
Modelcode02
XXXSXXXXAXB0CXXXXDX
Recommended Plant
ERR01
176F3627
Cooling Kit, in btm/ out top, 1800, D3h
176F3625
Cooling Kit, in back/ out back, D3h
176F3633
Cooling Kit, in back/out back, D3h
176F3629
Cooling Kit, in btm/out top, 2000mm, D3h
176F3409
Adapter Plate, D1h/D3h
130B1235
VLT=C2=AE PROFINET MCA 120, coated
130B1219
VLT=C2=AE EtherNet IP MCA 121, coated
130B1170
LCP Panel Mounting Kit
130B1208
1xMCB 107 24V DC coat w. mount. brackets
130B1202
VLT=C2=AE DeviceNet MCA 104, coated
130R1153
DrivePro ExWarr Work Shop PG06 42 Month
130R1156
DrivePro ExWarr Work Shop PG06 60 Month
130R1152
DrivePro ExWarr Work Shop PG06 36 Month
130R1154
DrivePro ExWarr Work Shop PG06 48 Month
130R1155
DrivePro ExWarr Work Shop PG06 54 Month
130R1151
DrivePro ExWarr Work Shop PG06 30 Month
130R1150
DrivePro ExWarr Work Shop PG06 24 Month
130R1157
DrivePro ExWarr Work Shop PG06 66 Month
130R1158
DrivePro ExWarr Work Shop PG06 72 Month
130R1057
DrivePro ExWarr Onsite PG06 66 Months
