137N0915
Part Number: 137N0915
Product Information
Extended Description

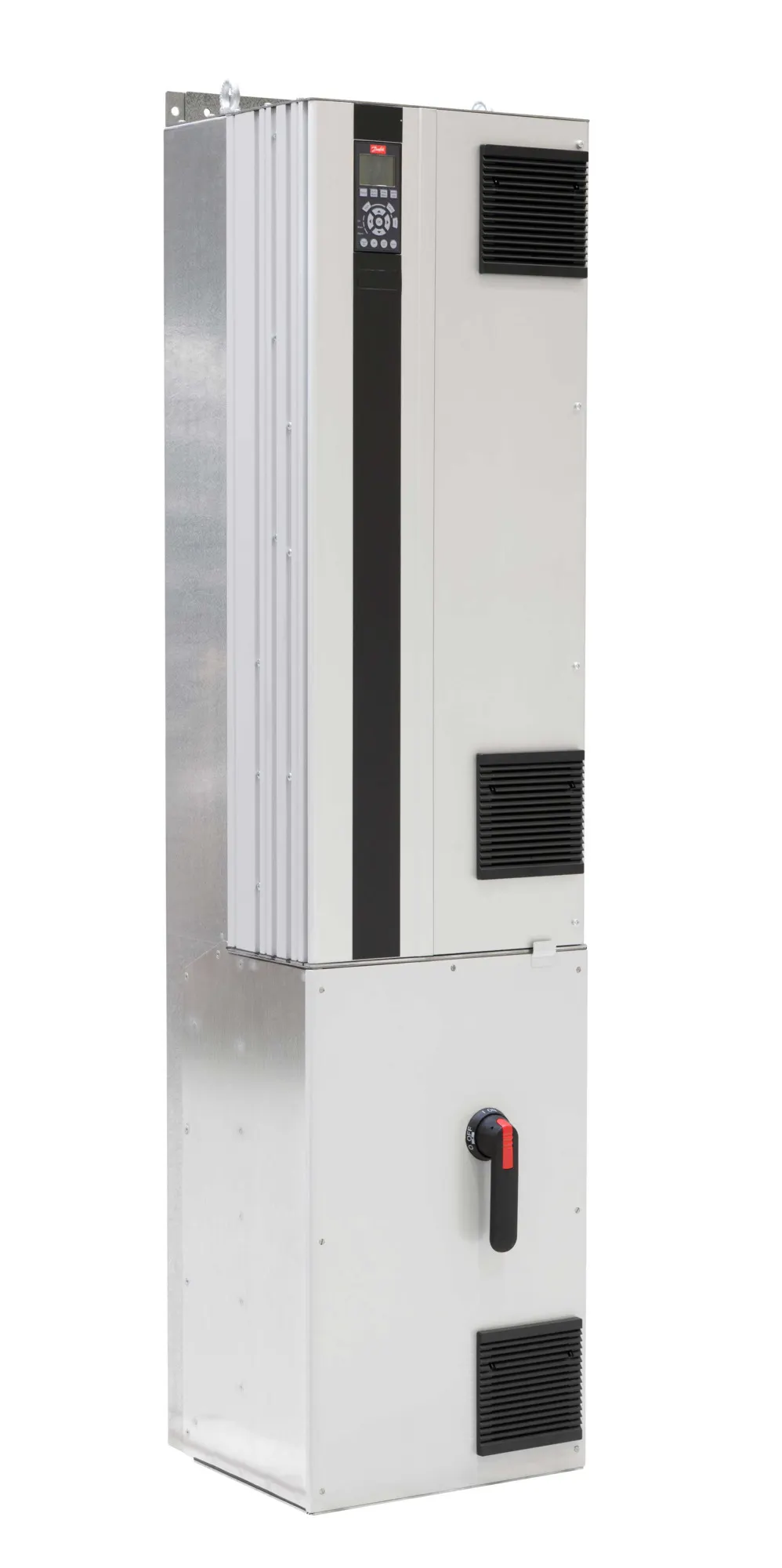

137N0915 Danfoss: Frequency ConverterFC-102N110T4E5MH2TGC3XXSXXXXALB2CXXXXDXVLT=C2=AE HVAC Drive FC-102(N110) 110 KW / 150 HP, Three phase380 - 480 VAC, IP54/Type 12+main shieldRFI FilterSafe StopGraphical Loc. Cont. PanelCoated PCB, Mains Disconnect + FuseLatest release std. SW.Frame: D5HNo C1 option, No D optionPROFINET MCA 120, MCB-112 PTC Therm. CardATEX: II (2) G [Ex eb Gb] [Exdb Gb] / II (2) D [Ex tb Db]Other options according to Model Code
Gross weight
166.3 kg
Net weight
166 kg
Volume
0 l
EAN
5715253586595
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
N110 : (N110) 110 KW / 150 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E5M : IP54/Type 12+main shield
RFI Filter
H2 : RFI Filter
Brake - Safe Stop
T : Safe Stop
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
3 : Mains Disconnect + Fuse
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AL : PROFINET MCA 120
B Option
B2 : MCB-112 PTC Therm. Card
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
D5H : D5H
Product Catalog
GLBL : Global (Standard)
Typecode Part 1
FC-102N110T4E5MH2TGC
Typecode Part 2
3XXSXXXXALB2CXXXXDX
Power 110% (NO) [KW]
110
Height [mm]
1324,0
Width w/ no C options [mm]
325,0
Depth [mm]
381,0
Depth with Option A/B [mm]
381,0
kVA
147
Power Loss NO [W]
2555
Continuous Current (NO) [A]
212
Intermittent Current (NO) [A]
233
ATEX Marking 1
ATEX: II (2) G [Ex eb Gb] [Ex
ATEX Marking 2
db Gb] / II (2) D [Ex tb Db]
Calculated Gross Weight [kg]
166.3
Calculated Net Weight [kg]
166
ECCN EU
X.A.I.003
ECCN US
3A999
Plant from Orderline
D801
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102N110T4E5MH2TGC
Modelcode02
3XXSXXXXALB2CXXXXDX
