137N2178
Part Number: 137N2178
Product Information
Extended Description

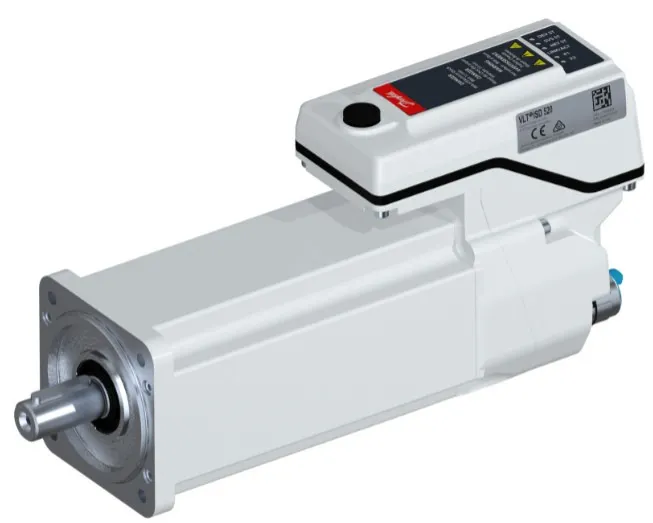

137N2178 Danfoss: Integrated Servo Drive 520ISD-520D6-03T5EC+FAHB+FCKS+FD14+FFS1+FG091+FN30+FSSS600 V DC, 3,5 Nm rated torque category,Rated speed 3000 rpmFlange size 91,3mm, Shaft size 14mm,Standard fitted key, with holding brakeEtherCATST 17 Bit Hiperface DSLSTO, not upgradableNone, without option boardFrame size: E1Other options according to model code
Gross weight
6.058 kg
Net weight
5.058 kg
Volume
0 l
EAN
5715253599403
Help Counter
1
Typecode Part 1
ISD520D6-03T5EC+BEF1+CTXX+FN30
Typecode Part 2
-000131563
Calculated Gross Weight [kg]
6.058
Calculated Net Weight [kg]
5.058
Recommended Factory
ERR01 : Cannot Determine Vendor
Vendor
ERR01 : Cannot Determine Vendor
Recommended Plant
ERR01
ECCN EU
Y901
ECCN US
3A999.a
Product View (Switch)
GLBL : Global (Standard)
Product group
ISD-520 : Integrated Servo Drive 520
Mains voltage
D6 : 600 V DC
Torque level
-03T5 : 3,5 Nm rated torque category
Communication interface
EC : EtherCAT
Extra environmental protection
+AGXX : None
Functional safety
+BEF1 : STO, not upgradable
Option board
+CTXX : None, without option board
Condition based monitoring
+CVXX : No condition based monitoring
Product software ID
+ECXXX : Latest released version
Customized HW configuration
+EEXX : None
Technical documentation
+EGXX : None
Documentation language
+EHXX : Multi-language
Customer-specific label
+EJXX : None
Mechanical brake
+FAHB : with holding brake
Motor shaft
+FCKS : Standard fitted key
Motor shaft size
+FD14 : Shaft size 14mm
Feedback type
+FFS1 : ST 17 Bit Hiperface DSL
Flange
+FG091 : Flange size 91,3mm
Gear
+FHXX : Without gear
Rated speed
+FN30 : Rated speed 3000 rpm
Shaft seal
+FSSS : With standard shaft seal
Insulation monitoring
+IMXX : None
Shipping package
+TACB : Cardboard box package
Surface characteristic
+VFXX : No special surface
Customer specific option
+VNXX : None
Frame designation
E1 : E1
Product Catalog
NO_VIEW : NO VIEW
Modelcode01
ISD-520D6-03T5EC
Modelcode03
+FAHB+FCKS
Modelcode04
+FD14+FFS1+FG091+FN30
Modelcode05
+FSSS
Salescode part 1
ISD-520D6-03T5EC
Salescode part 2
+FAHB+FCKS
Salescode part 3
+FD14+FFS1+FG091+FN30
Salescode part 4
+FSSS
175G0553
Hybrid_Loop_CS2.5_STA_90DF_90DM_0.3m
175G0555
Hybrid_Loop_CS2.5_STA_90DF_90DM_1m
175G0560
Hybrid_Loop_CS2.5_STA_90DF_90DM_4m
175G0565
Hybrid_Loop_CS2.5_DYNA_90DF_90DM_2m
175G0570
Hybrid_Loop_CS2.5_DYNA_90DF_90DM_6m
175G0572
Hybrid_Loop_CS2.5_STA_180DF_180DM_0.5m
175G0585
Hybrid_FeedIn_CS2.5_STA_DAM_90DF_10m
175G0589
Hybrid_FeedIn_CS2.5_DYNA_DAM_90DF_25m
175G0590
Hybrid_FeedIn_CS2.5_DYNA_DAM_90DF_40m
175G0591
Hybrid_FeedIn_CS2.5_STA_DAM_180DF_10m
