137N2934

Part Number: 137N2934
137N2934
Manufacturer
Danfoss
Part number
137N2934
Category

Product Information

Extended Description

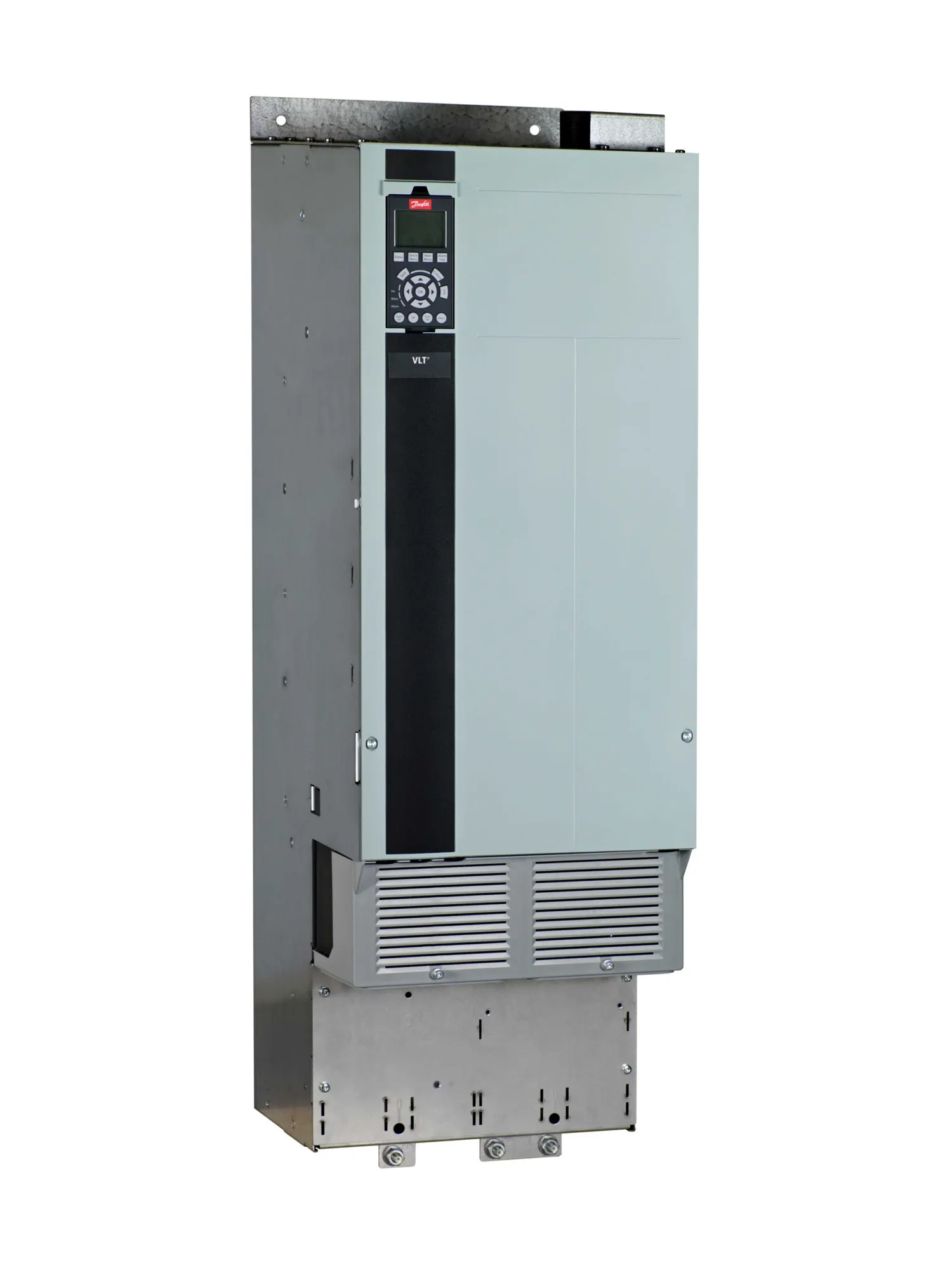

137N2934 Danfoss: Frequency converterFC-302N45KT2E20H4XGC7XXSXXXXANBXCXXXXDXVLT=C2=AE AutomationDrive FC-302(N45K) 45 KW / 60 HP, Three phase200 - 240 VAC, (E20) IP20 / ChassisRFI class A1 (C2)No brake chopperGraphical Loc. Cont. PanelCoated PCB, FuseLatest release std. SW.Frame: D3HNo C1 option, No D optionEtherNet/IP MCA 121, No B OptionOther options according to Model code
Gross weight
62.3 kg
Net weight
62 kg
Volume
0 l
EAN
5715253607313
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE AutomationDrive FC-
Series
302 : 302
Power Rating
N45K : (N45K) 45 KW / 60 HP
Phase
T : Three phase
Mains Voltage
2 : 200 - 240 VAC
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H4 : RFI class A1 (C2)
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
7 : Fuse
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AN : EtherNet/IP MCA 121
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
D3H : D3H
Typecode Part 1
FC-302N45KT2E20H4XGC
Typecode Part 2
7XXSXXXXANBXCXXXXDX
Product Catalog
NO_VIEW : NO VIEW
Power 150% (HO) [KW]
45
Power 110% (NO) [KW]
55
Height [mm]
909,0
Height w/ Regen/Loadshare [mm]
1004,0
Width w/ no C options [mm]
250,0
Depth [mm]
375,0
Depth with Option A/B [mm]
375,0
kVA
57.6
Continuous Current (NO) [A]
190
Intermittent Current (NO) [A]
209
Calculated Gross Weight [kg]
62.3
Calculated Net Weight [kg]
62
ECCN EU
Y901
ECCN US
3A999.a
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-302N45KT2E20H4XGC
Modelcode02
7XXSXXXXANBXCXXXXDX
Recommended Plant
ERR01
176F3627
Cooling Kit, in btm/ out top, 1800, D3h
176F3625
Cooling Kit, in back/ out back, D3h
176F3654
Cooling Kit, in back/out back, SS, D3h
176F3648
Cooling Kit, in back/out back, D1h
176F3633
Cooling Kit, in back/out back, D3h
176F3629
Cooling Kit, in btm/out top, 2000mm, D3h
176F3409
Adapter Plate, D1h/D3h
130B7635
VLT=C2=AE Lift Controller MCO 361
130B7145
VLT=C2=AE SALT Controller MCO 360
130B1234
VLT=C2=AE Motion Control MCO 305, coated
130R1153
DrivePro ExWarr Work Shop PG06 42 Month
130R1156
DrivePro ExWarr Work Shop PG06 60 Month
130R1152
DrivePro ExWarr Work Shop PG06 36 Month
130R1154
DrivePro ExWarr Work Shop PG06 48 Month
130R1155
DrivePro ExWarr Work Shop PG06 54 Month
130R1151
DrivePro ExWarr Work Shop PG06 30 Month
130R1150
DrivePro ExWarr Work Shop PG06 24 Month
130R1157
DrivePro ExWarr Work Shop PG06 66 Month
130R1158
DrivePro ExWarr Work Shop PG06 72 Month
130R1057
DrivePro ExWarr Onsite PG06 66 Months
