137N5692
Part Number: 137N5692
Product Information
Extended Description

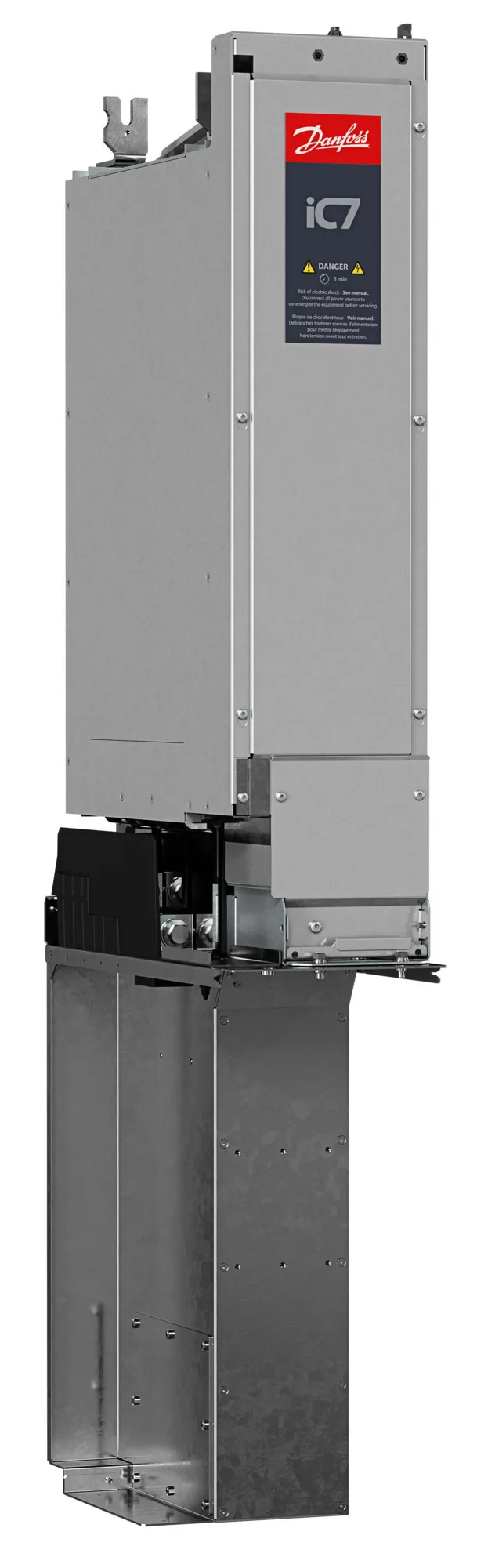

137N5692 Danfoss: iC7-AutomationSystem module, air-cooledIC7-60SA3H05-1410E00F3+AE10+BAMT+BDC1+BEXX+BF20+DAAUIP00/Open Type, Frame: 2xAR113~, low-harmonic, AFE, 380-500 V AC, 1410 AEMC category: C3 categoryControl Panel 2.8 OPX20Standard I/O: I/O and Relay Option OC7C1Modbus TCP OS7MTFunctional Safety: None, not upgradableOther options according to model code
Gross weight
236 kg
Net weight
176 kg
Volume
0 l
EAN
5715253636559
Help Counter
1
Typecode Part 1
7SM-AUSA3H05-1410E00F3
Typecode Part 2
-000135254
Calculated Gross Weight [kg]
236
Calculated Net Weight [kg]
176
Vendor
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
Product series
+DAAU : iC7-Automation
Product group
IC7-60 : iC7-60
Product category
SA : System module, air-cooled
Product type
3H : 3~, low-harmonic, AFE
Mains voltage
05 : 380-500 V AC
Current rating
-1410 : 1410 A
Power rating
XXX : Not relevant
Protection rating
E00 : IP00/Open Type
EMC category
F3 : C3 category
Integration unit
+AE10 : Standard, no filter
Mains input device
+AJXX : None
DC fuses and devices
+AKXX : None
Cooling circuit connector type
+ANXX : Not relevant
Cooling circuit hose length
+AOXX : Not relevant
Marine construction
+AFXX : None
Extra environmental protection
+AGCX : Coated boards
Communication interface, X1/X2
+BAMT : Modbus TCP OS7MT
Communication interface, X0
+BBEL : Ethernet port, no protocol
Standard I/O
+BDC1 : I/O and Relay Option OC7C1
Functional safety
+BEXX : None, not upgradable
Control panel
+BF20 : Control Panel 2.8 OPX20
Control panel mounting type
+BGXX : None
Control panel cable length
+BHXX : None
Control unit cable length
+BKXX : None
StarCoupler board cable length
+BLXX : None
Option slot A
+CAXX : None, without mounting p
Option slot B
+CBXX : None, without mounting plate
Option slot C
+CCXX : None, without mounting plate
Option slot D
+CDXX : None, without mounting plate
Option slot E
+CEXX : None, without mounting plate
Option slot F
+CFXX : None, without mounting plate
Option slot G
+CGXX : None, without mounting plate
Option slot H
+CHXX : None, without mounting plate
Option slot I
+CIXX : None, without mounting plate
Option slot J
+CJXX : None, without mounting plate
Language package
+EL01 : Global
Customer specific application
+DBXX : None
Additional drive features 1
+DD1X : None
Additional drive features 2
+DE2X : None
Additional drive features 3
+DF3X : None
Additional drive features 4
+DG4X : None
Additional drive features 5
+DH5X : None
High speed enabled
+DI6X : No
Customization file package ID
+EAXXXXXX : No customization
Product software ID
+ECXXX : Latest released version
Technical documentation
+EGXX : None
Documentation language
+EHXX : Multi-language
Customer-specific label
+EJXX : None
Shipping package
+TACB : Cardboard box package
Product specific marine cert.
+VBXX : None
Frame designation
2XAR11 : 2xAR11
Modelcode01
IC7-60SA3H05-1410E00F3
Modelcode02
+AE10
Modelcode03
+BAMT+BDC1+BEXX+BF20
Modelcode06
+DAAU
Product Catalog
NO_VIEW : NO VIEW
check if complete
OK
Cooling type
Air Cooled
Enclosure rating
IP00 / OPEN TYPE
Input frequency
50/60Hz
Short circuit current rating
100kA
AC voltage
3X380-500VAC
DC Bus voltage
465-740VDC
Storage temperature
-40...70=C2=B0C/-40...158=C2=B0F
Nominal AC current
1440A(400VAC)/1276A(480VAC)
DC Bus current
1647A(594VDC)
Apparent power
998KVA(400VAC)
DC power
978KW(594VDC)
Main unit Width
2X235MM/9.3IN
Main unit Depth
553MM/21.8IN
Main unit Height
1530MM/60.2IN
Product Type - DrivesSymbol
3 phase low-harmonic, AFE
Product Category -DrivesSymbol
System module, air-cooled
Product View (Switch)
GLBL : Global (Standard)
Salescode part 1
IC7-60SA3H05-1410E00F3
Salescode part 2
+AE10
Salescode part 3
+BAMT+BDC1+BEXX+BF20
Salescode part 4
+DAAU
181B5477
Fuse 750VAC 1200A aR Size44 Type TTF
181B5888
DrivePro Gateway Medium
181B5905
Control unit w/o safety interface board
181B5941
Supply voltage 24VDC wire to control
181B5938
Control wire harnesses for NBU I10/I11
181B5939
LC/LC Duplex multimode cable 52cm
181B5940
Power wire harnesses for NBU I10/I11
181B5942
Resistor 4,7kOhm (NTC) kit
181B5943
Capacitor 4400uF 420VDC for I10 NBU
181B5944
Capacitor 5200uF 420VDC for I11 NBU
181B5991
iC7 AFE/GC pre-charging unit 20 IEC
181B5990
iC7 AFE/GC pre-charging unit 10 IEC
181B5992
iC7 AFE/GC pre-charging unit 30 IEC
181B6066
iC7 AFE/GC pre-charging unit 20 UL
181B6065
iC7 AFE/GC pre-charging unit 10 UL
181B6067
iC7 AFE/GC pre-charging unit 30 UL
181B6068
iC7 Optical fiber cable 0,3m
181B6069
iC7 Optical fiber cable 1,5m
181B6070
iC7 Optical fiber cable 2,5m
181B6071
iC7 Optical fiber cable 5m
Connecting to iC7 Series Remotely via Mobile Network
iC7 Series AFE
Industry Application for iC7-Automation
iC7-Automation Selection Guide
iC7 Series Air-cooled System Modules Design Guide
Functional Extension Options - Installation
iC7 Series Air-cooled System modules Installation guide
iC7 Series Control Panel Mounting Kit
iC7 Series Pre-charging Unit
Functional Extension Options
SGS Fimko FI-56539
SGS Fimko FI-56541
KC R-R-Ddk-IC7
Danfoss EU-UK 00773634.B1
T=C3=9CV Z10 099224 0002 Rev. 00
iC7_AR10_11_Long
MCAD-iC7-60-Modular_control_mech-A
MCAD-iC7-60-AR11-IP00-AE10
MCAD-iC7-OC7C1-A
MCAD-iC7-60-Option_connector-A
MCAD-iC7-60-star8-A
MCAD-iC7-60-star16-A
MCAD-iC7-OC70V0-Voltage_Measurement-A
MCAD-iC7-OC7T0-A
MCAD-iC7-OC7F2-A
iC7-Automation System Module Drive Software
