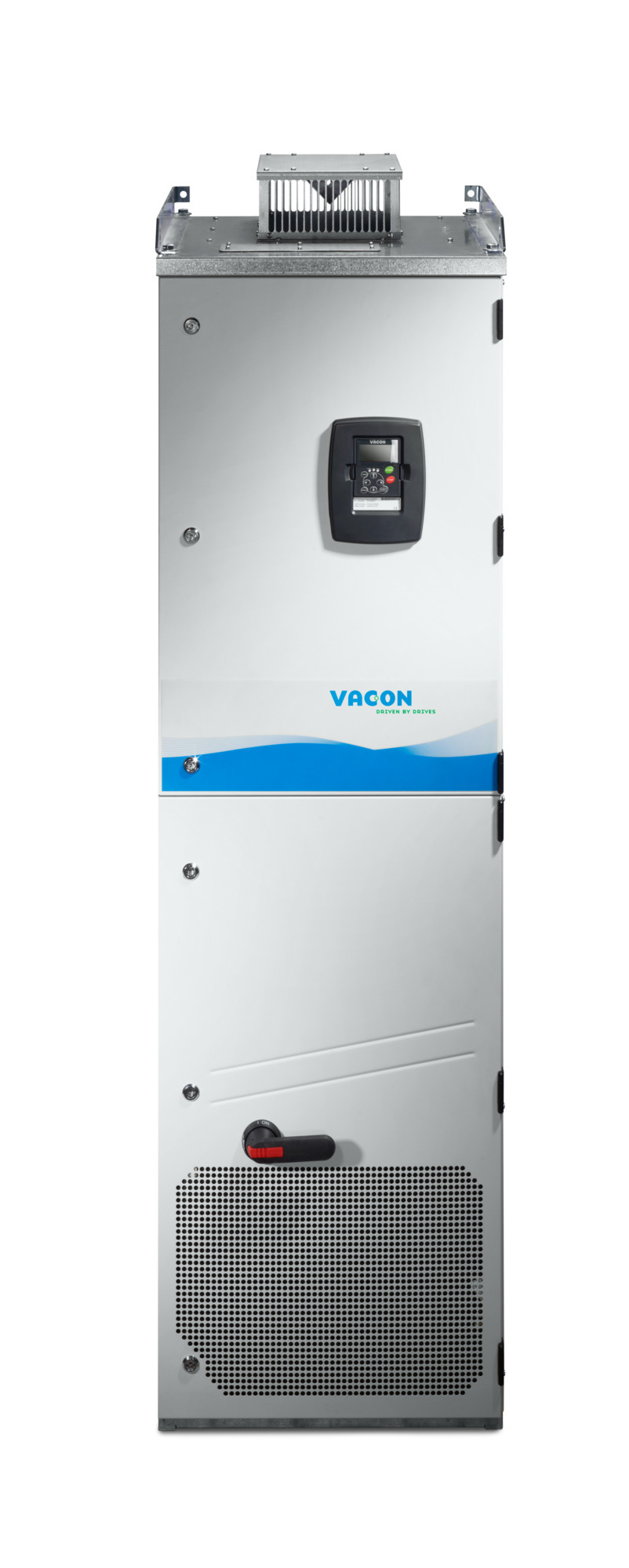

137N5917

Part Number: 137N5917
137N5917
Manufacturer
Danfoss
Part number
137N5917
Category

Product Information

Extended Description

137N5917 Danfoss: NXP05205-A5L1OSB-A1AF000000+FL21+DPAP+GNUL+GNCT+GNKC+GNUA+GNEAVacon NXP Frequency Converter380 =E2=80=93 500 Vac (465-800 Vdc), 520 Amp,IP54/NEMA12Alpha-numeric displayIEC61800-3, 2. enviromentIntegrated Brake chopperA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: STO, ATEX thermC Slot: No boardD Slot: No boardE Slot: No boardManual: EnglishFrame 10ATEX: II (2) GDOther options according to Model code
Gross weight
341 kg
Net weight
340 kg
Volume
0 l
EAN
5715253639512
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXP : NXP Frequency Converter
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
5- : 380 =E2=80=93 500 Vac (465-800 Vdc)
Current
0520 : 520 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
5 : IP54/NEMA12
EMC emission levels
L : IEC61800-3, 2. enviroment
Brake Chopper
1 : Integrated Brake chopper
Electrical Modification
O : Std. + input switch
Card Modifications
B- : Fiber+IntegrControl+varn.PCB
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
AF : STO, ATEX therm
Option Slot C
00 : No board
Option Slot D
00 : No board
Option Slot E
00 : No board
Firmware language package
+FL21 : UK,FI,SE,DK,DE;Nordic
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+A000 : No Special Application
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GNUL : No UL approval
RCM Approval
+GNCT
Marine approval
NONE : no marine approval
KC Approval
+GNKC : No Korean Approval
Ukrainian Approval
+GNUA : No Ukrainian Approval
EAC Approval
+GNEA : No EAC Approval
Region
-R00 : International (-R00)
Frame Size
FR10 : Frame 10
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DP-052055
Typecode Part 2
-000135540
Salestext
FR1005205-5L
Modelcode01
NXP05205-A5L1OSB-
Modelcode02
A1AF000000
Modelcode03
+FL21
Modelcode05
+DPAP+GNUL+GNCT
Modelcode06
+GNKC+GNUA+GNEA
Calculated Net Weight [kg]
340
Calculated Gross Weight [kg]
341
Motor Power Low Overload [kW]
250
Motor Power High Overload [kW]
250
Dimensions WxHxD [mm]
595X2018X602
Continuous Current (NO) [A]
520
Continuous Current (HO) [A]
460
ATEX Marking 1
ATEX: II (2) GD
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DP-052055
check if complete
OK
Help Counter
1
Plant from Orderline
G801
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
181B1559
DC link busbar kit 500V left
181B1560
DC link busbar kit 500V right
181B1562
Control box assembly NX light blue
181B1589
Left Side Board Bracket
181B1551
Brake drive board
181B1460
AC choke 520A
181B1731
DC - wire
181B1639
"Terminal connector R-, R+"
181B1638
Terminal connector 23-21
181B1636
M6x12 ISO7380 Z4-1 TX ZN
181B0325
OPT-E3-V:PROFIBUS DP
181B1930
OPT-A1-V+DNOT:6DI,DO,2AI,1AO,+10Vr,+24V
181B0586
OPT-E7-V:DeviceNet
181B0287
OPT-A1-V:6DI,DO,2AI,1AO,+10Vr,+24V
181B0761
OPT-EC-V:EtherCAT
181B3287
OPT-EA-V:Advanced 2-port ethernet
181B1468
OPT-A2-V+DNOT:2RO(NO/NC)
181B1469
OPT-A4-V+DLES:3DI (Enc.RS422), +5V/+15V
181B1470
OPT-A5-V+DLES:3DI(Enc.10-24V),15/24Vout
181B1471
OPT-AN-V+DNOT:6DI,2AI,2AO,10/-10Vref,24V
130R1167
DrivePro ExWarr Work Shop PG07 66 Month
130R1162
DrivePro ExWarr Work Shop PG07 36 Month
130R1164
DrivePro ExWarr Work Shop PG07 48 Month
130R1163
DrivePro ExWarr Work Shop PG07 42 Month
130R1165
DrivePro ExWarr Work Shop PG07 54 Month
130R1166
DrivePro ExWarr Work Shop PG07 60 Month
130R1168
DrivePro ExWarr Work Shop PG07 72 Month
130R1160
DrivePro ExWarr Work Shop PG07 24 Month
130R1161
DrivePro ExWarr Work Shop PG07 30 Month
130R1068
DrivePro ExWarr Onsite PG07 72 Months
Encoder-less Safety using DOLD Module VACON Condition-based Monitoring VACON=C2=AE NX All in One Application Guide VACON NXP Common DC Bus Selection Guide VACON NXP Grid Converter Selection Guide VACON NXP System Drive Selection Guide VACON=C2=AE NX Door Keypad Mounting Instr. VACON-NX-Line-Voltage-Measurement-OG VACON=C2=AE NXS NXP Air-cooled OG EPD Vacon NXP FR10 Danfoss MD 00779152 B2 IFA 2001240 IFA 2401125 UL E171278 Danfoss EU DPD02212.C Danfoss EU-UK 00736939.E1 Danfoss EU-UK 00760715 D1 Danfoss EU-UK DPD01854 E T=C3=9CV CM-088-17 T=C3=9CV Z10 099224 0001 Rev. 01 VaconNXP_FR10_IP21 OPTAF_VACON_NX OPTA1_VACON_NX MCAD VACON NXS NXP FR10 IP54 Int cabling MCAD VACON NXS NXP FR10 IP54 Base plinth MCAD VACON NXS NXP FR10 Standalone IP54 VACON=C2=AE NXP Advanced Application VACON=C2=AE NCDrive VACON=C2=AE OPT-C7 DeviceNet Firmware VACON=C2=AE OPT-C2 Modbus RTU / N2 Firmware VACON=C2=AE OPT-C3/C5 PROFIBUS DP Firmware VACON=C2=AE OPT-CG S2 Protocol Firmware VACON=C2=AE OPT-CJ BACnet MS/TP Firmware VACON=C2=AE OPT-C4 LonWorks Firmware VACON=C2=AE OPT-CI Modbus TCP/IP Firmware VACON=C2=AE OPT-CP PROFINET IO Firmware
