137N6076

Part Number: 137N6076
137N6076
Manufacturer
Danfoss
Part number
137N6076
Category

Product Information

Extended Description

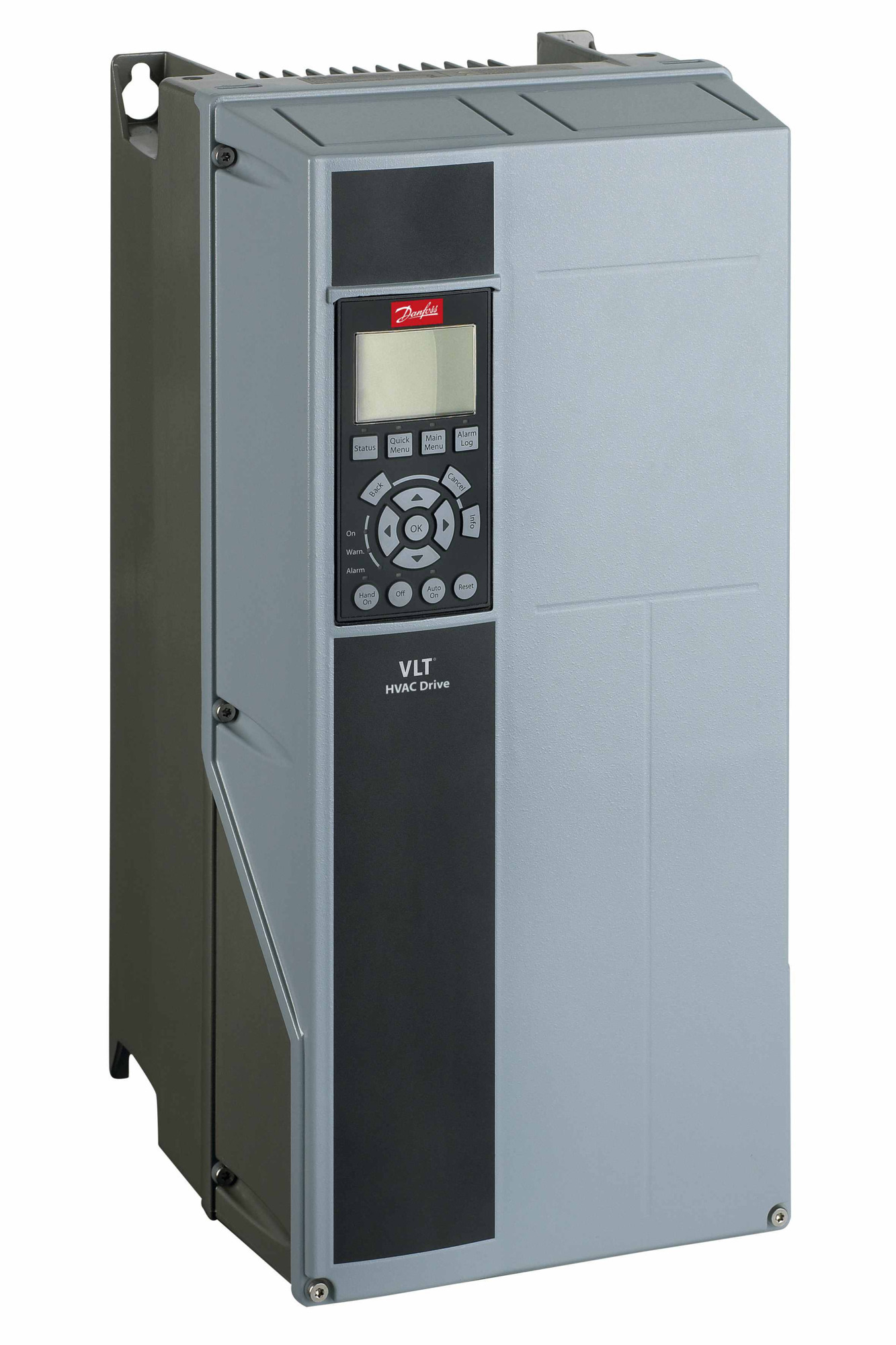

137N6076 Danfoss: Frequency ConverterFC-102P15KT4P66H1TGXXXXSXXXXALBXCXXXXD0VLT=C2=AE HVAC Drive FC-102(P15K) 15 KW / 20 HP, Three phase380 - 480 VAC, (P66) IP66 / NEMA 4X Backplate(H1) RFI Class A1/B (C1)Safe StopGraphical Loc. Cont. PanelNot coated PCB, No Mains OptionLatest release std. SW.Frame: B1No C1 option, MCB-107 24V DC backupPROFINET MCA 120, No B OptionOther options according to Model Code
Gross weight
23.5 kg
Net weight
23.2 kg
Volume
144.67 l
EAN
5715253641249
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
P15K : (P15K) 15 KW / 20 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
P66 : (P66) IP66 / NEMA 4X Backplate
RFI Filter
H1 : (H1) RFI Class A1/B (C1)
Brake - Safe Stop
T : Safe Stop
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
X : Not coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AL : PROFINET MCA 120
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
D0 : MCB-107 24V DC backup
Frame Size
B1 : B1
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102P15KT4P66H1TGX
Typecode Part 2
XXXSXXXXALBXCXXXXD0
Power 110% (NO) [KW]
15
Height [mm]
494,0
Width w/ no C options [mm]
243,0
Depth [mm]
261,0
Depth with Option A/B [mm]
261,0
kVA
22.2
Power Loss NO [W]
392
Continuous Current (NO) [A]
32
Intermittent Current (NO) [A]
35.2
Calculated Gross Weight [kg]
23.5
Calculated Net Weight [kg]
23.2
ECCN EU
Y901
ECCN US
3A999.a
Plant from Orderline
B901
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102P15KT4P66H1TGX
Modelcode02
XXXSXXXXALBXCXXXXD0
130B3434
Back plate IP66/Type 4X, SS, B1
130B4598
Weather shield f. outdoor instl A4 to B2
130B7533
Mounting Kit C Option, B/C/D/E/F(not B3)
130B5436
Side Fixture Mounting Kit
130B5435
DIN Rail Mounting Kit
130B1170
LCP Panel Mounting Kit
130B1135
VLT=C2=AE PROFINET MCA 120, uncoated
130B1125
VLT=C2=AE General Purpose I/O MCB 101,unctd
130B1124
VLT=C2=AE Control Panel LCP 101, numeric
130B1117
LCP Mounting Kit, w/ no LCP
130R1131
DrivePro ExWarr Work Shop PG04 30 Month
130R1134
DrivePro ExWarr Work Shop PG04 48 Month
130R1135
DrivePro ExWarr Work Shop PG04 54 Month
130R1137
DrivePro ExWarr Work Shop PG04 66 Month
130R1138
DrivePro ExWarr Work Shop PG04 72 Month
130R1136
DrivePro ExWarr Work Shop PG04 60 Month
130R1130
DrivePro ExWarr Work Shop PG04 24 Month
130R1132
DrivePro ExWarr Work Shop PG04 36 Month
130R1133
DrivePro ExWarr Work Shop PG04 42 Month
130R1034
DrivePro ExWarr Onsite PG04 48 Months
