137N6605

Part Number: 137N6605
137N6605
Manufacturer
Danfoss
Part number
137N6605
Category

Product Information

Extended Description

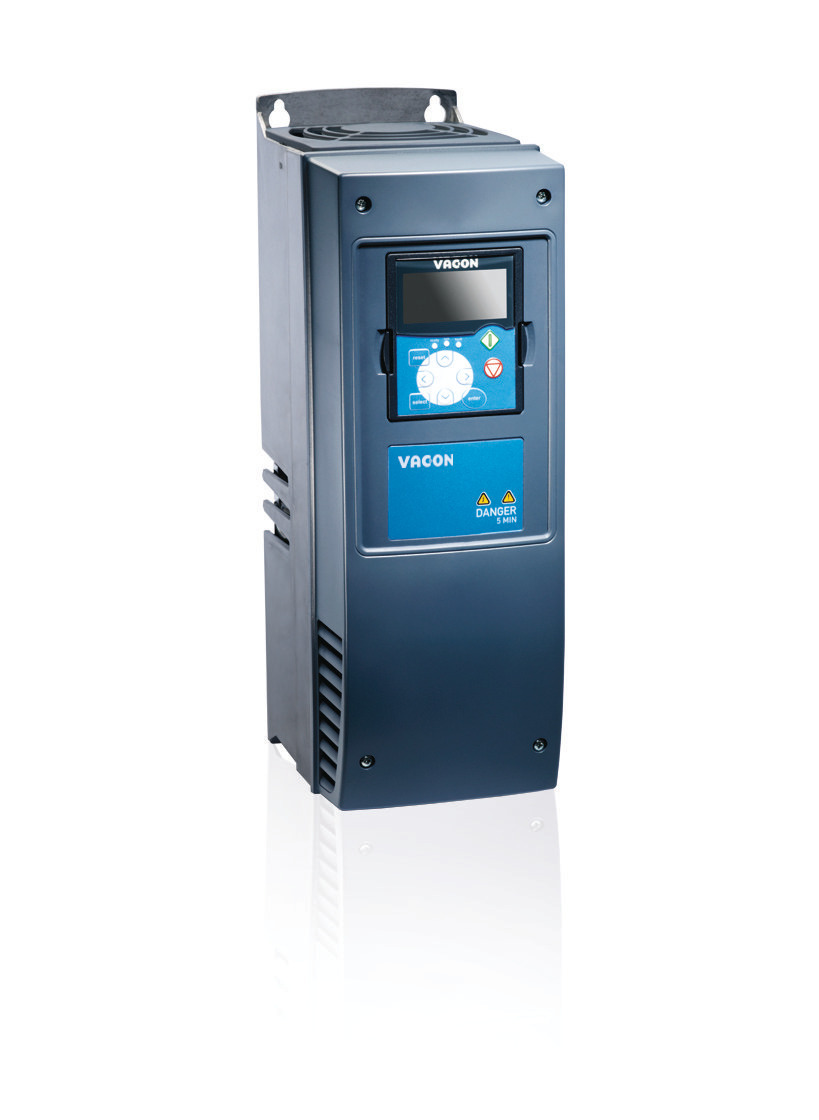

137N6605 Danfoss: NXP00312-A2H1SSV-A1A2000000+QGLM+FL21+APFIFF33+DPAP+DLSEVacon NXP Frequency Converter230 Vac, 31 Amp,IP21/NEMA1Alpha-numeric displayIEC61800-3Integrated Brake chopperA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: 2RO(NO/NC)C Slot: No boardD Slot: No boardE Slot: No boardManual: SwedishFrame 05Other options according to Model code
Gross weight
9.1 kg
Net weight
8.1 kg
Volume
0 l
EAN
5715253646909
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXP : NXP Frequency Converter
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
2- : 230 Vac
Current
0031 : 31 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
2 : IP21/NEMA1
EMC emission levels
H : IEC61800-3
Brake Chopper
1 : Integrated Brake chopper
Electrical Modification
S : 6-pulse with choke
Card Modifications
V- : DirectConn. w Varnished Boards
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGLM : Metric conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
00 : No board
Option Slot D
00 : No board
Option Slot E
00 : No board
Firmware language package
+FL21 : UK,FI,SE,DK,DE;Nordic
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLSE : Swedish
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+APFIFF33 : Lift application NXP, NXI
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FR05 : Frame 05
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DP-003122
Typecode Part 2
-000136207
Salestext
FR0500312-2H
Modelcode01
NXP00312-A2H1SSV-
Modelcode02
A1A2000000+QGLM
Modelcode03
+FL21
Modelcode04
+APFIFF33
Modelcode05
+DPAP+DLSE
Calculated Net Weight [kg]
8.1
Calculated Gross Weight [kg]
9.1
Motor Power Low Overload [kW]
7,5
Motor Power High Overload [kW]
5,5
Dimensions WxHxD [mm]
144X417X214
Continuous Current (NO) [A]
31
Continuous Current (HO) [A]
25
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DP-003122
check if complete
OK
Help Counter
1
Plant from Orderline
D801
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
181B1562
Control box assembly NX light blue
181B1639
"Terminal connector R-, R+"
181B1638
Terminal connector 23-21
181B1636
M6x12 ISO7380 Z4-1 TX ZN
181B1635
M10 Sesko SFS 3738 KP 250
181B1634
M10 Spring washer DIN 679
181B1633
M4x8 DIN 84 PA 1000pcs
181B1632
M6x14 DIN 7985 Z4-1 TX ZN
181B1631
M8 Spring washer DIN 6796
181B1630
M5x12 DIN 7985 Z4-1 TX ZN
181B0325
OPT-E3-V:PROFIBUS DP
181B1930
OPT-A1-V+DNOT:6DI,DO,2AI,1AO,+10Vr,+24V
181B0586
OPT-E7-V:DeviceNet
181B0287
OPT-A1-V:6DI,DO,2AI,1AO,+10Vr,+24V
181B0761
OPT-EC-V:EtherCAT
181B3287
OPT-EA-V:Advanced 2-port ethernet
181B1468
OPT-A2-V+DNOT:2RO(NO/NC)
181B1469
OPT-A4-V+DLES:3DI (Enc.RS422), +5V/+15V
181B1470
OPT-A5-V+DLES:3DI(Enc.10-24V),15/24Vout
181B1471
OPT-AN-V+DNOT:6DI,2AI,2AO,10/-10Vref,24V
130R1121
DrivePro ExWarr Work Shop PG03 30 Month
130R1120
DrivePro ExWarr Work Shop PG03 24 Month
130R1123
DrivePro ExWarr Work Shop PG03 42 Month
130R1126
DrivePro ExWarr Work Shop PG03 60 Month
130R1125
DrivePro ExWarr Work Shop PG03 54 Month
130R1124
DrivePro ExWarr Work Shop PG03 48 Month
130R1127
DrivePro ExWarr Work Shop PG03 66 Month
130R1128
DrivePro ExWarr Work Shop PG03 72 Month
130R1024
DrivePro ExWarr Onsite PG03 48 Months
130R1025
DrivePro ExWarr Onsite PG03 54 Months
Encoder-less Safety using DOLD Module VACON Condition-based Monitoring VACON=C2=AE NX All in One Application Guide VACON NXP Common DC Bus Selection Guide VACON NXP Grid Converter Selection Guide VACON NXP System Drive Selection Guide VACON=C2=AE NX Door Keypad Mounting Instr. VACON-NX-Line-Voltage-Measurement-OG VACON=C2=AE NXS NXP Air-cooled OG Cybersecurity for Vacon NX Drives Danfoss MD 00779152 B2 IFA 2001240 UL E171278 Danfoss EU DPD02212.C Danfoss EU-UK 00736939.E1 Danfoss EU-UK 00760715 D1 Danfoss EU-UK DPD01854 E T=C3=9CV CM-088-17 T=C3=9CV Z10 099224 0001 Rev. 01 Danfoss MD 00773531.A2 VaconNXP_FR5_IP21 MCAD VACON NXS NXP FR5 IP21 Flange MCAD VACON NXS NXP FR5 IP21 OPTA1_VACON_NX MCAD VACON NXS NXP FR5 IP21 Flange hole OPTA2_VACON_NX VACON=C2=AE NXP Advanced Application VACON=C2=AE NCDrive VACON=C2=AE OPT-C7 DeviceNet Firmware VACON=C2=AE OPT-C2 Modbus RTU / N2 Firmware VACON=C2=AE OPT-C3/C5 PROFIBUS DP Firmware VACON=C2=AE OPT-CG S2 Protocol Firmware VACON=C2=AE OPT-CJ BACnet MS/TP Firmware VACON=C2=AE OPT-C4 LonWorks Firmware VACON=C2=AE OPT-CI Modbus TCP/IP Firmware VACON=C2=AE OPT-CP PROFINET IO Firmware
