137N7662

Part Number: 137N7662
137N7662
Manufacturer
Danfoss
Part number
137N7662
Category

Product Information

Extended Description

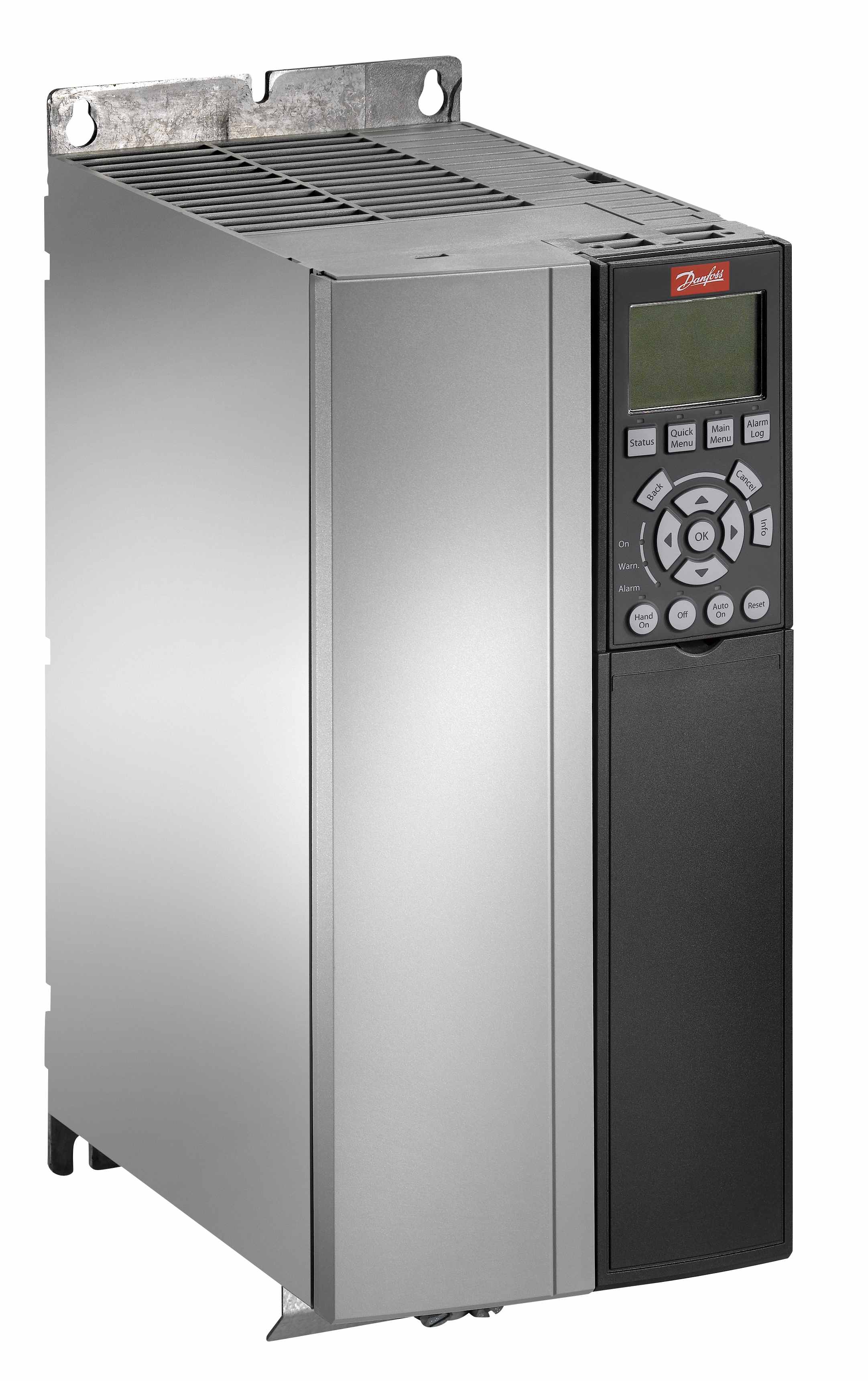

137N7662 Danfoss: Frequency converterFC-103P11KT4E20H5XGXXXXSXXXXAXBPCXXXXDXVLT=C2=AE Refrigeration Drive FC-10311 KW / 15 HP, Three phase380 - 480 VAC, (E20) IP20 / ChassisMaritime use excl. EMC.No brake chopperGraphical Loc. Cont. PanelNot coated PCB, No Mains OptionLatest release std. SW.No A Option, MCB-105 Relay CardNo C1 option, No D optionFrame: B3Other options according to Model code
Gross weight
12 kg
Net weight
11.7 kg
Volume
57.75 l
EAN
5715253657844
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE Refrigeration Drive
Series
103 : 103
Power Rating
P11K : 11 KW / 15 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H5 : Maritime use excl. EMC.
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
X : Not coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BP : MCB-105 Relay Card
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
B3 : B3
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-103P11KT4E20H5XGX
Typecode Part 2
XXXSXXXXAXBPCXXXXDX
Power 110% (NO) [KW]
11
Height [mm]
399,0
Width w/ no C options [mm]
165,0
Width w/ two C options [mm]
225,0
Depth [mm]
249,0
Depth with Option A/B [mm]
262,0
kVA
16.6
Power Loss NO [W]
278
Continuous Current (NO) [A]
24
Intermittent Current (NO) [A]
26.4
Calculated Gross Weight [kg]
12
Calculated Net Weight [kg]
11.7
ECCN EU
Y901
ECCN US
3A999.a
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-103P11KT4E20H5XGX
Modelcode02
XXXSXXXXAXBPCXXXXDX
130B3566
Left front cover for frame H10 and B3
130B3565
Left side cover for frame H10 and B3
130B3564
Right side cover for frame H10 and B3
130B1980
Power Card 11kW 400V H5 filter
130B9980
Cable assy f. motor cable, C2
130B9001
multiple 2 pole power combicon, 24V plug
130B5728
DC coil 0.78mh/34a for frame B3
130B1210
VLT=C2=AE Relay Option MCB 105, coated
130B1410
Front cover right with option
130B1008
Frame for LCP Control Pad with option
130B7407
NEMA 1 Conversion Kit, Top, 10 pcs, B3
130B5764
Leakage Current Monitor Kit, B3
130B1188
IP21 conversion kit, top, B3
130B1187
IP 21/Type 1 conversion kit, B3
130B1170
LCP Panel Mounting Kit
130B1387
5xMCB107 24VDC no coat w.out mount brack
130B1385
VLT=C2=AE Profibus DP V1 MCA101, unctd 5pcs
130B1135
VLT=C2=AE PROFINET MCA 120, uncoated
130B1117
LCP Mounting Kit, w/ no LCP
130B1108
VLT=C2=AE 24V DC Supply MCB 107, uncoated
130R1131
DrivePro ExWarr Work Shop PG04 30 Month
130R1134
DrivePro ExWarr Work Shop PG04 48 Month
130R1135
DrivePro ExWarr Work Shop PG04 54 Month
130R1137
DrivePro ExWarr Work Shop PG04 66 Month
130R1138
DrivePro ExWarr Work Shop PG04 72 Month
130R1136
DrivePro ExWarr Work Shop PG04 60 Month
130R1130
DrivePro ExWarr Work Shop PG04 24 Month
130R1132
DrivePro ExWarr Work Shop PG04 36 Month
130R1133
DrivePro ExWarr Work Shop PG04 42 Month
130R1034
DrivePro ExWarr Onsite PG04 48 Months
