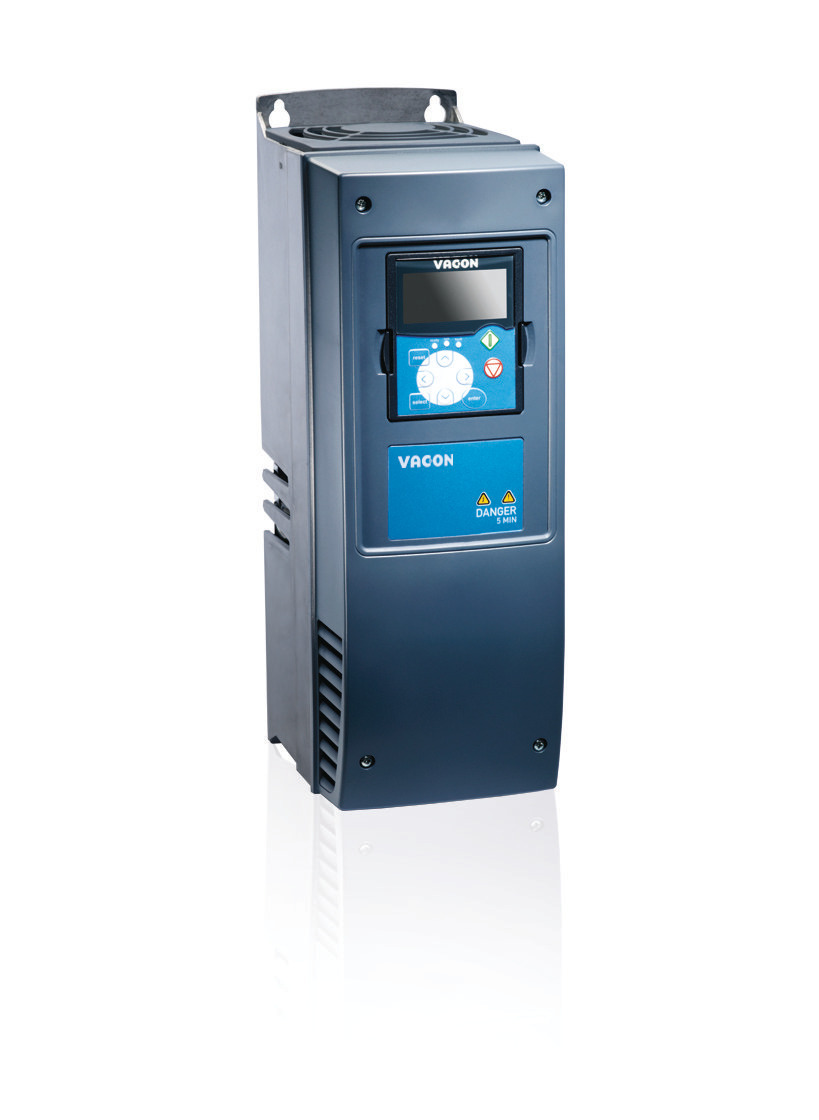

137N8318

Part Number: 137N8318
137N8318
Manufacturer
Danfoss
Part number
137N8318
Category

Product Information

Extended Description

137N8318 Danfoss: NXP00315-A5T1SSV-A1AF0000E5+QGLM+FL23+DPAP+DLDEVacon NXP Frequency Converter380 =E2=80=93 500 Vac (465-800 Vdc), 31 Amp,IP54/NEMA12Alpha-numeric displayIEC61800-3 for IT networksIntegrated Brake chopperA Slot: 6DI,DO,2AI,1AO,+10Vr,+24VB Slot: STO, ATEX thermC Slot: No boardD Slot: No boardE Slot: PROFIBUS DP with Sub-D9Manual: GermanFrame 05ATEX: II (2) GDOther options according to Model code
Gross weight
9.1 kg
Net weight
8.1 kg
Volume
0 l
EAN
5715253664491
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXP : NXP Frequency Converter
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
S : Standard air cooled drive
Mains voltage
5- : 380 =E2=80=93 500 Vac (465-800 Vdc)
Current
0031 : 31 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
5 : IP54/NEMA12
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
1 : Integrated Brake chopper
Electrical Modification
S : 6-pulse with choke
Card Modifications
V- : DirectConn. w Varnished Boards
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGLM : Metric conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
AF : STO, ATEX therm
Option Slot C
00 : No board
Option Slot D
00 : No board
Option Slot E
E5 : PROFIBUS DP with Sub-D9
Firmware language package
+FL23 : UK,NL,DE,FR,ITWestEurII
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLDE : German
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+A000 : No Special Application
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
FR05 : Frame 05
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DP-003155
Typecode Part 2
-000138048
Salestext
FR0500315-5T
Modelcode01
NXP00315-A5T1SSV-
Modelcode02
A1AF0000E5+QGLM
Modelcode03
+FL23
Modelcode05
+DPAP+DLDE
Calculated Net Weight [kg]
8.1
Calculated Gross Weight [kg]
9.1
Motor Power Low Overload [kW]
15
Motor Power High Overload [kW]
11
Dimensions WxHxD [mm]
144X417X214
Continuous Current (NO) [A]
31
Continuous Current (HO) [A]
23
ATEX Marking 1
ATEX: II (2) GD
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DP-003155
check if complete
OK
Help Counter
1
Plant from Orderline
D801
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
181B1562
Control box assembly NX light blue
181B1639
"Terminal connector R-, R+"
181B1638
Terminal connector 23-21
181B1636
M6x12 ISO7380 Z4-1 TX ZN
181B1635
M10 Sesko SFS 3738 KP 250
181B1634
M10 Spring washer DIN 679
181B1633
M4x8 DIN 84 PA 1000pcs
181B1632
M6x14 DIN 7985 Z4-1 TX ZN
181B1631
M8 Spring washer DIN 6796
181B1630
M5x12 DIN 7985 Z4-1 TX ZN
181B0325
OPT-E3-V:PROFIBUS DP
181B1930
OPT-A1-V+DNOT:6DI,DO,2AI,1AO,+10Vr,+24V
181B0586
OPT-E7-V:DeviceNet
181B0287
OPT-A1-V:6DI,DO,2AI,1AO,+10Vr,+24V
181B0761
OPT-EC-V:EtherCAT
181B3287
OPT-EA-V:Advanced 2-port ethernet
181B1468
OPT-A2-V+DNOT:2RO(NO/NC)
181B1469
OPT-A4-V+DLES:3DI (Enc.RS422), +5V/+15V
181B1470
OPT-A5-V+DLES:3DI(Enc.10-24V),15/24Vout
181B1471
OPT-AN-V+DNOT:6DI,2AI,2AO,10/-10Vref,24V
130R1121
DrivePro ExWarr Work Shop PG03 30 Month
130R1120
DrivePro ExWarr Work Shop PG03 24 Month
130R1123
DrivePro ExWarr Work Shop PG03 42 Month
130R1126
DrivePro ExWarr Work Shop PG03 60 Month
130R1125
DrivePro ExWarr Work Shop PG03 54 Month
130R1124
DrivePro ExWarr Work Shop PG03 48 Month
130R1127
DrivePro ExWarr Work Shop PG03 66 Month
130R1128
DrivePro ExWarr Work Shop PG03 72 Month
130R1024
DrivePro ExWarr Onsite PG03 48 Months
130R1025
DrivePro ExWarr Onsite PG03 54 Months
