137N9896

Part Number: 137N9896
137N9896
Manufacturer
Danfoss
Part number
137N9896
Category

Product Information

Extended Description

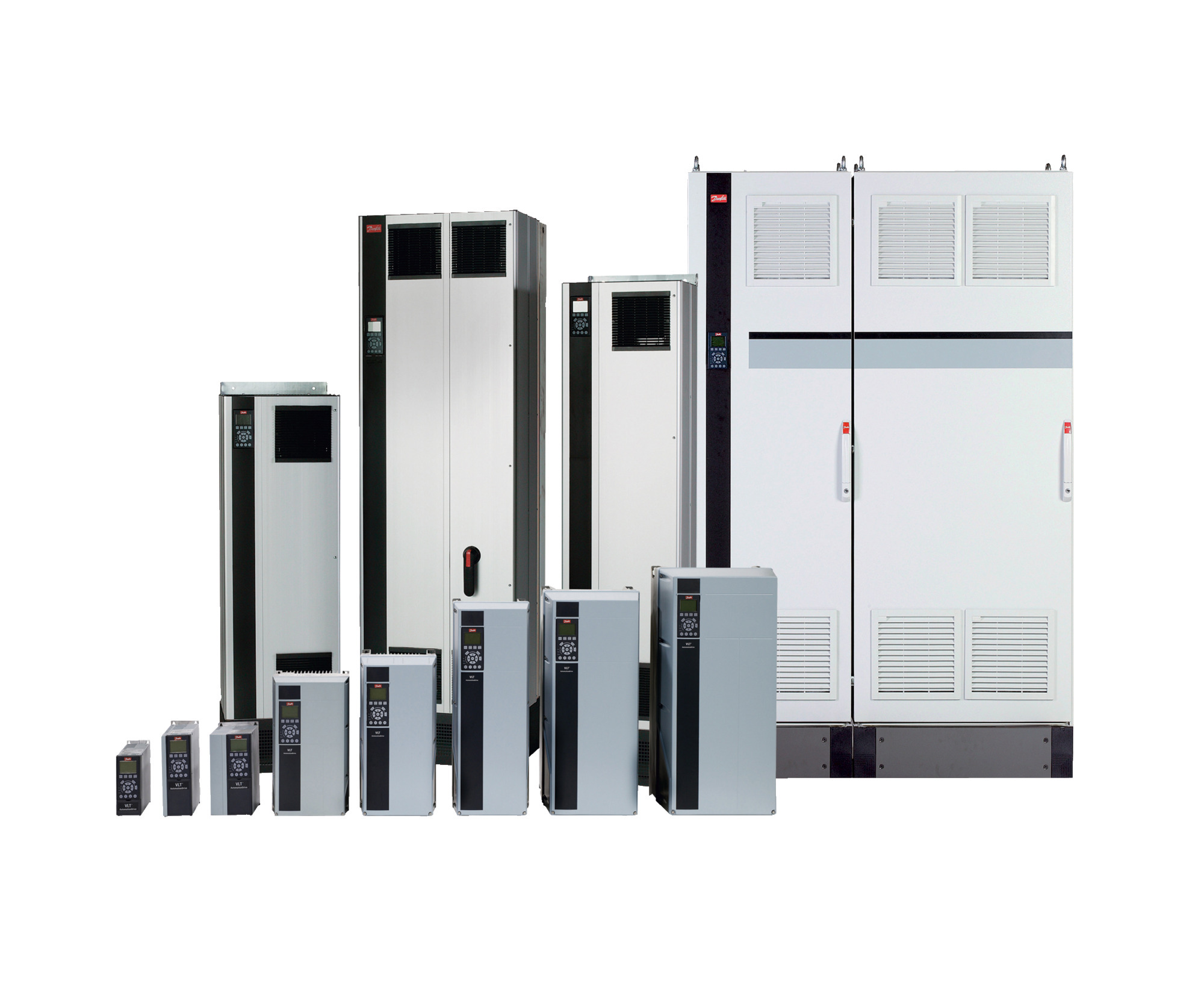

137N9896 Danfoss: Frequency converterFC-302P30KT7E20H4BGCDXXSXXXXA0BXCXRXXDXVLT=C2=AE AutomationDrive FC-302(P30K) 30 KW / 40 HP, Three phase525 - 690 VAC *, (E20) IP20 / ChassisRFI class A1 (C2)Brake chopperGraphical Loc. Cont. PanelCoated PCB, LoadsharingLatest release std. SW.Frame: B4MCB-113 Ext. Relay Card, No D optionPROFIBUS DP MCA 101, No B OptionOther options according to Model code
Gross weight
23.58 kg
Net weight
22.62 kg
Volume
144.67 l
EAN
5715253680637
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE AutomationDrive FC-
Series
302 : 302
Power Rating
P30K : (P30K) 30 KW / 40 HP
Phase
T : Three phase
Mains Voltage
7 : 525 - 690 VAC *
Possible rating issue
WARN01 : Possible Rating Issue:
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H4 : RFI class A1 (C2)
Brake - Safe Stop
B : Brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
D : Loadsharing
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
A0 : PROFIBUS DP MCA 101
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
R : MCB-113 Ext. Relay Card
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
B4 : B4
Typecode Part 1
FC-302P30KT7E20H4BGC
Typecode Part 2
DXXSXXXXA0BXCXRXXDX
Product Catalog
NO_VIEW : NO VIEW
Power 150% (HO) [KW]
30
Power 110% (NO) [KW]
37
Height [mm]
516,0
Width w/ no C options [mm]
229,0
Depth [mm]
242,0
Depth with Option A/B [mm]
242,0
kVA
40.6
Power Loss NO [W]
740
Power Loss HO [W]
600
Continuous Current (NO) [A]
43
Intermittent Current (NO) [A]
47.3
Continuous Current (HO) [A]
36
Intermittent Current (HO) [A]
54
Calculated Gross Weight [kg]
23.58
Calculated Net Weight [kg]
22.62
ECCN EU
Y901
ECCN US
3A999.a
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-302P30KT7E20H4BGC
Modelcode02
DXXSXXXXA0BXCXRXXDX
Recommended Plant
ERR01
130B3290
VLT=C2=AE Safe option MCB 151, coated
130B3280
VLT=C2=AE Safe option MCB 150, coated
130B4172
Back plate IP20/Chassis, B4
130B7533
Mounting Kit C Option, B/C/D/E/F(not B3)
130B7635
VLT=C2=AE Lift Controller MCO 361
130B7145
VLT=C2=AE SALT Controller MCO 360
130B9860
VLT=C2=AE Safety Option MCB152, coated
130B5765
Leakage Current Monitor Kit, B4
130B5436
Side Fixture Mounting Kit
130B5435
DIN Rail Mounting Kit
130R1131
DrivePro ExWarr Work Shop PG04 30 Month
130R1134
DrivePro ExWarr Work Shop PG04 48 Month
130R1135
DrivePro ExWarr Work Shop PG04 54 Month
130R1137
DrivePro ExWarr Work Shop PG04 66 Month
130R1138
DrivePro ExWarr Work Shop PG04 72 Month
130R1136
DrivePro ExWarr Work Shop PG04 60 Month
130R1130
DrivePro ExWarr Work Shop PG04 24 Month
130R1132
DrivePro ExWarr Work Shop PG04 36 Month
130R1133
DrivePro ExWarr Work Shop PG04 42 Month
130R1034
DrivePro ExWarr Onsite PG04 48 Months
Encoder-less Safety using DOLD Module Siemens S7 PLC and FC 300 Profibus VLT drives with integrated CBM VLT Integrated Motion Controller Appl G. VLT=C2=AE Drives Motor overload protection VLT AutomationDrive FC 301-302, VLT Decentral Drive FCD 302 SG VLT=C2=AE Advanced Harmonic Filter AHF005-010 VLT=C2=AE AutomationDrive FC301-302 0.25-75kW VLT=C2=AE Brake Resistor MCE 101 VLT=C2=AE FC Series Output Filter Design G. Danfoss MD 00779152 B2 SASO KSA R-205899 UL E236048 UL E70524 KC R-R-Ddk FC302 PSL File Danfoss 24899 PSL-File Danfoss-24800 Danfoss EU-UK 00730217 A10 Danfoss EU-UK 00730264 A5 Danfoss EU-UK 00730297 A6 VLT_B4_IP20 130B1164_Eplan MCAD FC B4 IP20 130B1107_E-plan 130B1264_Eplan 130B1200_Eplan 130B1100_Eplan Wiring Schematic FC 103, FC 302 Remote_LCP_holder MCAD FC B4 IP20 Back plate VLT=C2=AE Drives EtherNet/IP EDS VLT=C2=AE AutomationDrive Support File VLT=C2=AE Motion Control Tool MCT31 VLT=C2=AE AutomationDrive FC 301 Simulator VLT=C2=AE AutomationDrive FC 302 Simulator VLT=C2=AE EtherNet/IP Add-on Instructions VLT=C2=AE Drives DeviceNet EDS VLT=C2=AE MCA101 PROFIBUS GSD VLT=C2=AE MCA120 PROFINET GSDML VLT=C2=AE MCA123 POWERLINK XDD
