137U0599
Part Number: 137U0599
Product Information
Extended Description

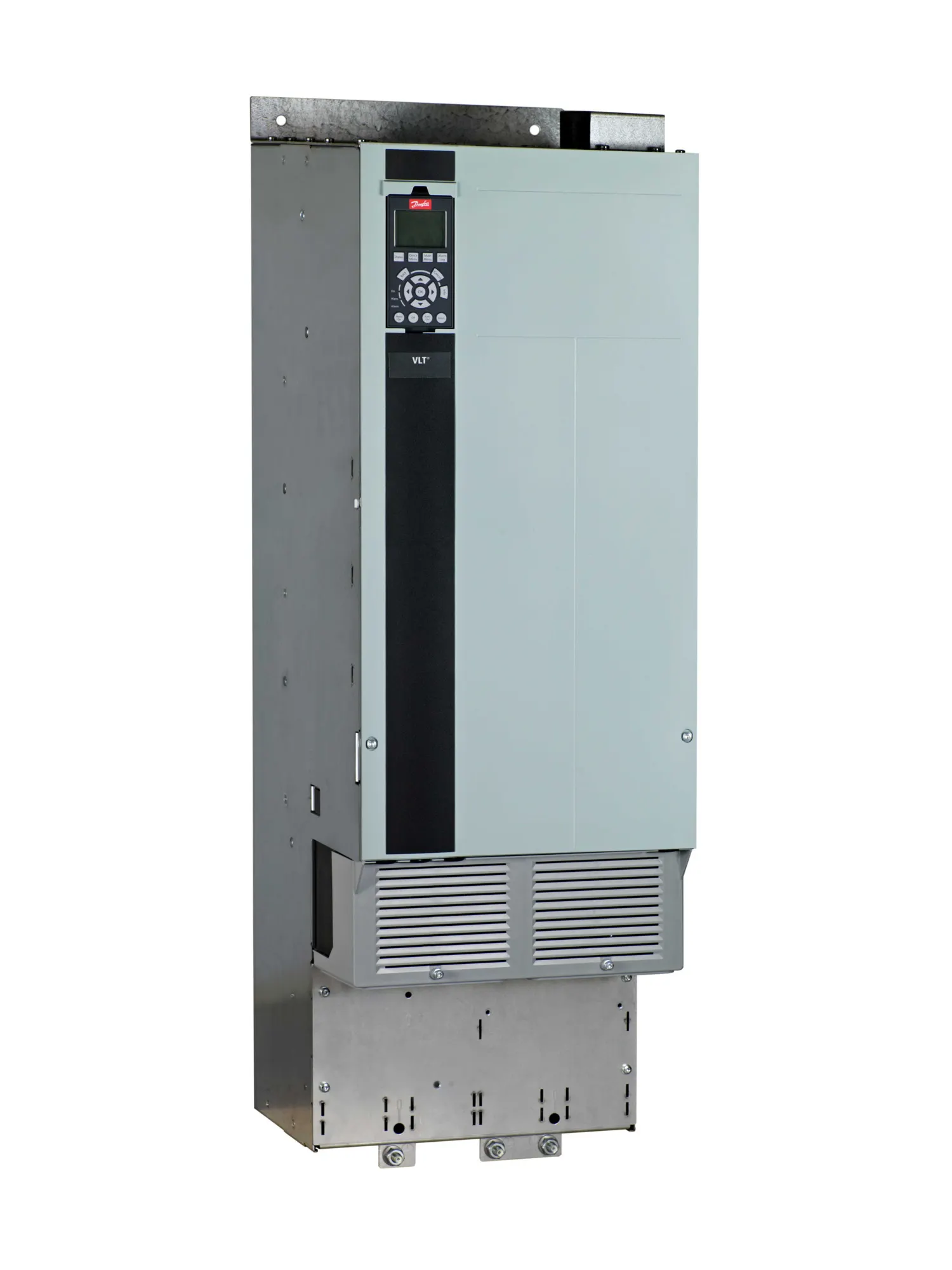

137U0599 Danfoss: Frequency ConverterFC-102N250T4E20H4XGRXXXSXXXXAXBKCXXXXDXVLT=C2=AE HVAC Drive FC-102(N250) 250 KW / 350 HP, Three phase380 - 480 VAC, (E20) IP20 / ChassisRFI class A1 (C2)No brake chopperGraphical Loc. Cont. PanelCoated PCB 3C3 + Ruggedised, No Mains OptionLatest release std. SW.Frame: D4HNo C1 option, No D optionNo A Option, MCB-101 General purp. I/OOther options according to Model Code
Gross weight
125.3 kg
Net weight
125 kg
Volume
0 l
EAN
5715253688152
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
N250 : (N250) 250 KW / 350 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H4 : RFI class A1 (C2)
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
R : Coated PCB 3C3 + Ruggedised
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
BK : MCB-101 General purp. I/O
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
D4H : D4H
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-102N250T4E20H4XGR
Typecode Part 2
XXXSXXXXAXBKCXXXXDX
Power 110% (NO) [KW]
250
Height [mm]
1122,0
Height w/ Regen/Loadshare [mm]
1268,0
Width w/ no C options [mm]
350,0
Depth [mm]
375,0
Depth with Option A/B [mm]
375,0
kVA
333
Power Loss NO [W]
5129
Continuous Current (NO) [A]
480
Intermittent Current (NO) [A]
528
Calculated Gross Weight [kg]
125.3
Calculated Net Weight [kg]
125
ECCN EU
Y901
ECCN US
3A999.a
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102N250T4E20H4XGR
Modelcode02
XXXSXXXXAXBKCXXXXDX
Recommended Plant
ERR01
176F3527
kit,cooling,in bottom out back,d2h d4h
176F3628
Cooling Kit, in btm/out top, 1800mm D4h
176F3626
Cooling Kit, in back/out back, D4h
176F3634
Cooling Kit, in back/out back, D4h
176F3630
Cooling Kit, in btm/out top, 2000mm, D4h
176F3410
Adapter Plate, D2h/D4h
130B1170
LCP Panel Mounting Kit
130B1385
VLT=C2=AE Profibus DP V1 MCA101, unctd 5pcs
130B1135
VLT=C2=AE PROFINET MCA 120, uncoated
130B1124
VLT=C2=AE Control Panel LCP 101, numeric
130R1153
DrivePro ExWarr Work Shop PG06 42 Month
130R1156
DrivePro ExWarr Work Shop PG06 60 Month
130R1152
DrivePro ExWarr Work Shop PG06 36 Month
130R1154
DrivePro ExWarr Work Shop PG06 48 Month
130R1155
DrivePro ExWarr Work Shop PG06 54 Month
130R1151
DrivePro ExWarr Work Shop PG06 30 Month
130R1150
DrivePro ExWarr Work Shop PG06 24 Month
130R1157
DrivePro ExWarr Work Shop PG06 66 Month
130R1158
DrivePro ExWarr Work Shop PG06 72 Month
130R1057
DrivePro ExWarr Onsite PG06 66 Months
