137U0690

Part Number: 137U0690
137U0690
Manufacturer
Danfoss
Part number
137U0690
Category

Product Information

Extended Description

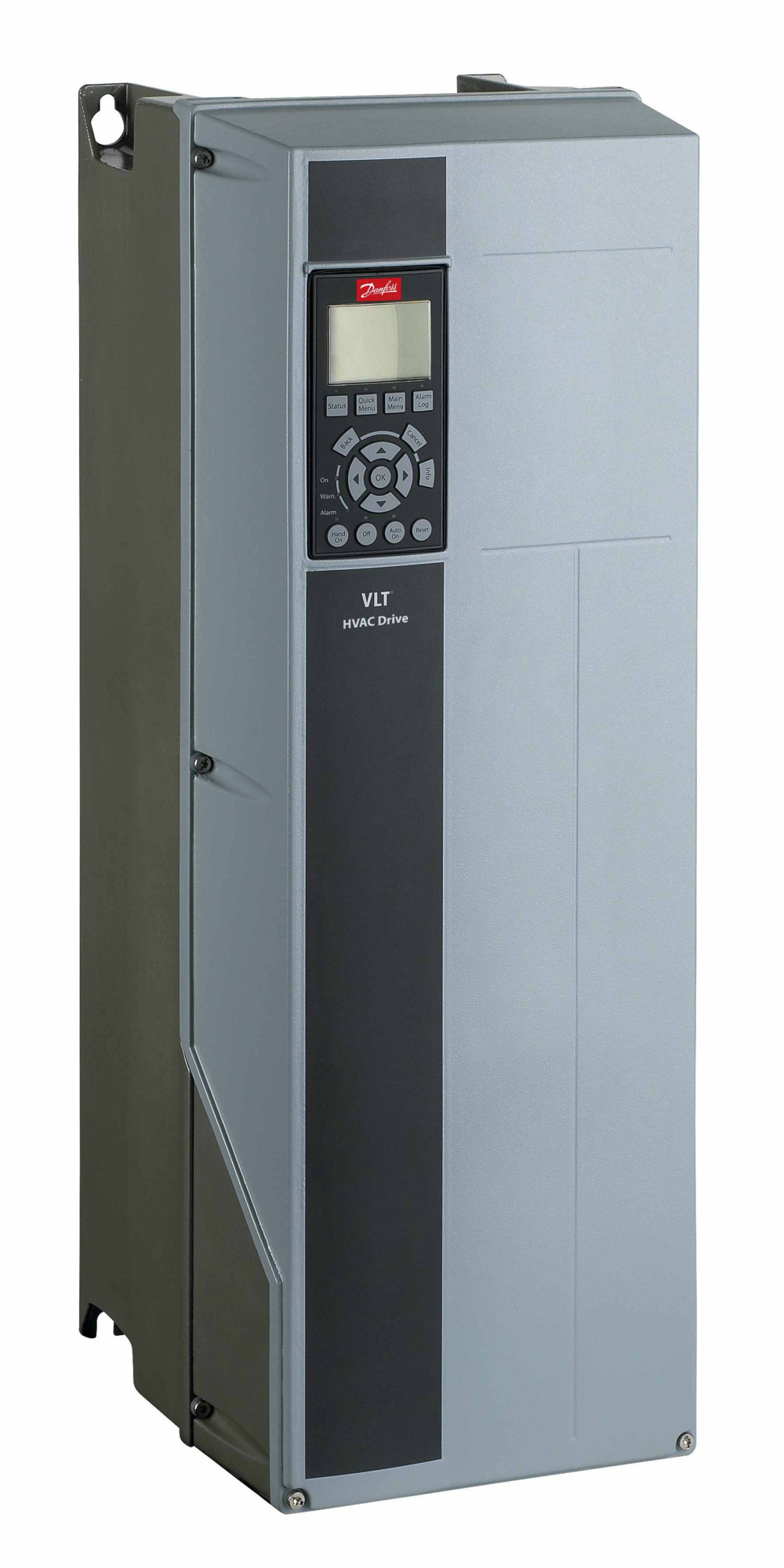

137U0690 Danfoss: Frequency converterFC-103P22KT4P55H2XGX1XXSXXXXAXB0CXXXXDXVLT=C2=AE Refrigeration Drive FC-10322 KW / 30 HP, Three phase380 - 480 VAC, IP55 / Type12 BackplateRFI filter Class A2No brake chopperGraphical Loc. Cont. PanelNot coated PCB, Mains DisconnectLatest release std. SW.No A Option, MCB-109 I/O, RTC Back-upNo C1 option, No D optionFrame: B2Other options according to Model code
Gross weight
30.1 kg
Net weight
29.8 kg
Volume
105.71 l
EAN
5715253689180
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE Refrigeration Drive
Series
103 : 103
Power Rating
P22K : 22 KW / 30 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
P55 : IP55 / Type12 Backplate
RFI Filter
H2 : RFI filter Class A2
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
X : Not coated PCB
Mains Option
1 : Mains Disconnect
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AX : No A Option
B Option
B0 : MCB-109 I/O, RTC Back-up
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
DX : No D option
Frame Size
B2 : B2
Product Catalog
NO_VIEW : NO VIEW
Typecode Part 1
FC-103P22KT4P55H2XGX
Typecode Part 2
1XXSXXXXAXB0CXXXXDX
Power 110% (NO) [KW]
22
Height [mm]
664,0
Width w/ no C options [mm]
243,0
Depth [mm]
261,0
Depth with Option A/B [mm]
261,0
kVA
30.5
Power Loss NO [W]
525
Continuous Current (NO) [A]
44
Intermittent Current (NO) [A]
48.4
Calculated Gross Weight [kg]
30.1
Calculated Net Weight [kg]
29.8
ECCN EU
Y901
ECCN US
3A999.a
Plant from Orderline
B901
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-103P22KT4P55H2XGX
Modelcode02
1XXSXXXXAXB0CXXXXDX
176F2244
Front cover with disc. hole for frame B2
130B3381
RFI Filter 200/500V basic A2 frame B2
130B9980
Cable assy f. motor cable, C2
130B9001
multiple 2 pole power combicon, 24V plug
130B1243
VLT=C2=AE Analog I/O Option MCB 109, coated
130B1030
Mains switch 63A
130B0264
Cradle for A5,B1,B2,C1,C2,D2h enclosure
130B0295
sparepart/terminals accessory bag
130B1077
Blindcover, w/ Danfoss logo, IP55/66
130B1069
Multiple relay 1 plug
130B3465
Back plate IP66/Type 4X, SS, B2
130B4598
Weather shield f. outdoor instl A4 to B2
130B7533
Mounting Kit C Option, B/C/D/E/F(not B3)
130B5436
Side Fixture Mounting Kit
130B5435
DIN Rail Mounting Kit
130B1170
LCP Panel Mounting Kit
130B1387
5xMCB107 24VDC no coat w.out mount brack
130B1385
VLT=C2=AE Profibus DP V1 MCA101, unctd 5pcs
130B1135
VLT=C2=AE PROFINET MCA 120, uncoated
130B1117
LCP Mounting Kit, w/ no LCP
130R1131
DrivePro ExWarr Work Shop PG04 30 Month
130R1134
DrivePro ExWarr Work Shop PG04 48 Month
130R1135
DrivePro ExWarr Work Shop PG04 54 Month
130R1137
DrivePro ExWarr Work Shop PG04 66 Month
130R1138
DrivePro ExWarr Work Shop PG04 72 Month
130R1136
DrivePro ExWarr Work Shop PG04 60 Month
130R1130
DrivePro ExWarr Work Shop PG04 24 Month
130R1132
DrivePro ExWarr Work Shop PG04 36 Month
130R1133
DrivePro ExWarr Work Shop PG04 42 Month
130R1034
DrivePro ExWarr Onsite PG04 48 Months
