137U1440

Part Number: 137U1440
137U1440
Manufacturer
Danfoss
Part number
137U1440
Category

Product Information

Extended Description

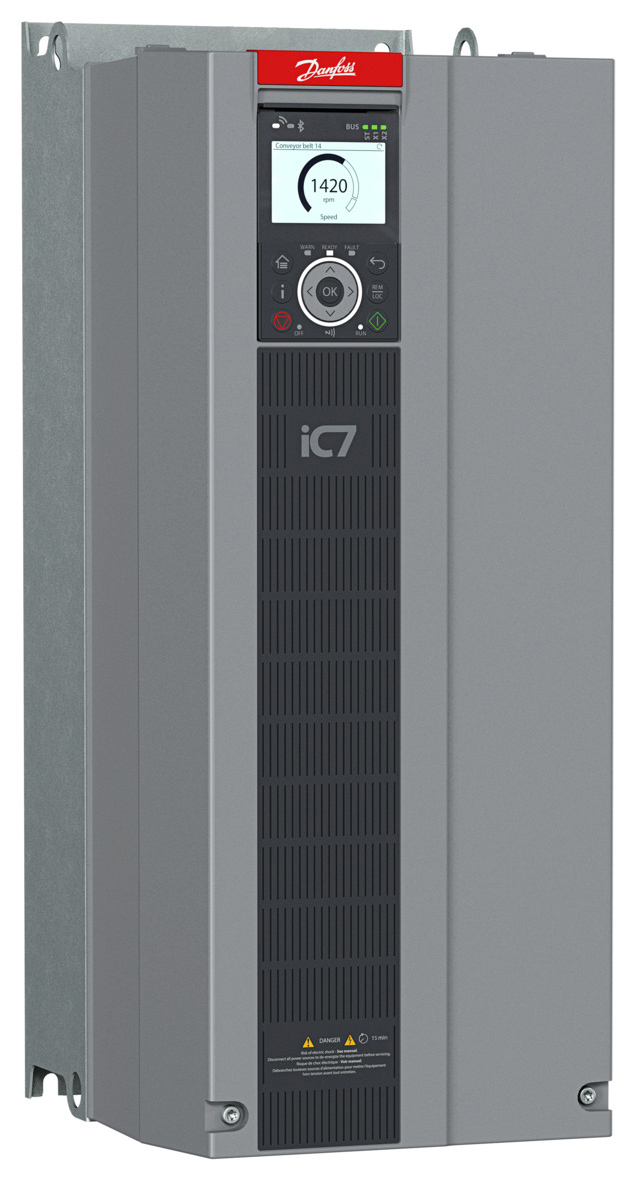

137U1440 Danfoss: iC7-AutomationFrequency converter,air-cooledIC7-60FA3N05-106AE20F3+BAIP+BDBA+BEF1+BF20+DAAUIP20/Open Type, Frame: FA073~, 380-500 V AC,106 AEMC category: C3 categoryControl Panel 2.8 OPX20Standard I/O: 4xDI, 2xDI/O, 2xAI, 1xAO, 2xROEtherNet/IP OS7IPFunctional Safety: STO, not upgradableOther options according to model code
Gross weight
40.42 kg
Net weight
33.85 kg
Volume
109.92 l
EAN
5715253697475
Help Counter
1
Typecode Part 1
7FC-AUFA3N05-106AE20F3
Typecode Part 2
-000141726
Calculated Gross Weight [kg]
40.42
Calculated Net Weight [kg]
33.85
Vendor
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
Product series
+DAAU : iC7-Automation
Product group
IC7-60 : iC7-60
Product category
FA : Frequency converter,air-cooled
Product type
3N : 3~
Mains voltage
05 : 380-500 V AC
Current rating
-106A : 106 A
Power rating
55K : 55 kW/75 hp
Protection rating
E20 : IP20/Open Type
EMC category
F3 : C3 category
Cable entry and EMC plate
+AAST : Standard plate
Integrated brake chopper
+ACXX : None
Extra environmental protection
+AGXX : None
Humidity protection device
+AHXX : None
Mains input device
+AJXX : None
DC terminals
+ALXX : None
Touch protection
+AMXX : None
Heat sink access panel
+APXX : None
Communication interface, X1/X2
+BAIP : EtherNet/IP OS7IP
Standard I/O
+BDBA : 4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO
Functional safety
+BEF1 : STO, not upgradable
Control panel
+BF20 : Control Panel 2.8 OPX20
Interface board
+BISR : MicroSD card reader and RTC
Option slot A
+CAX0 : None
Option slot B
+CBXX : None, not upgradable
Option slot C
+CCX0 : None
Option slot D
+CDX0 : None
Option Slot E
+CEX0 : None
Product software ID
+ECXXX : Latest released version
Technical documentation
+EGIN : Installation guide
Integrated common-mode filter
+AIXX : None
Communication interface, X0
+BBEL : Ethernet port, no protocol
Customer specific application
+DBXX : None
Additional drive features 1
+DD1X : None
Additional drive features 2
+DE2X : None
Additional drive features 3
+DF3X : None
Additional drive features 4
+DG4X : None
Additional drive features 5
+DH5X : None
High speed enabled
+DI6X : No
Customization file package ID
+EAXXXXXX : No customization
Customer-specific label
+EJXX : None
Language package
+EL01 : Global
Product specific marine cert.
+VBXX : None
Frame designation
FA07 : FA07
Modelcode01
IC7-60FA3N05-106AE20F3
Modelcode03
+BAIP+BDBA
Modelcode04
+BEF1+BF20
Modelcode05
+DAAU
Product Catalog
NO_VIEW : NO VIEW
Efficiency class-Relative loss
IE2 - 1.54%
Maximum Power Loss LO [W]
1204
Enclosure rating
IP20 / OPEN TYPE
Input frequency
50/60Hz
Output frequency
0-590Hz
Input current in Normal Overlo
103/90A
Short circuit current rating
100kA
Ambient temp. normal overload
45=C2=B0C/113=C2=B0F
Input Voltage
3x380-500V
Typical motor power PL (110%)
55KW(400V)/75HP(460V)
Typical motor power PH (150%)
55KW(400V)/75HP(460V)
Continous current IL (1/10min)
106/96A
Continous current IH (1/10min)
106/96A
Continous current IH (1/5min)
90/81A
Main unit Width
230
Main unit Height
600
Main unit Depth
308
Product View (Switch)
GLBL : Global (Standard)
136B1569
Encoder/Resolver Option OC7M0
136B2055
Blind Panel OPX00
136B2083
Control panel surface mounting kit
136B2084
Control panel cable 2.5m
136B3093
STO Jumper clip
136B2085
Control panel cable 5 m
136B2086
Control panel cable 10 m
136B2082
Control panel flush mounting kit
136B2936
Main fan FA/FK07
136B3160
I/O connector (X14)
136B1569
Encoder/Resolver Option OC7M0
136B2055
Blind Panel OPX00
136B2084
Control panel cable 2.5m
136B2085
Control panel cable 5 m
136B2086
Control panel cable 10 m
136B3128
Control Panel 2.8 OPX20
136B1567
Relay option OC7R0
136B1568
General Purpose IO OC7C0
132N6503
OF7P2-S-AF-46-95A0-060-05-T1-E20
132N6811
OF7P2-S-AF-40-103A-050-05-T1-E20
130R1140
DrivePro ExWarr Work Shop PG05 24 Month
130R1141
DrivePro ExWarr Work Shop PG05 30 Month
130R1142
DrivePro ExWarr Work Shop PG05 36 Month
130R1144
DrivePro ExWarr Work Shop PG05 48 Month
130R1145
DrivePro ExWarr Work Shop PG05 54 Month
130R1143
DrivePro ExWarr Work Shop PG05 42 Month
130R1147
DrivePro ExWarr Work Shop PG05 66 Month
130R1148
DrivePro ExWarr Work Shop PG05 72 Month
130R1146
DrivePro ExWarr Work Shop PG05 60 Month
130R1044
DrivePro ExWarr Onsite PG05 48 Months
