137U4094

Part Number: 137U4094
137U4094
Manufacturer
Danfoss
Part number
137U4094
Category

Product Information

Extended Description

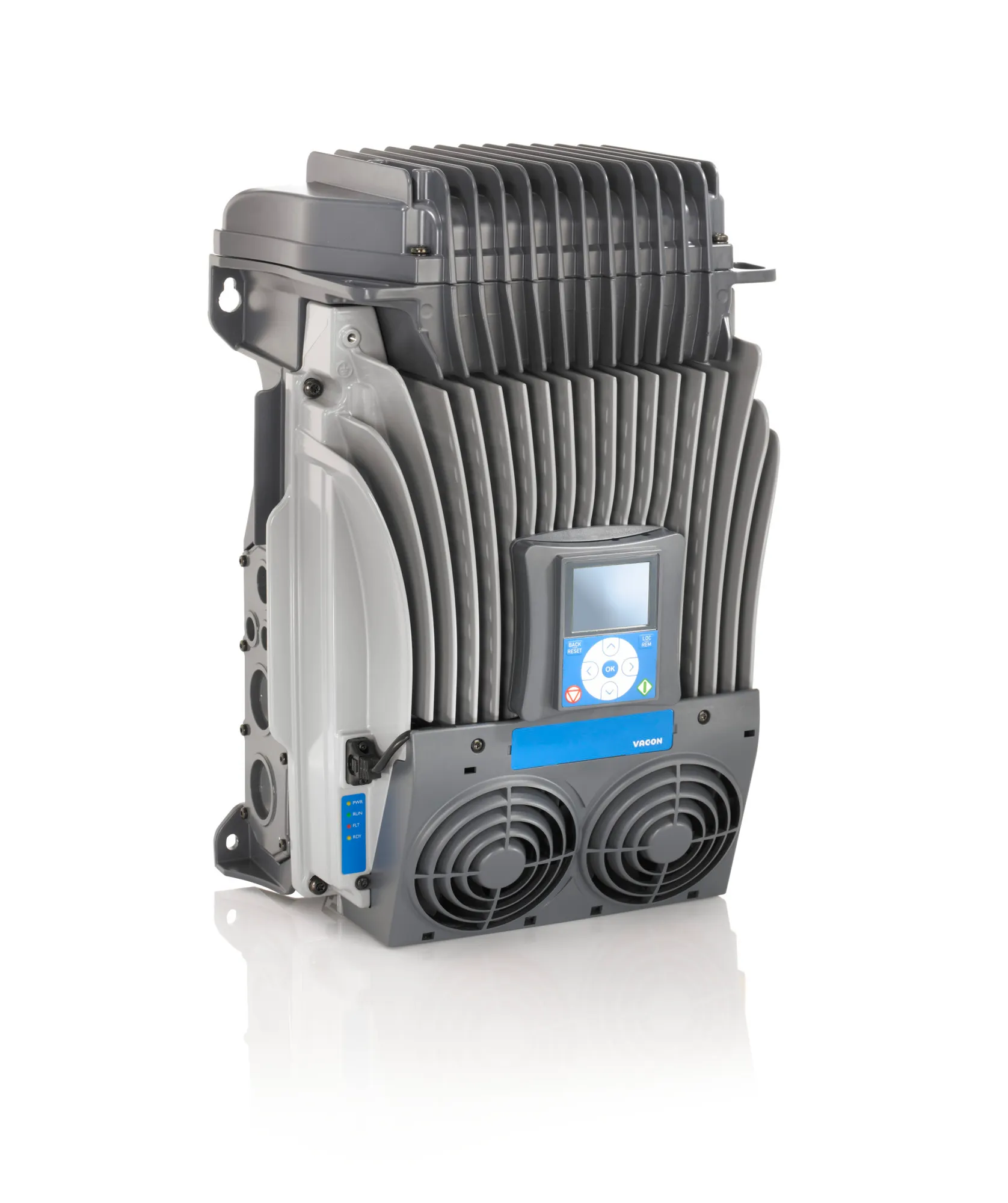

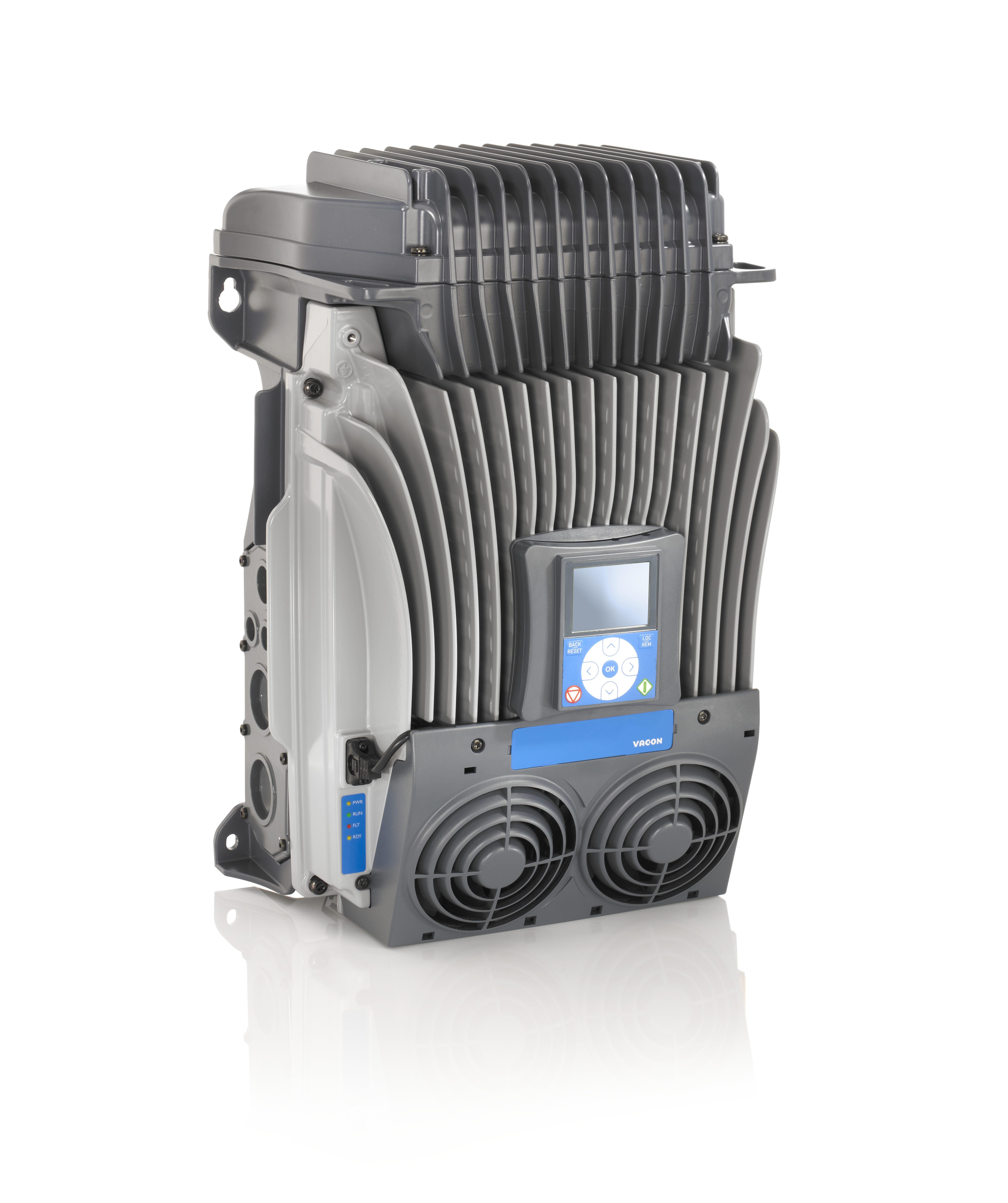

137U4094 Danfoss: VACON0100-3L-0072-5-X+EMC4+A1133+FBIE+HMGRVACON=C2=AE 100X72 AMP, (-5) 380 =E2=80=93 500 Vac(+DBIN) Brake Chopper, (+LS50) 50 HzC4 System ComponentIndEth (ProfinetIO,EthernetIP), Graphical KeypadD Slot: No boardE Slot: No boardOther options according to Model code
Gross weight
33.85 kg
Net weight
31.5 kg
Volume
1.016 hl
EAN
5715253725062
Product View (Switch)
GLBL : Global (Standard)
Product Group
VACON : VACON
Product Series
0100 : VACON 100
Input type
-3L : -3L
Current
-0072 : 72
Current Description
72 AMP
Mains Voltage
-5 : (-5) 380 =E2=80=93 500 Vac
Segment
-X : Vacon 100X
Regional
-R00 : International
Customized
+BM1X : Vacon0100 product
Terminal Box
+TBOX : (+TBOX) Basic Terminal Box
Brake
+DBIN : (+DBIN) Brake Chopper
Frequency setting
+LS50 : (+LS50) 50 Hz
Display Units
+LSSI : Metric Units of Measure
Documentation level
+DQCK : (+DQCK) Quick Guide
Firmware Language Pack
+FL01 : UK, DE, FI, SE, IT, FR lang
SW Package
+F0072 : (+F0072) GP System Software
EMC level
+EMC4 : C4 System Component
Marine Approval
+E000 : (+E000) No Marine Approval
Application
+A1133 : (+A1133)Special Application(W)
Internal FB selection
+FBIE : IndEth (ProfinetIO,EthernetIP)
Keypad
+HMGR : Graphical Keypad
Real Time Clock Battery
+SRNO : No Battery for real time clock
D Slot Option Board
+SD00 : No board
E Slot Option Board
+SE00 : No board
Additional Equipment A
+Q000 : (+Q000) No add. Equipment A
Additional Equipment B
+Q000 : (+Q000) No add. Equipment B
Additional Equipment C
+Q000 : No add. Equipment C
Shipping Package
+GSCB : Standard Packaging Material
UL Approval
+GAUL : (+GAUL) UL Approval
CE Aproval
+GACE : (+GACE) CE Approval
C-tick Approval
+GACT : (+GACT) C-Tick Approval
KC Approval
+GAKC : (+GAKC) KC Approval
Frame Size
MM6 : MM 06
Product Catalog
NO_VIEW : NO VIEW
Modelcode01
VACON0100-3L-0072-5-X
Modelcode03
+EMC4
Modelcode04
+A1133+FBIE+HMGR
Typecode Part 1
VA100X-3L-0072-5-X+BM1X
Typecode Part 2
-000145088
Calculated Net Weight [kg]
31.5
Calculated Gross Weight [kg]
33.85
Dimensions WxHxD [mm]
350X500X236
Plant from Orderline
C503
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN US
3A999.a
ECCN EU
Y901
Help Counter
1
141F3478
V100X MC05 Control Unit assembly +F0072
141F6355
Measurement Board for V100X
141F3486
V100X control 10 x accessory bag
141F3489
V100X MM06 accessory bag (10pcs)
141F3492
V100X MM06 3 x cable gland spare part
141F3497
V100X MM04 packaging EPP
141F3498
V100X MM05 packaging EPP
141F3499
V100X MM06 10 x packaging
141F3512
V100X MM04 power terminal block
141F3513
Power terminal block V100X MM05
181B0482
Vacon100 MM6 Main Switch Option
181B0483
CAB-HMI2M-MC05-X
181B0481
Vacon100 MM6 Motor Mount Flange
141F4234
Vacon100 MM6 Auxiliary Frame Heater
141F4176
VACON-PAN-HMGR-MC05-X
141F4278
RTC battery kit 10pcs, OP
141F4222
MC05, MC06 Keypad Wallmounting Kit
130R1030
DrivePro ExWarr Onsite PG04 24 Months
VACON=C2=AE 100 FLOW Application Guide VACON=C2=AE 100 HVAC Application Manual VACON=C2=AE 100 INDUSTRIAL Application Guide VACON=C2=AE 100 Solar Pump Application Guide VACON 100 X and VACON 20 X Selection Guide VACON 100 X Quick Guide VACON=C2=AE 100 BACnet Installation Manual VACON=C2=AE 100 Ethernet IP Installation Man. VACON=C2=AE 100 Marine Installation Guide VACON=C2=AE 100 Profinet IO Inst. Manual Danfoss EU-UK 00736962 D1 T=C3=9CV 01 205 5219.03-20 BV 43073 B0 BV BV 47562-B0 BV DNV GL TAE00000Y0 Rev. 2 LR21105512TA NKK TA20165M VACON_MM6_D MCAD VACON 100X MM6 IP66 VACON0100-3L-0072-5-X VACON=C2=AE 100 INDUSTRIAL Firmware VACON=C2=AE 100 FLOW Firmware VACON=C2=AE OPT-E7 DeviceNet Firmware VACON=C2=AE OPT-EC EtherCAT Firmware VACON=C2=AE 100 SIMATIC PDM PROFINET IO EDD VACON=C2=AE OPTE3/E5 PROFIBUS GSD VACON=C2=AE OPTE6 CANopen EDS VACON=C2=AE OPTE7 DeviceNet EDS VACON=C2=AE OPTE9 EtherNet/IP EDS VACON=C2=AE OPTE9 PROFINET IO GSDML
