137U4114

Part Number: 137U4114
137U4114
Manufacturer
Danfoss
Part number
137U4114
Category

Product Information

Extended Description

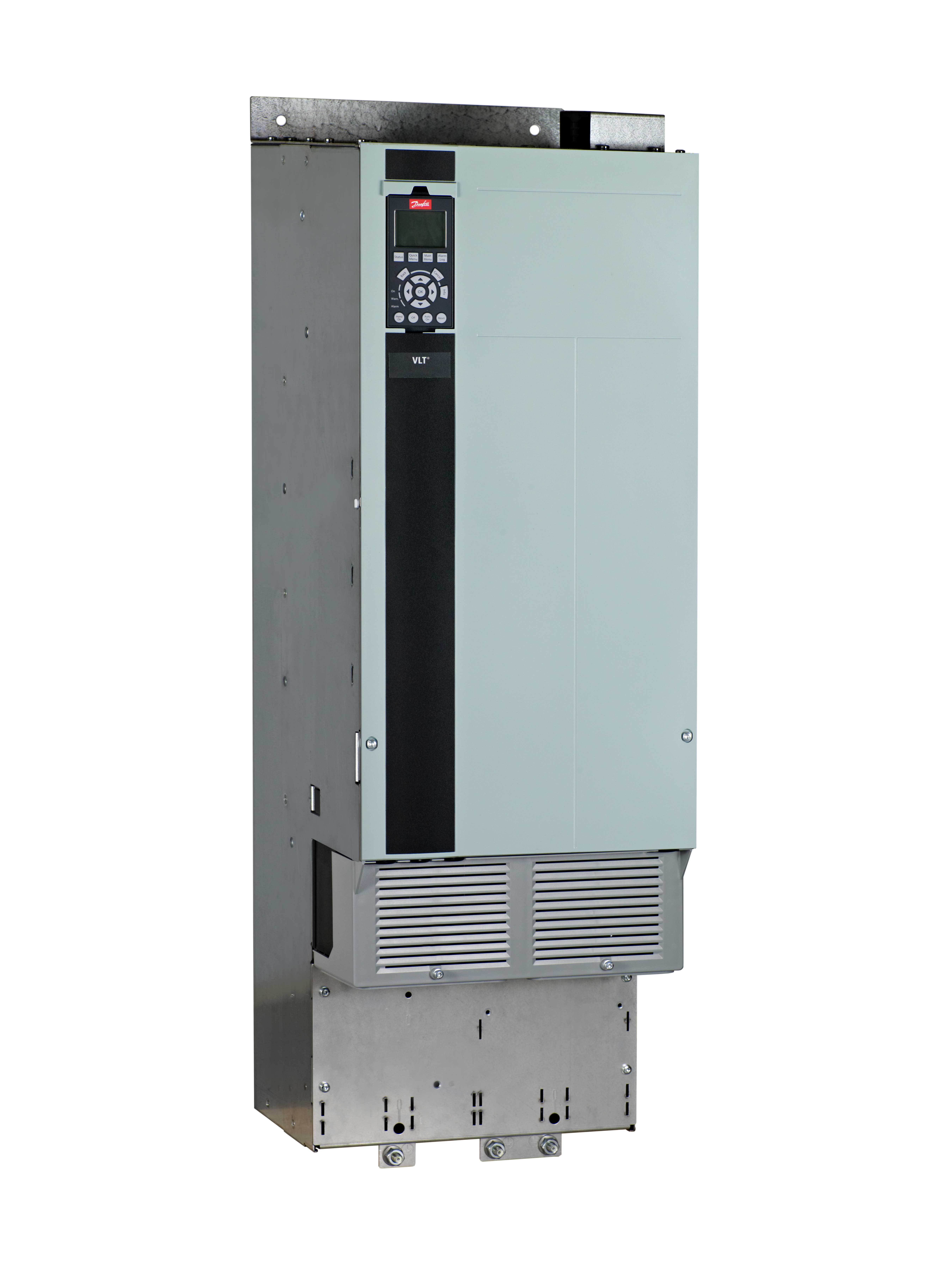

137U4114 Danfoss: Frequency ConverterFC-102N160T4E20H2UGCXXXSXXXXALBXCXXXXD0VLT=C2=AE HVAC Drive FC-102(N160) 160 KW / 250 HP, Three phase380 - 480 VAC, (E20) IP20 / ChassisRFI FilterBrake chopper + Safe stopGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: D3HNo C1 option, MCB-107 24V DC backupPROFINET MCA 120, No B OptionOther options according to Model Code
Gross weight
62.3 kg
Net weight
62 kg
Volume
0 l
EAN
5715253725260
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE HVAC Drive FC-
Series
102 : 102
Power Rating
N160 : (N160) 160 KW / 250 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H2 : RFI Filter
Brake - Safe Stop
U : Brake chopper + Safe stop
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
SXXX : Latest release std. SW.
Software Language Pack
X : Standard Language Pack
A Option
AL : PROFINET MCA 120
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
X : No C1 option
C Option Software
XX : No software option
D Option
D0 : MCB-107 24V DC backup
Frame Size
D3H : D3H
Product Catalog
GLBL : Global (Standard)
Typecode Part 1
FC-102N160T4E20H2UGC
Typecode Part 2
XXXSXXXXALBXCXXXXD0
Power 110% (NO) [KW]
160
Height [mm]
909,0
Height w/ Regen/Loadshare [mm]
1004,0
Width w/ no C options [mm]
250,0
Depth [mm]
375,0
Depth with Option A/B [mm]
375,0
kVA
218
Power Loss NO [W]
3764
Continuous Current (NO) [A]
315
Intermittent Current (NO) [A]
346
Calculated Gross Weight [kg]
62.3
Calculated Net Weight [kg]
62
ECCN EU
Y901
ECCN US
3A999.a
Plant from Orderline
D801
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-102N160T4E20H2UGC
Modelcode02
XXXSXXXXALBXCXXXXD0
176F3627
Cooling Kit, in btm/ out top, 1800, D3h
176F3625
Cooling Kit, in back/ out back, D3h
176F3633
Cooling Kit, in back/out back, D3h
176F3629
Cooling Kit, in btm/out top, 2000mm, D3h
176F3409
Adapter Plate, D1h/D3h
130B1243
VLT=C2=AE Analog I/O Option MCB 109, coated
130B1170
LCP Panel Mounting Kit
130B1212
VLT=C2=AE General Purpose I/O MCB 101, ctd
130B1210
VLT=C2=AE Relay Option MCB 105, coated
130B1135
VLT=C2=AE PROFINET MCA 120, uncoated
130R1153
DrivePro ExWarr Work Shop PG06 42 Month
130R1156
DrivePro ExWarr Work Shop PG06 60 Month
130R1152
DrivePro ExWarr Work Shop PG06 36 Month
130R1154
DrivePro ExWarr Work Shop PG06 48 Month
130R1155
DrivePro ExWarr Work Shop PG06 54 Month
130R1151
DrivePro ExWarr Work Shop PG06 30 Month
130R1150
DrivePro ExWarr Work Shop PG06 24 Month
130R1157
DrivePro ExWarr Work Shop PG06 66 Month
130R1158
DrivePro ExWarr Work Shop PG06 72 Month
130R1057
DrivePro ExWarr Onsite PG06 66 Months
