137U5614

Part Number: 137U5614
137U5614
Manufacturer
Danfoss
Part number
137U5614
Category

Product Information

Extended Description

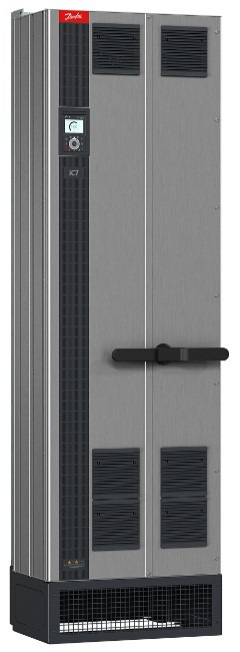

137U5614 Danfoss: iC7-AutomationFrequency converter,air-cooledIC7-60FA3N05-799AE54F3+AGCX+AJFD+BAPR+BDBA+BEF1+BF20+DAAUIP54/UL Type 12, Frame: FB113~, 380-500 V AC,799 AEMC category: C3 categoryControl Panel 2.8 OPX20Standard I/O: 4xDI, 2xDI/O, 2xAI, 1xAO, 2xROPROFINET RT OS7PRFunctional Safety: STO, not upgradableOther options according to model code
Gross weight
267.21 kg
Net weight
217.1 kg
Volume
0 l
EAN
5715253740652
Help Counter
1
Typecode Part 1
7FC-AUFA3N05-799AE54F3
Typecode Part 2
-000147049
Calculated Gross Weight [kg]
267.21
Calculated Net Weight [kg]
217.1
Vendor
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
Product series
+DAAU : iC7-Automation
Product group
IC7-60 : iC7-60
Product category
FA : Frequency converter,air-cooled
Product type
3N : 3~
Mains voltage
05 : 380-500 V AC
Current rating
-799A : 799 A
Power rating
450 : 450 kW/600 hp
Protection rating
E54 : IP54/UL Type 12
EMC category
F3 : C3 category
Cable entry and EMC plate
+AAST : Standard plate
Integrated brake chopper
+ACXX : None
Extra environmental protection
+AGCX : Coated boards
Humidity protection device
+AHXX : None
Mains input device
+AJFD : AC fuses and mains switch
DC terminals
+ALXX : None
Touch protection
+AMXX : None
Heat sink access panel
+APXX : None
Communication interface, X1/X2
+BAPR : PROFINET RT OS7PR
Standard I/O
+BDBA : 4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO
Functional safety
+BEF1 : STO, not upgradable
Control panel
+BF20 : Control Panel 2.8 OPX20
Interface board
+BISR : MicroSD card reader and RTC
Option slot A
+CAX0 : None
Option slot B
+CBXX : None, not upgradable
Option slot C
+CCX0 : None
Option slot D
+CDX0 : None
Option Slot E
+CEX0 : None
Product software ID
+ECXXX : Latest released version
Technical documentation
+EGIN : Installation guide
Integrated common-mode filter
+AIXX : None
Communication interface, X0
+BBEL : Ethernet port, no protocol
Customer specific application
+DBXX : None
Additional drive features 1
+DD1X : None
Additional drive features 2
+DE2X : None
Additional drive features 3
+DF3X : None
Additional drive features 4
+DG4X : None
Additional drive features 5
+DH5X : None
High speed enabled
+DI6X : No
Customization file package ID
+EAXXXXXX : No customization
Customer-specific label
+EJXX : None
Language package
+EL01 : Global
Product specific marine cert.
+VBXX : None
Frame designation
FB11 : FB11
Modelcode01
IC7-60FA3N05-799AE54F3
Modelcode02
+AGCX+AJFD
Modelcode03
+BAPR+BDBA
Modelcode04
+BEF1+BF20
Modelcode05
+DAAU
Product Catalog
NO_VIEW : NO VIEW
Efficiency class-Relative loss
IE2 - 1.85%
Maximum Power Loss LO [W]
9339
Enclosure rating
IP54 / TYPE 12
Input frequency
50/60Hz
Output frequency
0-590Hz
Input current in Normal Overlo
769/703A
Short circuit current rating
100kA
Ambient temp. high overload
45=C2=B0C/113=C2=B0F
Ambient temp. normal overload
40=C2=B0C/104=C2=B0F
Input Voltage
3x380-500V
Typical motor power PL (110%)
450KW(400V)/600HP(460V)
Typical motor power PH (150%)
400KW(400V)/550HP(460V)
Continous current IL (1/10min)
799/730A
Continous current IH (1/10min)
695/653A
Continous current IH (1/5min)
658/590A
Main unit Width
602
Main unit Height
2043
Main unit Depth
513
Product View (Switch)
GLBL : Global (Standard)
176F3353
Door filter,D1h-D8h,E1h-E4h,Fx09-12
176F6659
Busbar, current sensor, E1h, E3h, Fx11
176F6672
INSUL,PLAS,PC,GD,PCA,SUPPORT,P4001
176F6673
Busbar, IGBT AC output E1h, E3h, Fx11
176F6647
Rectifier SCR/Diode 700A 1600V
176F6689
Busbar terminal, E1h=E2=80=93E4h, Fx11-12
176F6686
Terminal suppt mains, motor E1h=E2=80=93E4h
176F6682
Busbar/insulator set 500V E1h,E3h,Fx11
176F6680
Busbar, SCR AC input, E1h,E3h, Fx11
176F6677
Insul, plastic, active inrush, E1h=E2=80=93E4h
176F4044
400mm Pedestal kit, FK11/FB11
136B1569
Encoder/Resolver Option OC7M0
136B2055
Blind Panel OPX00
136B2084
Control panel cable 2.5m
136B2085
Control panel cable 5 m
136B2086
Control panel cable 10 m
136B3128
Control Panel 2.8 OPX20
136B1567
Relay option OC7R0
136B1568
General Purpose IO OC7C0
132N9614
OF7P2-S-AF-46-380A-060-05-T1-E20
130R1167
DrivePro ExWarr Work Shop PG07 66 Month
130R1162
DrivePro ExWarr Work Shop PG07 36 Month
130R1164
DrivePro ExWarr Work Shop PG07 48 Month
130R1163
DrivePro ExWarr Work Shop PG07 42 Month
130R1165
DrivePro ExWarr Work Shop PG07 54 Month
130R1166
DrivePro ExWarr Work Shop PG07 60 Month
130R1168
DrivePro ExWarr Work Shop PG07 72 Month
130R1160
DrivePro ExWarr Work Shop PG07 24 Month
130R1161
DrivePro ExWarr Work Shop PG07 30 Month
130R1068
DrivePro ExWarr Onsite PG07 72 Months
