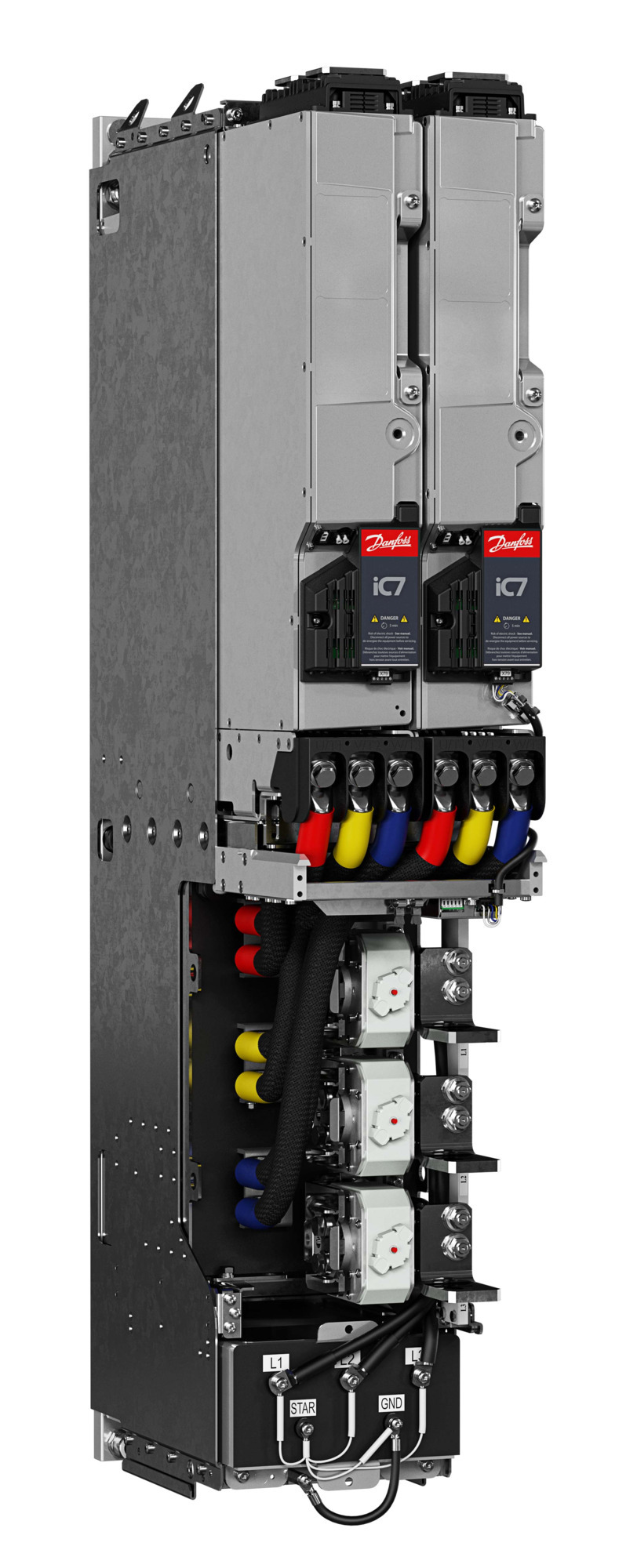

Extended Description

137U6553 Danfoss: iC7-HybridSystem module, liquid-cooledIC7-60SLGC07-3900E00F4+AEZ1+AJFX+ANN1+AO20+BAMT+BDC1+BEXX+BF20+BGK1+BH15+BK15+BL15+CAV0+DAHY+EGIN+EHEN+VBDNIP00/Open Type, Frame: 6xAR12LGrid converter module, GC, 525-690 V AC / 640-1100 V DC, 3900 AEMC category: C4 categoryControl Panel 2.8 OPX20Standard I/O: I/O and Relay Option OC7C1Modbus TCP OS7MTFunctional Safety: None, not upgradableOther options according to model code
Gross weight
1632 kg
Net weight
1380 kg
Volume
0 l
EAN
5715253750514
Help Counter
1
Typecode Part 1
7SM-HYSLGC07-3900E00F4
Typecode Part 2
-000151678
Calculated Gross Weight [kg]
1632
Calculated Net Weight [kg]
1380
Vendor
ERR01 : Cannot Determine Vendor
Product series
+DAHY : iC7-Hybrid
Product group
IC7-60 : iC7-60
Product category
SL : System module, liquid-cooled
Product type
GC : Grid converter module, GC
Mains voltage
07 : 525-690 V AC / 640-1100 V DC
Current rating
-3900 : 3900 A
Power rating
XXX : Not relevant
Protection rating
E00 : IP00/Open Type
EMC category
F4 : C4 category
Integration unit
+AEZ1 : Standard, with LC filter
Mains input device
+AJFX : AC fuses
DC fuses and devices
+AKXX : None
Cooling circuit connector type
+ANN1 : Push-in connection
Cooling circuit hose length
+AO20 : 2.0 m (6 ft)
Marine construction
+AFXX : None
Extra environmental protection
+AGCX : Coated boards
Communication interface, X1/X2
+BAMT : Modbus TCP OS7MT
Communication interface, X0
+BBEL : Ethernet port, no protocol
Standard I/O
+BDC1 : I/O and Relay Option OC7C1
Functional safety
+BEXX : None, not upgradable
Control panel
+BF20 : Control Panel 2.8 OPX20
Control panel mounting type
+BGK1 : Flush mount
Control panel cable length
+BH15 : 1.5 m (5 ft)
Control unit cable length
+BK15 : 1.5 m (5 ft), Fiber
StarCoupler board cable length
+BL15 : 1.5 m (5 ft), Fiber
Option slot A
+CAV0 : Voltage Measurement OC7V0
Option slot B
+CBXX : None, without mounting plate
Option slot C
+CCXX : None, without mounting plate
Option slot D
+CDXX : None, without mounting plate
Option slot E
+CEXX : None, without mounting plate
Option slot F
+CFXX : None, without mounting plate
Option slot G
+CGXX : None, without mounting plate
Option slot H
+CHXX : None, without mounting plate
Option slot I
+CIXX : None, without mounting plate
Option slot J
+CJXX : None, without mounting plate
Language package
+EL01 : Global
Customer specific application
+DBXX : None
Additional drive features 1
+DD1X : None
Additional drive features 2
+DE2X : None
Additional drive features 3
+DF3X : None
Additional drive features 4
+DG4X : None
Additional drive features 5
+DH5X : None
High speed enabled
+DI6X : No
Customization file package ID
+EAXXXXXX : No customization
Product software ID
+ECXXX : Latest released version
Technical documentation
+EGIN : Installation guide
Documentation language
+EHEN : English
Customer-specific label
+EJXX : None
Shipping package
+TACB : Cardboard box package
Product specific marine cert.
+VBDN : DNV
Frame designation
6XAR12L : 6xAR12L
Modelcode01
IC7-60SLGC07-3900E00F4
Modelcode02
+AEZ1+AJFX+ANN1
Modelcode03
+AO20+BAMT+BDC1+BEXX+BF20
Modelcode04
+BGK1+BH15+BK15+BL15+CAV0
Modelcode06
+DAHY
Modelcode08
+EGIN+EHEN
Modelcode09
+VBDN
Product Catalog
NO_VIEW : NO VIEW
check if complete
OK
Cooling type
Liquid Cooled
Enclosure rating
IP00 / OPEN TYPE
Input frequency
50/60Hz
Output frequency
25-70Hz
Short circuit current rating
100kA
Liquid temp. High Overload
45=C2=B0C/113=C2=B0F
Liquid temp. Low Overload
45=C2=B0C/113=C2=B0F
Liquid temp. Nominal load
45=C2=B0C/113=C2=B0F
AC voltage
3X525-690VAC
DC Bus voltage
640-1100VDC
Storage temperature
-40...70=C2=B0C/-40...158=C2=B0F
Nominal AC current
3982A
DC Bus current
4551A(1025VDC)
Apparent power
4759KVA(690VAC)
DC power
4663KW(1025VDC)
Main unit Width
6X235MM/9.3IN
Main unit Depth
566MM/22.3IN
Main unit Height
1295MM/51IN
Product Type - DrivesSymbol
Grid converter module
Product Category -DrivesSymbol
System module, liquid-cooled
ECCN EU
Y901
ECCN US
3A999.a
Product View (Switch)
GLBL : Global (Standard)
Salescode part 1
IC7-60SLGC07-3900E00F4
Salescode part 2
+AEZ1+AJFX+ANN1
Salescode part 3
+AO20+BAMT+BDC1+BEXX+BF20
Salescode part 4
+BGK1+BH15+BK15+BL15+CAV0
Salescode part 5
+DAHY
Salescode part 6
+EGIN+EHEN
Salescode part 7
+VBDN
181B5476
Fuse 1200VAC 900A aR Size73 Type TTF
181B5477
Fuse 750VAC 1200A aR Size44 Type TTF
181B5888
DrivePro Gateway Medium
181B5905
Control unit w/o safety interface board
181B5939
LC/LC Duplex multimode cable 52cm
181B5950
Thermal paste Wacker P12, 90ML
181B5953
Fuse AC busbars and fastenings for AR12L
181B5952
Fuse AC busbars and fastenings for AR10L
181B5998
Duplex optical fiber with LC-plugs 1.5m
181B6003
Duplex optical fiber with LC-plugs 7.5m
181B5991
iC7 AFE/GC pre-charging unit 20 IEC
181B5990
iC7 AFE/GC pre-charging unit 10 IEC
181B5992
iC7 AFE/GC pre-charging unit 30 IEC
181B6066
iC7 AFE/GC pre-charging unit 20 UL
181B6065
iC7 AFE/GC pre-charging unit 10 UL
181B6067
iC7 AFE/GC pre-charging unit 30 UL
181B6068
iC7 Optical fiber cable 0,3m
181B6069
iC7 Optical fiber cable 1,5m
181B6070
iC7 Optical fiber cable 2,5m
181B6071
iC7 Optical fiber cable 5m
