140F0929

Part Number: 140F0929
140F0929
Manufacturer
Danfoss
Part number
140F0929
Category

Product Information

Extended Description

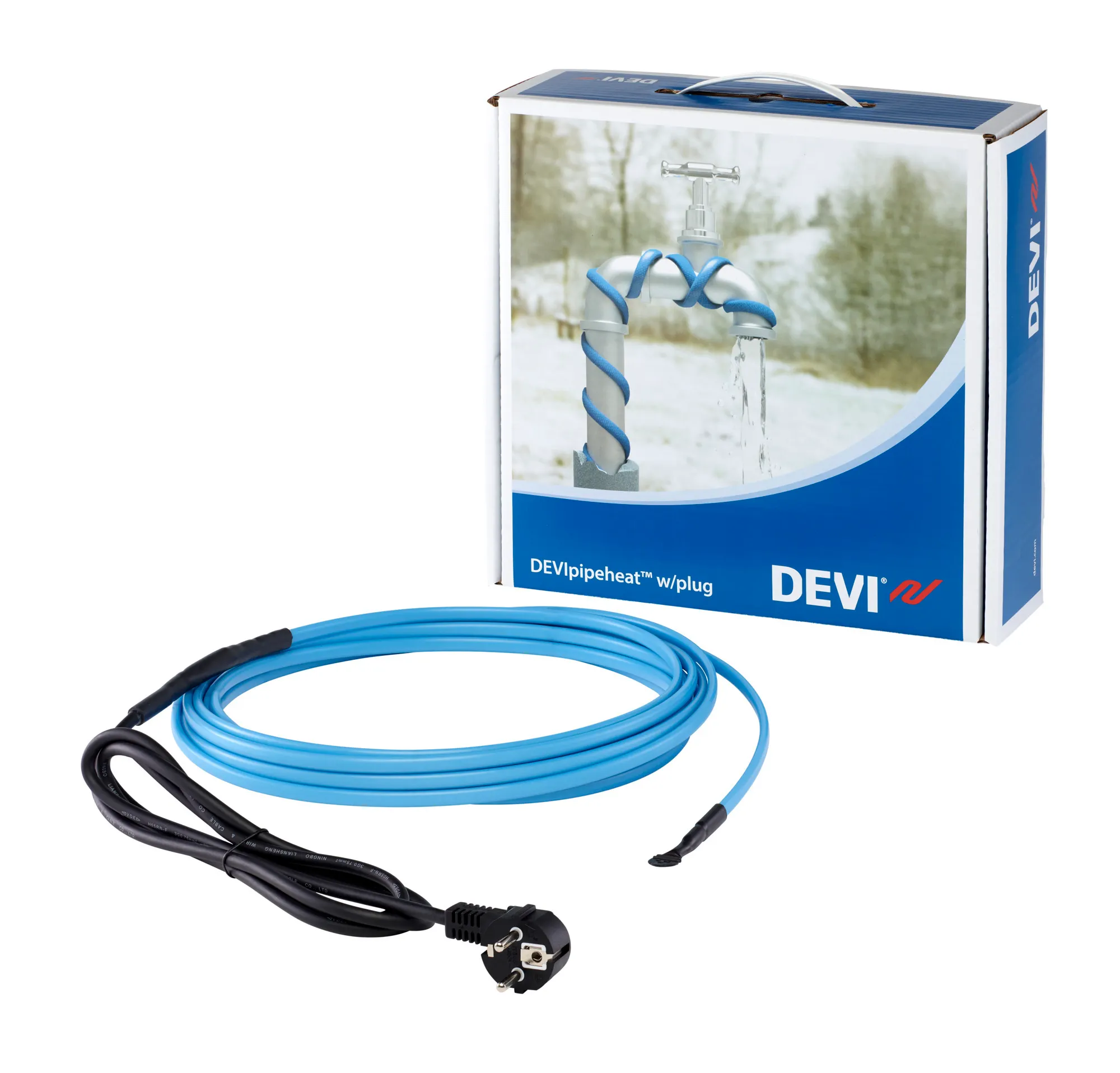

140F0929 Danfoss: Cable type: Twin conductor, Product version: Ready-made, Heating principle: Self-limiting, Application: Pipe / tank frost protection
Gross weight
1.74 Kilogram
Net weight
1.536 Kilogram
Volume
9.147 Liter
EAN
5703466249871
Application
Pipe / tank frost protection
Approval
CE,KIWA
Bending diameter [mm] [Min]
50 mm
Cable height [mm]
5.2 mm
Cable length [m]
19 m
Cable on drum
No
Cable output [W/m@=C2=B0C]
10W/m@10=C2=B0C
Cable output [W@=C2=B0C]
190W@10=C2=B0C
Cable screen
Alufoil 100%
Cable type
Twin conductor
Cable width [mm]
8.75 mm
CE evaluated
Yes
Certification company
NEMKO,CE,EAC
China RoHS compliance
Out of scope
Cold lead
Yes
Cold lead conductor quantity
3
Cold lead length [m]
2 m
Cold lead quantity
1
Conductor insulation
TPE
Conductor type
Tinned copper
Contain batteries
No
Cut to length
No
Description
DEVIpipeheat=E2=84=A2 10 V3 19m 230V RM plug
EEE category
5 small equipment (any external dimension 50 cm)
Element IP Class
67
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Heating principle
Self-limiting
In scope of WEEE
Yes
Installation temperature [=C2=B0C] [Min]
-5 =C2=B0C
Non operating temperature [=C2=B0C] [Max]
65 =C2=B0C
Operating temperature [=C2=B0C] [max]
65 =C2=B0C
Outer sheath
HDPE,PVDF
Outer sheath colour
Light blue
Product group
Heating Cables
Product version
Ready-made
REACH Candidate List substances
No
Supply voltage [V] AC
230 V
Type
DEVIpipeheat=E2=84=A2 10 V3 readym.
UK RoHS compliance
Yes
UL evaluated
Out of scope
UNSPSC CODE
40101830
Warranty [Year]
5
Warranty type
5-year product warranty
140F0954
Accessories, Connection kits self-limiting cables
140F0955
Accessories, Connection kits self-limiting cables
140F0956
Accessories, Connection kits self-limiting cables
19400167
Accessories, Connection kits resistive cables
19805076
Accessories, Easy Installation
DEVIpipeheat=E2=84=A2 10 V3 Ready-made self-limiting cable DEVIpipeheat=E2=84=A2 10 V3 DEVI e-Warranty tool (User Guide) DEVI Product Warranty Process CB NO118705 Danfoss EU-UK VCHQD102.06 FIMKO FI/41260 Nemko P21225608 Heating Cables KIWA TG 1747 Heating Cables, DEVIpipeheat Heating Cables, DEVIpipeheat Heating Cables, DEVIpipeheat Heating Cables, DEVIpipeheat Danfoss Devi Pipeheat=E2=84=A2 on-pipe frost protection of drinking water pipes DEVI Electrical Heating Cables and Mats_RVT
